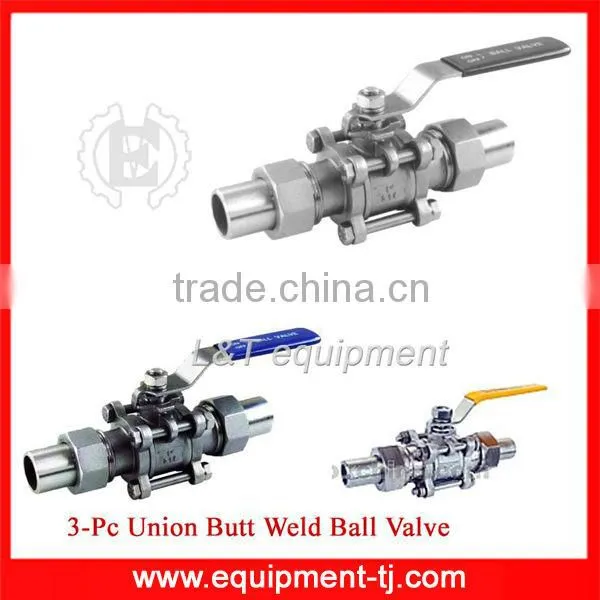

Help Center3 Pc Butt Weld Ball Valve
US$ 1 - 30
MOQ: 1000 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1PC Screwed Ball Valve With Mounting PadUS$ 1 - 30MOQ: 100 Sets -
Three Ways Ball ValveUS$ 1 - 50MOQ: 100000 Pieces
-
2 Pieces German/American Standard Flanged Ball ValveUS$ 1 - 50MOQ: 100000 Pieces
-
2 Pieces Ball Valve -IIIUS$ 1 - 50MOQ: 100000 Pieces
-
2 Pieces Ball Valve -IIUS$ 1 - 50MOQ: 100000 Pieces
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Manual
Material
Stainless Steel
Temperature of Media
Medium Temperature
Media
Oil
Port Size
1/4-4"
Place of Origin
Tianjin, China
Model Number
3 Pc Unit Butt Weld Ball Valve
Brand Name
LT
Specifications
3 Pc Butt Weld Ball Valve3 Pc Unit Butt Weld Ball Valve
Material List
Item |
Designation |
Material |
1 |
Handle Sleeve |
PVC |
2 |
Handle |
304 |
3 |
Gland Nut |
304 |
4 |
Stem Nut |
304 |
5 |
Spring Washer |
304 |
6 |
Pring |
PTFE |
7 |
Stem Seal |
PTFE |
8 |
Body Seal |
PTFE |
9 |
Cap |
CF8/CF8M |
10 |
Bolt |
304 |
11 |
Nut |
304 |
12 |
Thrust Washer |
304 |
13 |
Body |
CF8/CF8M |
14 |
Ball Seat |
R-PTFE |
15 |
Ball |
CF8/CF8M |
16 |
Stem |
316 |
17 |
Nut |
CF8/CF8M |
18 |
Sleeve |
CF8/CF8M |
19 |
Locking |
304 |
Dimension Table
Item/Size |
1/4" |
3/8" |
1/2" |
3/4" |
1" |
1 1/4" |
1 1/2" |
2" |
2 1/2" |
3" |
d |
12.5 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
65 |
80 |
L |
165 |
165 |
178 |
198 |
224 |
229 |
249 |
300 |
338 |
364 |
H |
42 |
42 |
49 |
52 |
62 |
66 |
77 |
85 |
139 |
150 |
W |
98 |
98 |
115 |
115 |
143 |
143 |
178 |
178 |
250 |
250 |
