self-surporting amp outdoor network cable cat5e 2 pairs

Specifications

1.payment :L/C.T/T,other payment
2.high standrad ISO 9001-2000
3.factory price
4.OEM is ok
nductor is cooper solid

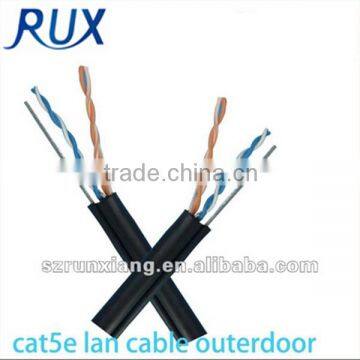

    self-surporting amp outdoor network cable cat5e 2 pairs

The cross section of the cat5e outerdoor cable :



the instrution of the cable
pairs :	2 pair				thickness of ouer jacktet	0.7+/-0.05mm
pairs :	2 pair				Min thickness	0.6mm
conductor material	BC-bare copper				outer diameter	Φ 5.20-Φ 2.40/±0.30 mm
outer jacket material	LDPE				wire gage	24AWG
color of jacket	black				zinc-coated wire	Φ 0.90mm(Φ 0.30mm×7)
test item				unit	standard	test item		jacket
the single conductor DC resistance				Ω/100m	≤9.5	test material		LDPE
wire of DC resistance unbalance				%	≤2.5	use temperature rate		-40°Cto+60°C
the conductor dielectric intensity				kv/min	≤1.0	the cable weight		26 kg /km
the insulation DC resistance				MΩ·km	≥5000
the working capacitance				nF/100m	≤5.6	OEM is ok
the insulation wire do not mix the wire and the cores mixed wire				—	cores mixed wire wire break



Certification

We have the ISO9000 ISO9002 and Sira certification



Factory





Our service

1.We are professional manufacture of optical fiber cables in China.

2.OEM is accepted.

3.The cable size and material are customized,and your own logo or design are welcome.

4.We'll reply you in 12 hours after you send enquiry to us
