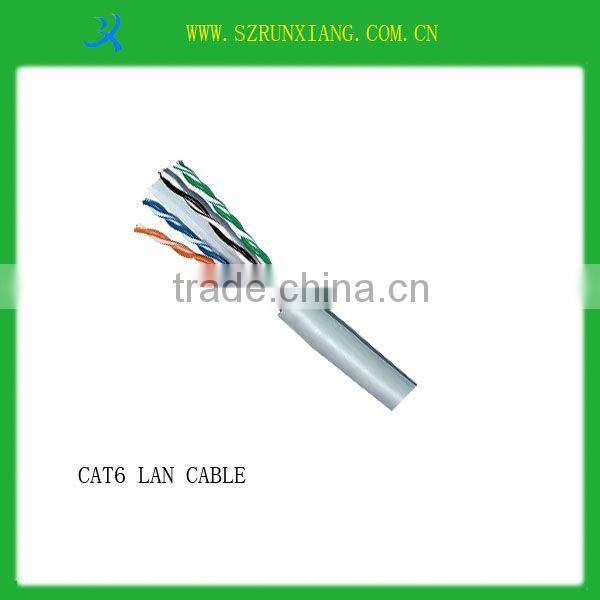

utp Cat6 lan cable

Specifications

1.23AWG BC CONDUCTOR
2.PE INSULATION
3.CAT6 UTP/FTP/SFTP LAN CABLE
4.ISO9001
5.PACKING :305M/BOX

CAT 6 LAN CABLE

DESCRIPTION

INDUSTRIAL STANDARDS:YD/T1019-2001,USA ANSI/TIA/EIA-568-B,WORLD WIDE ISO/IEC 11801-71156.

Conductor: Solid &Stranded soft circle twisted copper wire

Insulation : High-density Polythene(HDPE)

Jacket : Polyvinyl chloride (PVC),LSZH,PE.We can provide all kinds of colors according to customer's requirements.Rip wire (Optional)

Rating Temperature :75°C

Applications: ISDN,10BASE-T Ethernet(IEEE802..3),

100BASE-T -Ethernet(IEEE802..3),155MbpsATM,100Vg-AnyLAN(IEE802.12)TP-PMD(ANSI X3T9.5),16Mbps Token Ring(IEEE802.5),1000BASE-T -Ethernet(IEEE802..3ab).



SPECIFICATION

NO.	TYPE	CONDUCTOR		PAIRS NO.	SHIELD	MYLAR	DRAIN WIRE	JACKET
		AWG	NO./DIAMETER
			NO/MM
SZRXLD6U2301	UTP	23	1/0.57	4				PVC
SZRXLD6F2301	FTP	23	1/0.57	4	AL foil	PET	Solid tinned copper	PVC
SZRXLD6U2301	UTP	23	7/0.25	4				PVC
SZRXLF2301	FTP	23	7/0.25	4	AL foil	PET	Solid tinned copper	PVC
SZRXLF2301W	FTP(OUTDOOR)	23	1/0.57	4	AL foil	PET	Solid tinned copper	PE
SZRXLSF2301	SFTP	23	1/0.57	4	Braiding+AL foil	PET	Solid tinned copper	PVC
SZRXLSF2301	SFTP	23	7/0.25	4	Braiding+AL foil	PET	Solid tinned copper	PVC
