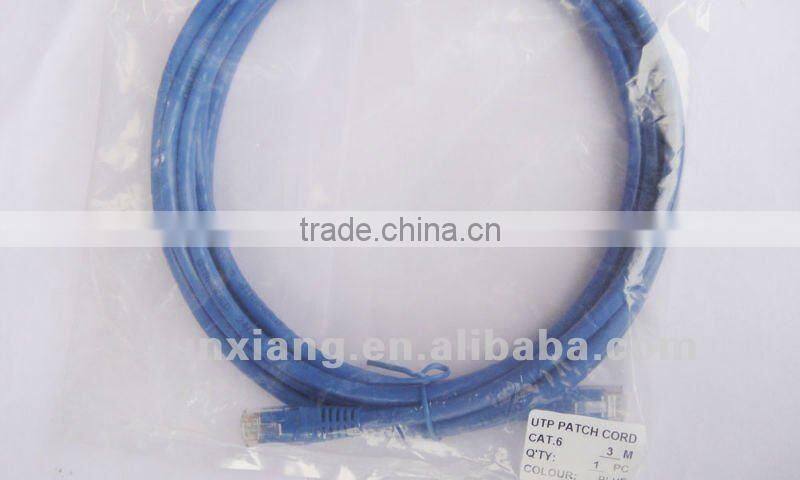

Cat6 Utp Color Code Cable in Telecommunication
CAT6 LAN CABLE
DESCRIPTION
Conductor: Solid &Stranded soft circle twisted copper wire
Insulation : High-density Polythene(HDPE)
Jacket : Polyvinyl chloride (PVC),LSZH,PE.We can provide all kinds of colors according to customer's requirements.Rip wire (Optional)
Rating Temperature :75°C
Applications: ISDN,10BASE-T Ethernet(IEEE802..3),100BASE-T -Ethern(IEEE802..3),155MbpsATM,100Vg-AnyLAN(IEE802.12)TP-PMD(ANSI X3T9.5),16Mbps Token Ring(IEEE802.5),1000BASE-T -Ethernet(IEEE802..3ab).
SPECIFICATION
NO. | TYPE | CONDUCTOR | PAIRS NO. | SHIELD | MYLAR | DRAIN WIRE | JACKET | |
AWG | NO./DIAMETER | |||||||
| NO/MM | |||||||
SZRXLD6U2301 | UTP | 23 | 1/0.57 | 4 |
|
|
| PVC |
SZRXLD6F2301 | FTP | 23 | 1/0.57 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXLD6U2301 | UTP | 23 | 7/0.25 | 4 |
|
|
| PVC |
SZRXLF2301 | FTP | 23 | 7/0.25 | 4 | AL foil | PET | Solid tinned copper | PVC |
SZRXLF2301W | FTP(OUTDOOR) | 23 | 1/0.57 | 4 | AL foil | PET | Solid tinned copper | PE |
SZRXLSF2301 | SFTP | 23 | 1/0.57 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
SZRXLSF2301 | SFTP | 23 | 7/0.25 | 4 | Braiding+AL foil | PET | Solid tinned copper | PVC |
