Product Name

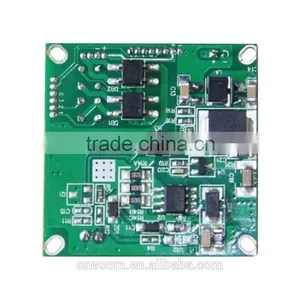

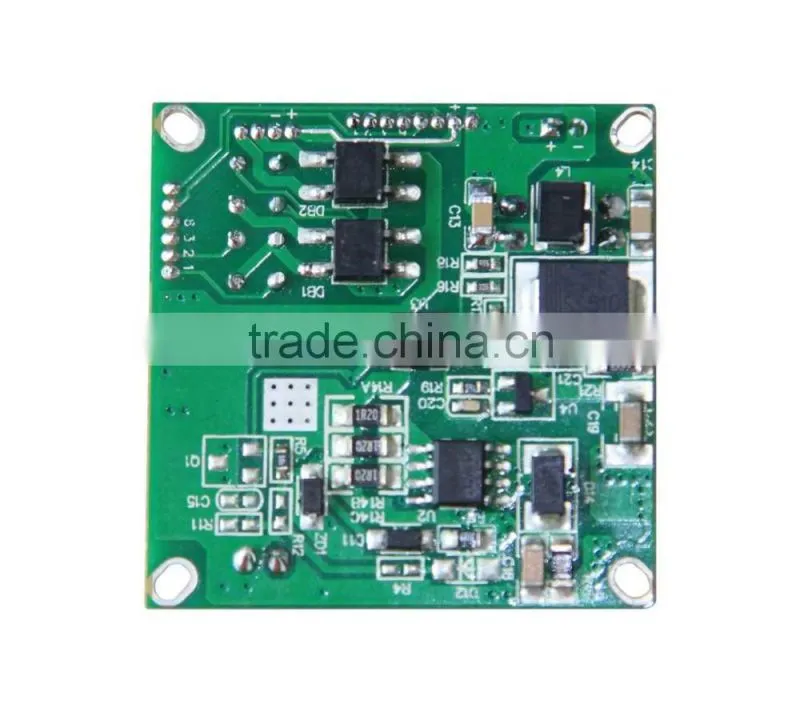

10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera
10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera
Feature
Feature
PoE Module - Special for IP Cameras, with segregate
Compatible with IEEE 802.3af Power over Ethernet standard
PoE port power can be up to 15.4W
Standard modular design, embedded PCB design special for network camera
2x 12V voltage output, can be customized 5V/9V/12VDC output
1236 and 4578 compatible power supply
Low heat design, safe and reliable, high stability
Dimension (L x W): 38X38(mm)
Order Information
Product Model: ONV-PD3001
Product Description: 10/100M PoE Module, DC 12V, IEEE 802.3af international standard, PoE port power can be up to 15.4W,with segregate
Ordering Note: Default PoE power supply type is end-span(45, 78 line pair), mid-span(12, 36 line pair) can be customized

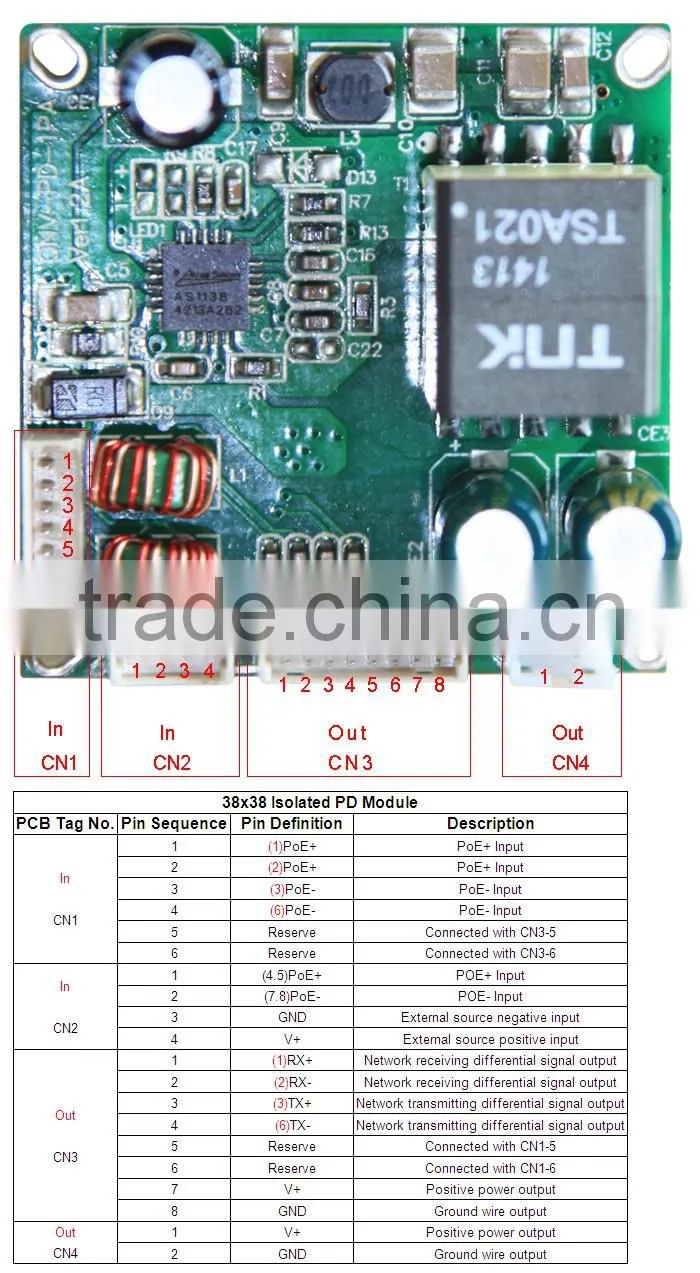

Product Size
38x38mm
Application
Order Information
Product Model: ONV-PD3001
Product Description: 10/100M PoE Module, DC 12V, IEEE 802.3af international standard, PoE port power can be up to 15.4W,with segregate
Ordering Note: Default PoE power supply type is end-span(45, 78 line pair), mid-span(12, 36 line pair) can be customized
Product Size
38x38mm
Packaging & Shipping
Step 1:
Material inspection & sampling test.
Step 2:
Sampling high temperature aging.
Step 3:
Sampling high and low temperature cycle test.
Step 4:
Assembly and functional testing.
Step 5:
Batch room temperature aging.
Step 6:
Batch welding and performance testing.
Step 7:
Outgoing quality control & Packaging.
Step 8:
Finished products storage and delivery.
For delivery, you could choose our cooperative forwarder or your own agent forwarder. Thanks.
Our services
We offer lifetime after sales services for all our PoE switches, PoE splitter, PoE injector.
Certificate
Company Information
Optical Network Video Technologies (Shenzhen) Co., Ltd is now one of the leading manufacturers of security transmission equipment in China
We’re a factory and we have our own R&D team, we can do OEM/ODM as well. We'd been to many countries to take part in many exhibitions for years, such as CeBIT in Germany, International security exhibition in Taipei, ISC West in Las Vegas, MIPS in Moscow, etc, and many more in domestic of China, including Hongkong. You’re warm welcome to visit us if you have time. Thank you.
Our Factory & Team
FAQ
1, Why choose us?
We are the first manufacturer in Shenzhen China to produce intelligent PoE switch, PoE splitter, PoE injector, etc. Our chips are of American military-grade with high stability and high performance. We have our own R&D team also.
2, What about the after sales service?
We offer all solutions to all our products after selling.
3, Are you manufaturer?
Yes.
4, What's the application of your POE products?
Thet can fit all the IP camera, IP telephone, or other devices, and non IP products as well.
5, How to contact us?
Pls contact:
|
Ms Jessica Zeng |
Whatsapp:0086 13827731214 | |
Skype:cissy.zeng1908 | |
Tel:0086-755-33376623 | |
Fax:0086-755-33376608 | |
Email: sales9 @ | |
Headquarter Address:Room 1003, Block D, Tairan Building, Chegongmiao, Futian district, Shenzhen, China.
Factory Address: Fivth floor, Senyutai Technology Center Building A, Huaning Road, Dalang Street, Longhua district, Shenzhen, China.
Keywords: 10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera/ 15.4W 12V splitter cable for CCTV camera CE FCC RoHS C-TICK / 25.5W 12V CCTV cable for elevator poe splitter for CCTV camera CE FCC RoHS C-TICK/ Optical Network Video technology, the first manufacturer of POE switches in China/ 10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera 10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera
