PoE Module Compatible With IEEE802.3af Standard With 15.4W for IP Webcam

PoE Module Compatible With IEEE802.3af Standard With 15.4W for IP Webcam photo-1
US$ 1.99 - 399 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ONV POE module
Model Number:
ONV-PD3002 POE module
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ONV POE module
Model Number ONV-PD3002 POE module

    Product Name

10/100M PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam

 PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam



10/100M PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam

   Feature



 Feature

100M High Power PoE Module - Special for IP webcam
Compatible with IEEE 802.3af Power over Ethernet standard
PoE port power can be up to 15.4W
Standard modular design, embedded PCB design special for network camera
2x 12V voltage output, can be customized 5V/9V/12VDC output
1236 and 4578 compatible power supply
Low heat design, safe and reliable, high stability
Dimension (L x W): 38X38(mm)





Order Information
Product Model:  ONV-PD3002
Product Description:  10/100M high power PoE Module special for IPC webcam, DC 12V, IEEE 802.3af international standard, PoE port power can be up to 15.4W
Ordering Note: Default PoE power supply type is end-span(45,78 line pair), mid-span(12,36 line pair) can be customized


Product size

38x38mm



   Application



PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam





Packaging & Shipping

     Packaging & Shipping



Step 1:

Material inspection & sampling test.

 Step 2:

Sampling high temperature aging.

 Step 3:

Sampling high and low temperature cycle test.

 Step 4:

Assembly and functional testing.

 Step 5:

Batch room temperature aging.

 Step 6:

Batch welding and performance testing.

 Step 7:

Outgoing quality control & Packaging.

 Step 8:

Finished products storage and delivery.



For delivery, you could choose our cooperative forwarder or your own agent forwarder. Thanks.



Our Services

   Our services



We offer lifetime after sales services for all our PoE switches, PoE splitter, PoE injector.



    Certificate



PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP WebcamPoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam



Company Information

      Company Information



Optical Network Video Technologies (Shenzhen) Co., Ltd is now one of the leading manufacturers of security transmission equipment in China



We’re a factory and we have our own R&D team, we can do OEM/ODM as well. We'd been to many countries to take part in many exhibitions for years, such as CeBIT in Germany, International security exhibition in Taipei, ISC West in Las Vegas, MIPS in Moscow, etc, and many more in domestic of China, including Hongkong. You’re warm welcome to visit us if you have time. Thank you.



PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam

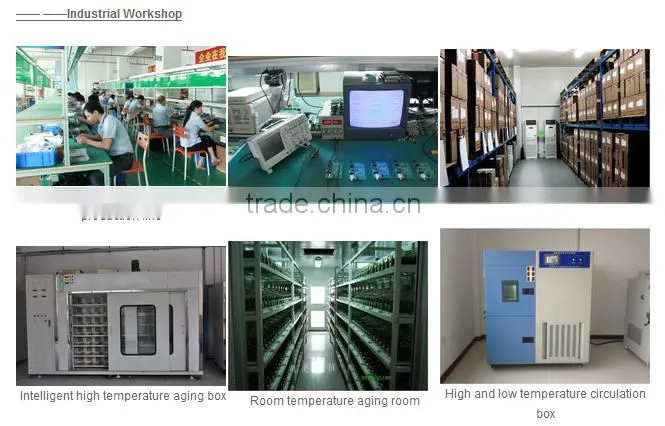

     Our Factory & Team

 PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP WebcamPoE Module Compatible with IEEE802.3af Standard with 15.4W for IP WebcamPoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam



FAQ

       FAQ



1, Why choose us?

We are the first manufacturer in Shenzhen China to produce intelligent PoE switch, PoE splitter, PoE injector, etc. Our chips are of American military-grade with high stability and high performance. We have our own R&D team also.



2, What about the after sales service?

We offer all solutions to all our products after selling.



3, Are you manufaturer?

Yes.



4, What's the application of your POE products?

Thet can fit all the IP camera, IP telephone, or other devices, and non IP products as well.



5, How to contact us?

      Pls contact:



PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam

Ms Jessica Zeng

Whatsapp:0086 13827731214

Skype:cissy.zeng1908

Tel:0086-755-33376623

Fax:0086-755-33376608

Emailsales9 @

Headquarter Address:Room 1003, Block D, Tairan Building, Chegongmiao, Futian district, Shenzhen, China.

Factory Address: Fivth floor, Senyutai Technology Center Building A, Huaning Road, Dalang Street, Longhua district, Shenzhen, China.

 Keywords:  10/100M PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam/ 10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera/ 15.4W 12V splitter cable for CCTV camera CE FCC RoHS C-TICK / 25.5W 12V CCTV cable for elevator poe splitter for CCTV camera CE FCC RoHS C-TICK/  Optical Network Video technology, the first manufacturer of POE switches in China/  10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera 10/100M PoE Module with IEEE802.3af PoE Standard poe module Special for IP Camera 10/100M PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam10/100M PoE Module Compatible with IEEE802.3af Standard with 15.4W for IP Webcam
