Product Name

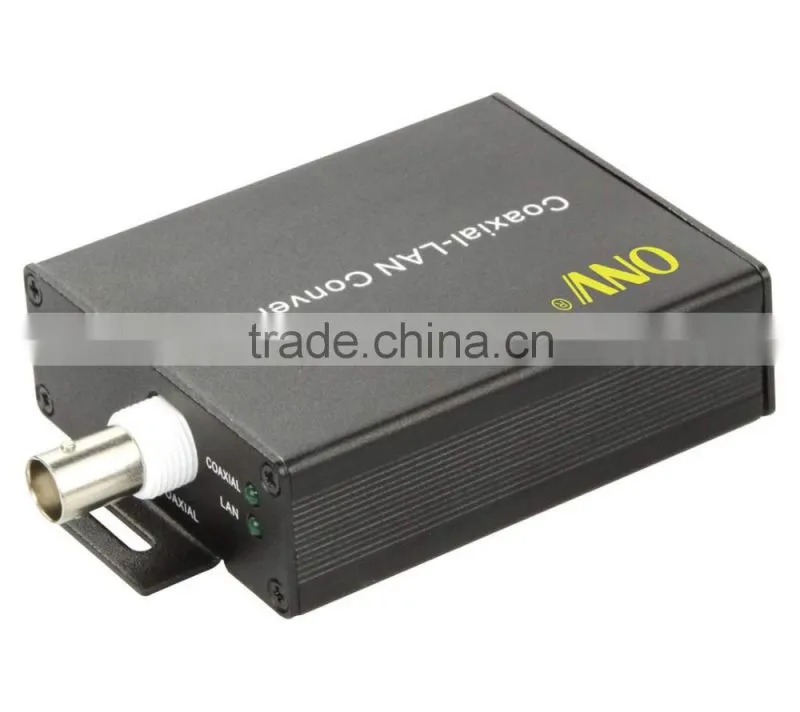

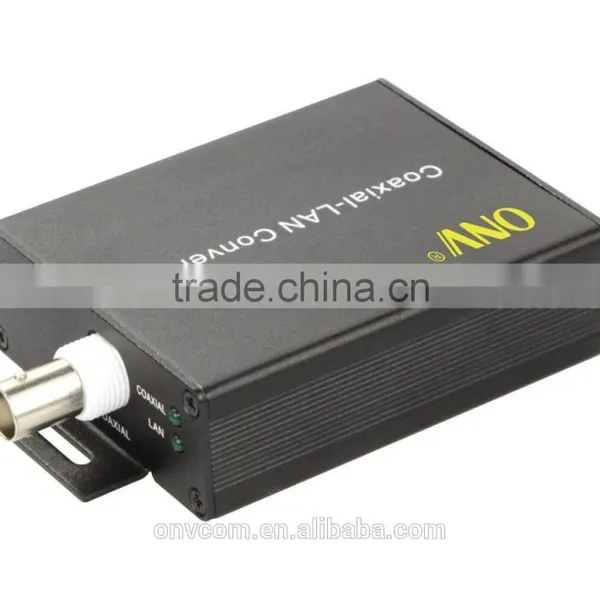

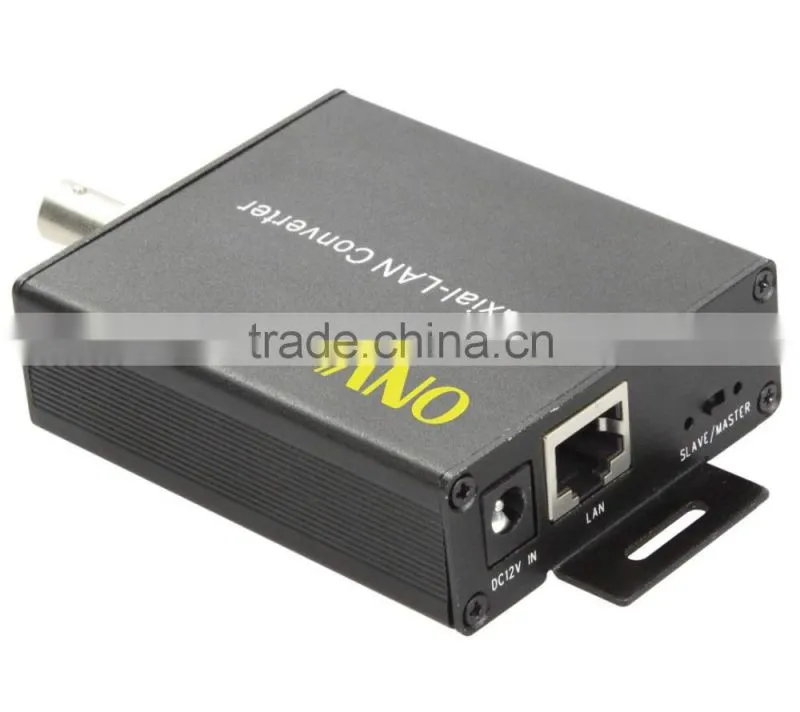

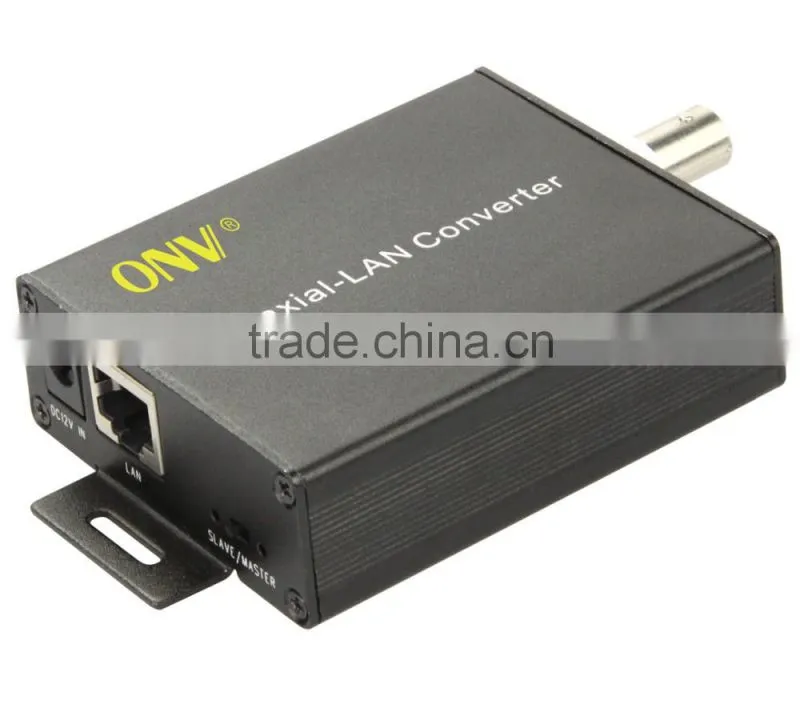

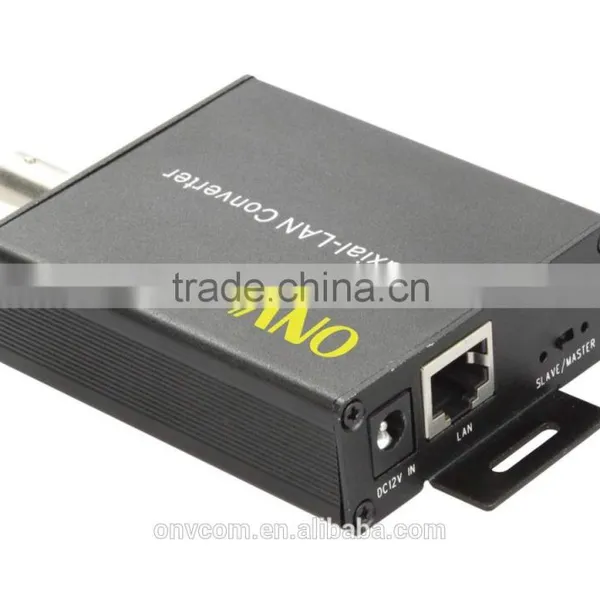

10/100M Ethernet over Coaxial EOC Converter
10/100M Ethernet over Coaxial EOC Converter
Feature
Through coaxial cable transmission, can provide 100Mbps network flow with regular video cable or twisted pair. Built-in transmitting circuit and receiving circuit and each converter is capable of transmitting and receiving function. Simple to use, no hardware or software debugging, no IP setting, just connecting the video cable to work normally.
Has the advantage of long distance transmission, high-speed communication, supporting multimedia services and flexing networking, etc. Widely applied for upgrading the original analog system to HD system, building new long-distance transmission system, etc. Due to the wires selection diversity, all the original wires in the analog camera can be used as the transmission medium, no need re-wiring. Thus, just replacing the front camera, plus EOC transmitter device, you can upgrade the analog systems to HD digital network, save wiring time, manpower and material resources.
Features:
Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
Long distance network extended and can be up to 200 meters
Support multi-point access, one point to multi-point access
Plug and play, no need to set
Long distance centralized power supply, the effect is equivalent to PoE power supply
Transmission via coaxial cable, twisted pair, telephone line and other transmission media
There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously
| Brand | ONV |
| Product Name | 10/100M Ethernet over Coaxial 1C1E EOC Converter |
| Product Model | ONV1C1E-3 |
| Transmission Media | Coaxial Cable,Twisted Pair Cable |
| Network Port | 10/100M auto-sensing RJ45 port |
| Connector | 1X RJ45 connectors,1X BNC connector |
| Transmission Range/Rate | Cable length less than 400M——92Mbps; Cable length less than 1000M——74Mbps; Cable length less than 2000M——30Mbps; |
| Coaxial Input/Output | BNC port/ 75ohm |
| Led Indicator | Network cable connected right – LED light is on Video cable connected right –LED light is flashing |
| Master/Slave Setting | Master mode solidified |
| Power Supply | 12V DC,180mA |
| Working Environment | Working Temperature:-20℃ ~40℃; Relative Humidity:5%~95%, no condensation; |
| Dimension | 78X65X24mm |
| Radiation | FCC Class A, CE |
| Warranty | 1 year warranty, life-time maintain |
Product Ordering Information
Product Model: ONV1C1E-3
Product Description: 1X 100Mbps 1C1E Coaxial Cable EOC Converter,1X 10/100M auto-sensing port,1X Coaxial Input/Output BNC port,1X Power Supply(12V DC,180mA)
Ordering List: Default ONV1C1E-3 Transmission 300 meters
Product Model |
Transmission Distance |
Cable Type |
||
75-5 Coaxial Cable |
Twisted Pair |
Telephone Line |
||
ONV1C1E-3 |
300 meters |
100Mbps |
80 Mbps |
60 Mbps |
ONV1C1E-6 |
600 meters |
90 Mbps |
60 Mbps |
50 Mbps |
ONV1C1E-12 |
1200 meters |
70 Mbps |
40 Mbps |
30 Mbps |
ONV1C1E-15 |
1500 meters |
50 Mbps |
30 Mbps |
20 Mbps |
ONV1C1E-20 |
2000 meters |
30 Mbps |
15 Mbps |
10 Mbps |
Product Packing Lists
Packing Lists |
100M 1C1E Coaxial Cable EOC Converter ONV1C1E-3
|
12V DC,180mA Power Adapter | |
User Manual | |
Guarantee Card |

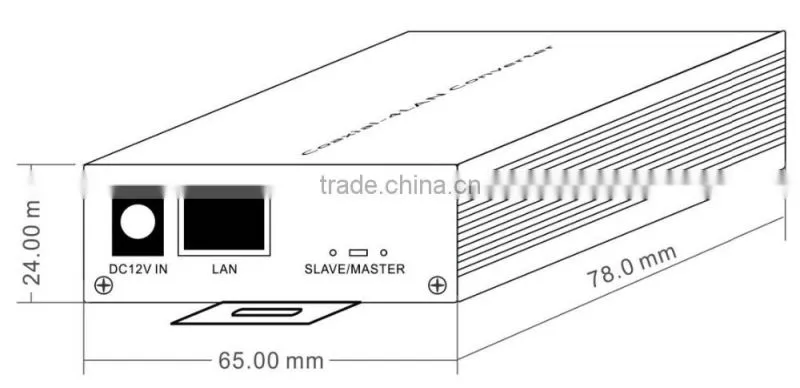

Dimension Display
WxHxD (mm): 78X65X24mm

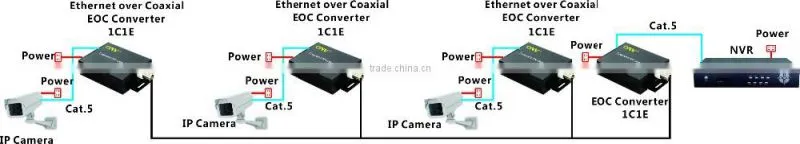

Application
Packaging & Shipping
Step 1:
Material inspection & sampling test.
Step 2:
Sampling high temperature aging.
Step 3:
Sampling high and low temperature cycle test.
Step 4:
Assembly and functional testing.
Step 5:
Batch room temperature aging.
Step 6:
Batch welding and performance testing.
Step 7:
Outgoing quality control & Packaging.
Step 8:
Finished products storage and delivery.
For delivery, you could choose our cooperative forwarder or your own agent forwarder. Thanks.
Our services
We offer lifetime after sales services for all our PoE switches, PoE splitter, PoE injector.
Certificate
Company Information
Optical Network Video Technologies (Shenzhen) Co., Ltd is now one of the leading manufacturers of security transmission equipment in China
We’re a factory and we have our own R&D team, we can do OEM/ODM as well. We'd been to many countries to take part in many exhibitions for years, such as CeBIT in Germany, International security exhibition in Taipei, ISC West in Las Vegas, MIPS in Moscow, etc, and many more in domestic of China, including Hongkong. You’re warm welcome to visit us if you have time. Thank you.
