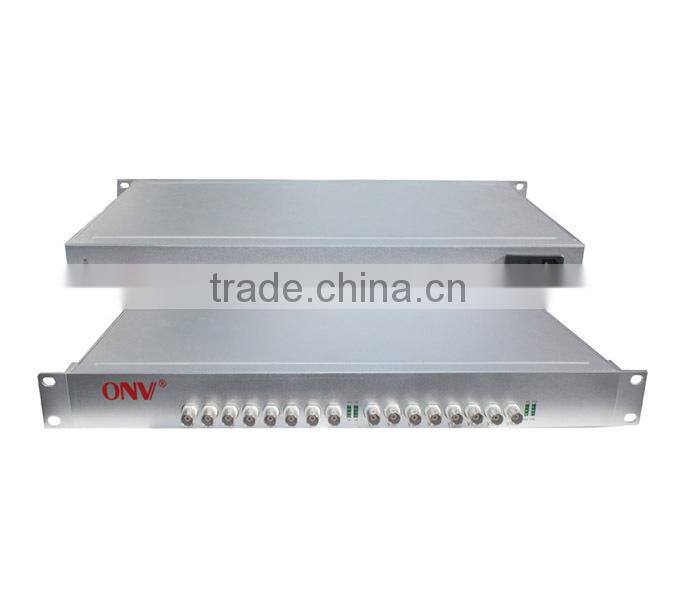

16 Channel Video Fiber Optic Transceiver With 1CH Reverse Data/Audio/ethernet

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsMoney Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ONV
Model Number	ONVDT/R16V1D1A1E-S

Product Description

Product features

1. Card-type or Stand-alone type for your choice; suitable for concentration management in 1U Racks
2. 10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4. automatically compatible with PAL, NTSC and SECAM video format
5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
6. Supporting advanced SNMP standards, realise long-distance web-controlling
7. LED indication of power and other parameter status, monitoring real-time operation

8. Modularized and industrialized design ensuring reliability and flexibility

The picture

Specification

Product Name	16CH Audio Video Optical Transceiver with 1CH Data/Ethernet
Product Model	ONVDT/R16V1D1A1E-S
Connector Type	16 BNC video port , data port,audio port,1 single mode single fiber FC port
Video Interface	BNC
Video Bandwidth	10MHz
Video Bit Wide	10/12 bit
Differential Gain	(10%-90%APL) DG <1%
Differential Phase	(10%-90%APL) DP <0.8°
Video SNR	S/N ≥ 70dB
Data Interface	industrial interface; RS-485 ,RS232 or RS422
Data Bit Rate	0-1024Kbps
Audio Interface	industrial interface
Audio Bandwidth	20Hz~20kHz
Audio SNR	S/N≥85dB
Alarm Feature	switch short circuit signal, high and low level signal input, NO and NC signal output
Ethernet Feature	IEEE 802.3U a100Base-TX , 10/100M
Fiber Feature	single mode single fiber, FC port
Power Supply	AC85-260V/50Hz
Power Consumption	10.5W
Working Environment	environmental temperature:-40 ℃~+85 ℃, storage temperature:-45 ℃~+95 ℃, humidity:0~95%
Dimension	LxWxH: 482.6X235X44mm
Certification	FCC Class A, CE, ROHS
Warranty	3 year warranty, lifetime maintenance

Order Information(Packed in standalone and card type, Card-type is suitable for the 4U Rack)

Type Number	Specification (Interface:FC)	Max Transmission Distance (KM)
ONVDT/R16V1D1A-M	16 Video +1 Reverse Data+1 Audio	0.5 KM(Multi-mode)
ONVDT/R16V1D1A-S	16 Video +1 Reverse Data+1 Audio	20 KM(Single-mode)
ONVDT/R16V1D12A-S	16 Video +1 Reverse Data+1 Bi-directional Audio	20 KM(Single-mode)
ONVDT/R16V1D1K12A-S	16 Video +1 Reverse Data+1 Alarm+1 Bi-directional Audio	20 KM(Single-mode)
ONVDT/R16V1D12D12A-S	16video+1 reverse data+1 bi-directiona Data+1bi-directional audio	20 KM(Single-mode)
ONVDT/R16V12D1K22A-S	16 Video +1 Bi-directiona Data++1 Alarm +2 Bi-directional Audio	20 KM(Single-mode)
ONVDT/R16V22D2K42A-S	16 Video +2 Bi-directiona Data++2 Alarm +4 Bi-directional Audio	20 KM(Single-mode)

S40:40KM; -S60:60KM; S100:100KMNote: The interface can be ST or FC, according to the different requirements from customers. The installation size please Go refer in the application instructions Notes: :(V:video,D:data,A:audio,K:switch/alarm,E:Ethernet,P:phone,)

-S:Single-mode; -M:Multi-mode

Accessories in the Package

User Manual	maintenance card	Qualified Certification	Power Adapter	Facility
1copy	1copy	1 copy	2 pcs	1 set
