24CH Video Fiber Optic Transceiver
Product features
1. Card-type or Stand-alone type for your choice; suitable for concentration management in 1U Racks
2. 10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4. automatically compatible with PAL, NTSC and SECAM video format
5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
6. Supporting advanced SNMP standards, realise long-distance web-controlling
7. LED indication of power and other parameter status, monitoring real-time operation
8. Modularized and industrialized design ensuring reliability and flexibility

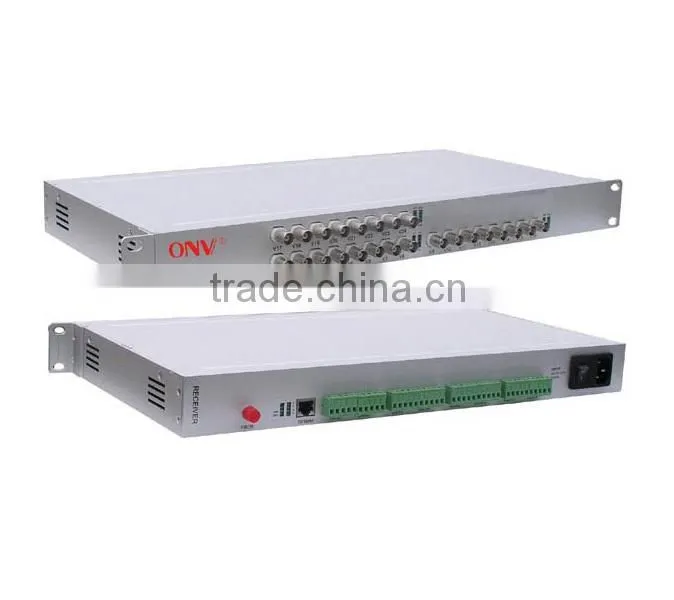

The picture
Specification
| Product Name | 24CH Video Optical Transmitter and Receiver |
| Product Model | ONVDT/R24V-S |
| Connector Type | 24 BNC video port ,1 single mode single fiber FC port |
| Video Interface | BNC |
| Video Bandwidth | 10MHz |
| Video Bit Wide | 8/10/12 bit |
| Differential Gain | (10%-90%APL) DG <1% |
| Differential Phase | (10%-90%APL) DP <0.8° |
| Video SNR | S/N ≥ 70dB |
| Power Supply | AC85-260V/50Hz |
| Power Consumption | 15W(Input:DC5V 5000mA) |
| Working Environment | environmental temperature:-40 ℃~+85 ℃, storage temperature:-45 ℃~+95 ℃, humidity:0~95% |
| Dimension | LxWxH: 482.6X235X44mm |
| Certification | FCC Class A, CE, ROHS |
| Warranty | 3 year warranty, lifetime maintenance |
Order Information(Packed in standalone and card type, Card-type is suitable for the 4U Rack)
Type Number |
Specification (Interface:FC) | Max Transmission Distance (KM) |
ONVDT/R24V-M |
24 video digital |
0.5KM(Multi-mode) |
ONVDT/R24V-S |
24 video digital |
20KM(Single-mode) |
| ONVDT/R24V-S40 | 24 video digital |
40KM(Single-mode) |
| ONVDT/R24V-S60 | 24 video digital | 60KM(Single-mode) |
| ONVDT/R24V-S100 | 24 video digital | 100KM(Single-mode) |
S40:40KM; -S60:60KM; S100:100KMNote: The interface can be ST or FC, according to the different requirements from customers. The installation size please Go refer in the application instructions Notes: :(V:video,D:data,A:audio,K:switch/alarm,E:Ethernet,P:phone,)
User Manual |
maintenance card |
Qualified Certification |
Power Adapter |
Facility |
1copy |
1copy |
1 copy |
2 pcs |
1 set
|
