Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Good Quality 2CH Video Optical Transceiver With 1CH Telephone

Good Quality 2CH Video Optical Transceiver With 1CH Telephone

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ONV

Model Number:

ONVDT/R2V1D1A1P1E-S

Contact Supplier Request Quote Chat Now

Optical Network Video Technologies (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ONV

Model Number ONVDT/R2V1D1A1P1E-S

Product features

1. Card-type or Stand-alone type for your choice; suitable for concentration management in 4U Racks
2. 10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4. automatically compatible with PAL, NTSC and SECAM video format
5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
6. Supporting advanced SNMP standards, realise long-distance web-controlling
7. LED indication of power and other parameter status, monitoring real-time operation
8. Modularized and industrialized design ensuring reliability and flexibility

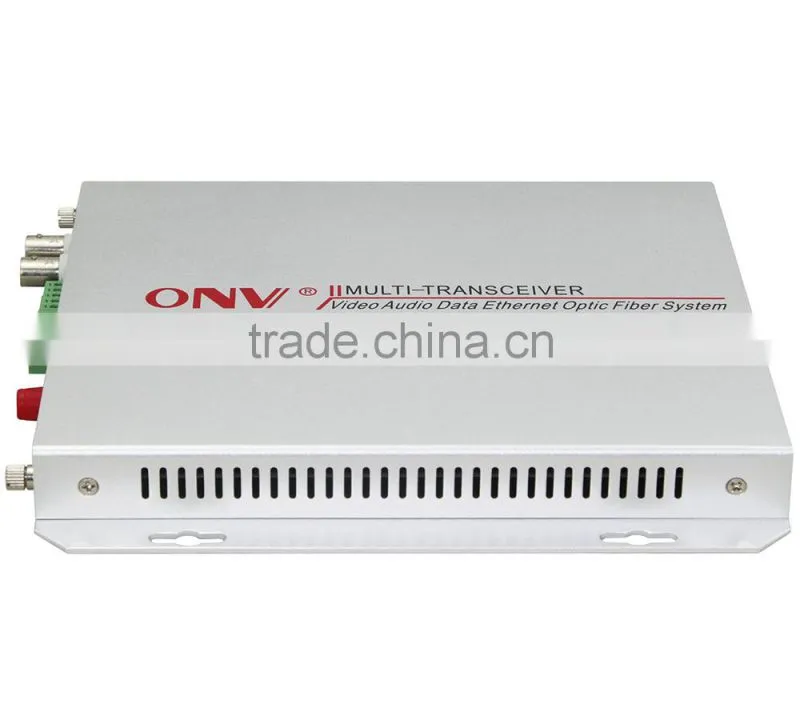

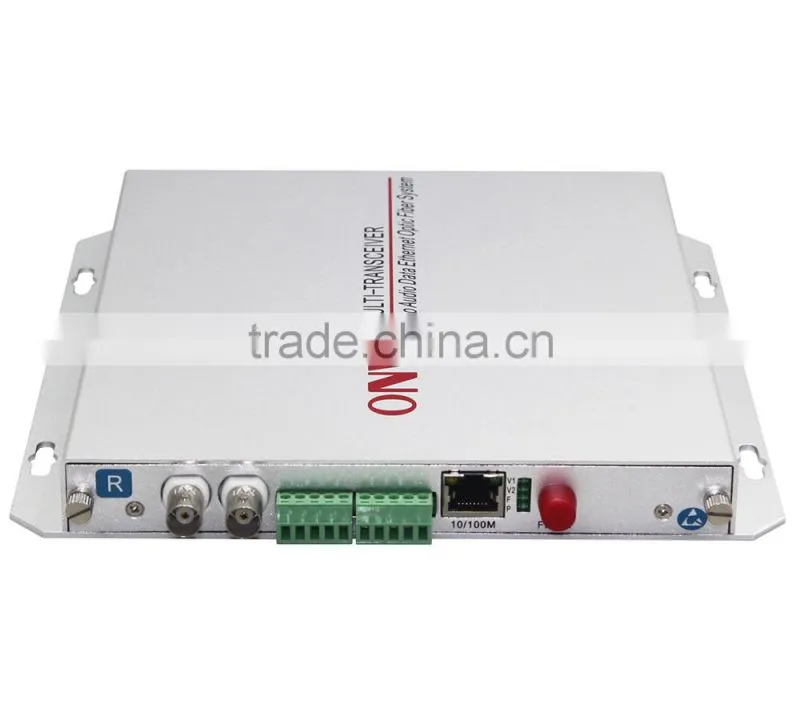

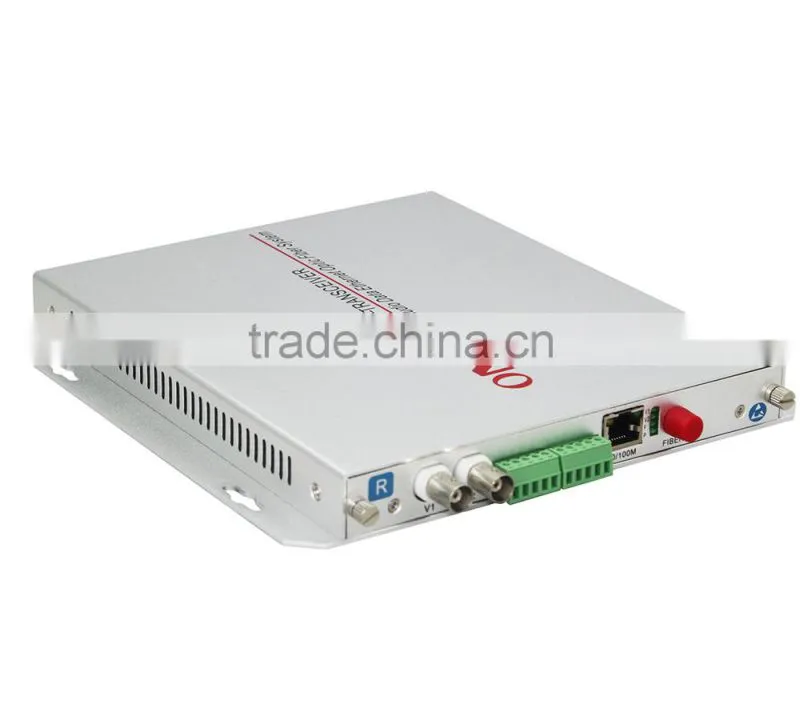

The picture

Specification

Product Name	2CH Audio Video Optical Transceiver with 1CH Data/Telephone/Ethernet
Product Model	ONVDT/R2V1D1A1P1E-S
Connector Type	2 BNC port, 1 data port, 1 Audio, 1 Phone port 1 Ethernet port, 1 FC fiber port
Video Interface	BNC
Video Bandwidth	10MHz
Video Bit Wide	8/10/12 bit
Differential Gain	(10%-90%APL) DG<1%
Differential Phase	10%-90%APL) DG<0.7dB
Video SNR	S/N ≥ 70dB
Data Interface	Industrial terminal blocks; RS485,RS232 or RS422
Data Bit Rate	0-1024Kbps
Audio Interface	Industrial terminal blocks
Audio Bandwidth	20Hz~20kHz
Audio SNR	S/N≥85dB
Alarm Feature	switch short circuit signal,high and low level signal input,NO and NC signal output
Ethernet Feature	IEEE802.3U 100Base-TX, UTP 5,10/100M Auto-adaption
Protocol	IEEE 802.3U 100Base-TX , 10/100M Ethernet standard
Other Performance	Phone Feature: 8KHZ,PCM CODEC, Support any Inband Signalling
Power Supply	External power adapter(input: AC100-240V 50/60Hz; output: 5V 1A
Power Consumption	2.5W(Input:DC5V 1000mA)
Working Environment	Environment temperature: -40 ℃~+85 ℃; storage temperature:-45 ℃~+95 ℃; relative humidity: 0~95%
Dimension	LxWxH: 116X87.5X25.5mm
Certification	FCC Class A, CE, ROHS
Warranty	3 years

Order Information (Packed in standalone and card type,Card-type is suitable for the 4U Rack)

Type Numbe	Specification (Interface:FC)	Max Transmission Distance (KM)
ONVDT/R2V1D1A1P1E-M	2 video +1 reverse data+ 1 audio+1 telephone+100M ethernet	0.5 KM(Multi-mode)
ONVDT/R2V1D1A1P1E-S	2 video +1 reverse data+ 1 audio+1 telephone+100M ethernet	20KM(Single-mode)
ONVDT/R2V1D12A1P1E-S	2 video+1 reverse data+1 bi-directional audio+1 telephone+100M ethernet	20KM(Single-mode)
ONVDT/R2V12D12A1P1E-S	2 video+1 bi-directional data+1 bi-directional audio+1 telephone+100M ethernet	20KM(Single-mode)
ONVDT/R2V22D22A1P1E-S	2 video+2 bi-directional data+2 bi-directional audio+1 telephone+100M ethernet	20KM(Single-mode)
ONVDT/R2V12D12A2P1E-S	2 video+1 bi-directional data+ 1 bi-directional audio+ 2 telephone+100M ethernet	20KM(Single-mode)
