Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 8CH Video Fiber Optic Transceiver With 1CH Bi-directional Audio

8CH Video Fiber Optic Transceiver With 1CH Bi-directional Audio

Optical Network Video Technologies (Shenzhen) Co., Ltd.

8CH Video Fiber Optic Transceiver With 1CH Bi-directional Audio photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ONV

Model Number:

ONVDT/R8V12A-S

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ONV

Model Number ONVDT/R8V12A-S

Product features

1. Card-type or Stand-alone type for your choice; suitable for concentration management in 4U Racks
2. 10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4. automatically compatible with PAL, NTSC and SECAM video format
5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
6. Supporting advanced SNMP standards, realise long-distance web-controlling
7. LED indication of power and other parameter status, monitoring real-time operation
8. Modularized and industrialized design ensuring reliability and flexibility

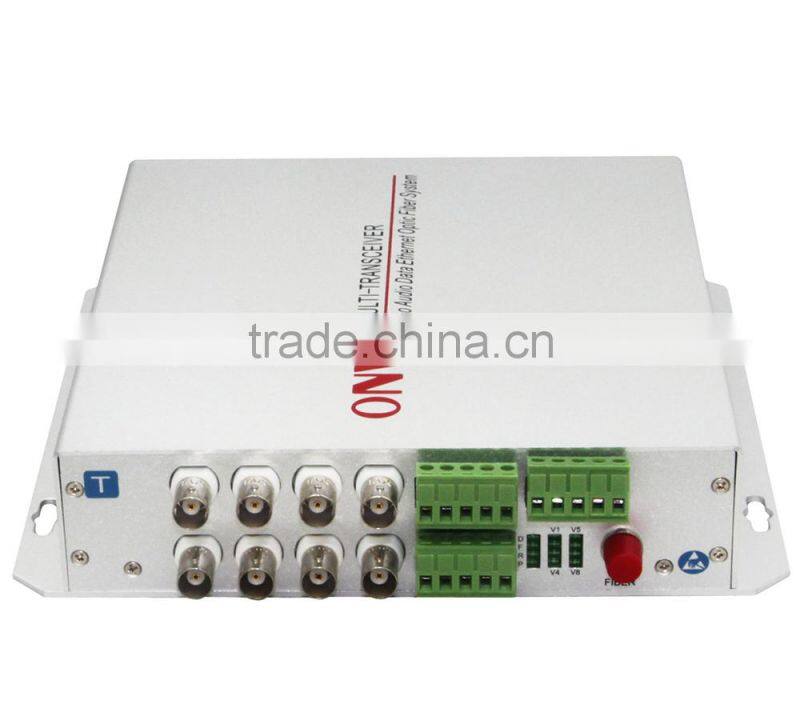

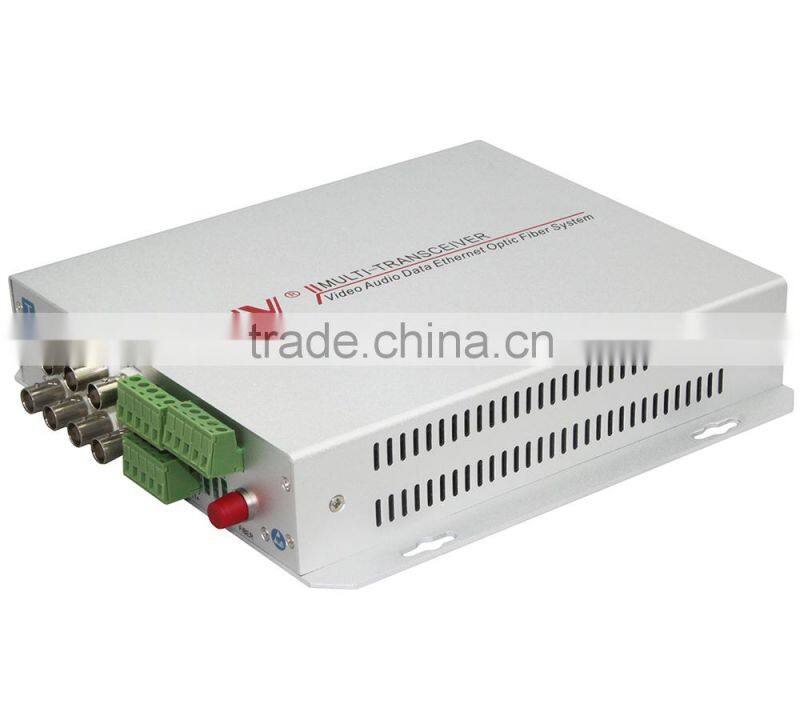

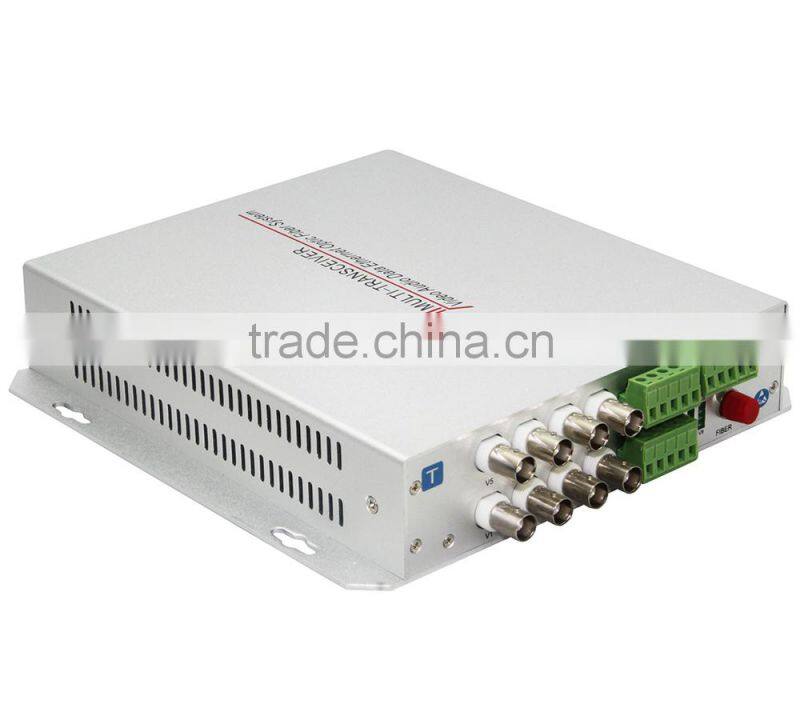

The picture

Specification

Product Name	8CH Video Optical Transmitter&Receiver with 1CH Bi-directional Audio
Product Model	ONVDT/R8V12A-S
Connector Type	8 BNC port, 1 audio port, 1 FC fiber port
Video Interface	BNC
Video Bandwidth	10MHz
Video Bit Wide	8/10/12 bit
Differential Gain	(10%-90%APL) DG<1%
Differential Phase	(10%-90%APL) DG<0.7dB
Video SNR	S/N≥70dB
Audio Interface	Industrial terminal blocks
Audio Bandwidth	20Hz~20kHz
Audio SNR	S/N≥85dB
Fiber Feature	Multi-Mode(850nm,1310nm)/Single-Mode(1310nm,1550nm);FC
Power Supply	6W(Input:DC5V 2000mA)
Transmission Distance	Single Mode for 25km, Multi-Mode for 500m
Working Environment	Environment temperature: -40 ℃~+85 ℃; storage temperature:-45 ℃~+95 ℃; relative humidity: 0~95%

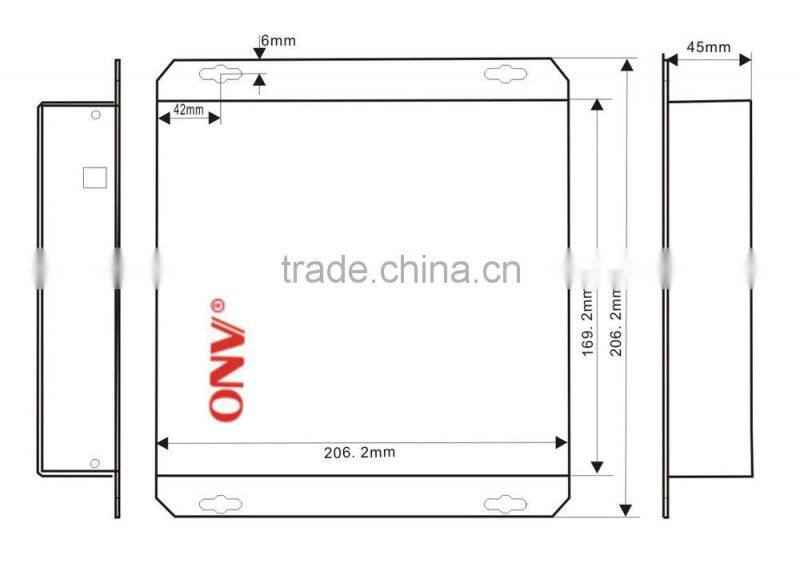

Dimension	LxWxH: 206.2X206.2X45mm
Certification	FCC Class A, CE, ROHS
Warranty	3 years

Order Information(Packed in standalone and card type, Card-type is suitable for the 4U Rack)

Type Number	Specification (Interface: FC)	Max Transmission Distance (KM)
ONVDT/R8V1A-M	8 Video +1 Reverse Data+1 Audio	0.5KM (Multi-mode)
ONVDT/R8V1A-S	8 Video +1 Reverse Data+1 Audio	20KM (Single-mode)
ONVDT/R8V12A-S	8 Video +1 Reverse Data+1 Bi-directional Audio	20KM (Single-mode)
ONVDT/R8V1K12A-S	8 Video +1 Reverse Data+1 Alarm+1 Bi-directional Audio	20KM(Single-mode)
ONVDT/R8V12A-S	8video+1 reverse data+1 bi-directiona Data+1bi-directional audio	20KM (Single-mode)
ONVDT/R8V1K42A-S	8 Video +1 Bi-directiona Data++1 Alarm +4 Bi-directional Audio	20KM (Single-mode)
ONVDT/R8V4K82A-S	8 Video +4 Bi-directiona Data++4 Alarm +8 Bi-directional Audio	20KM (Single-mode)

Note: The interface can be ST or FC, according to the different requirements from customers. The installation size please Go refer in the application instructions

Accessories in the Package
