Product features
1. Card-type or Stand-alone type for your choice; suitable for concentration management in 4U Racks
2. 10 –digit coding and non-compression video transmission
3. supporting any high –resolution video signal
4. automatically compatible with PAL, NTSC and SECAM video format
5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
6. Supporting advanced SNMP standards, realise long-distance web-controlling
7. LED indication of power and other parameter status, monitoring real-time operation
8. Modularized and industrialized design ensuring reliability and flexibility

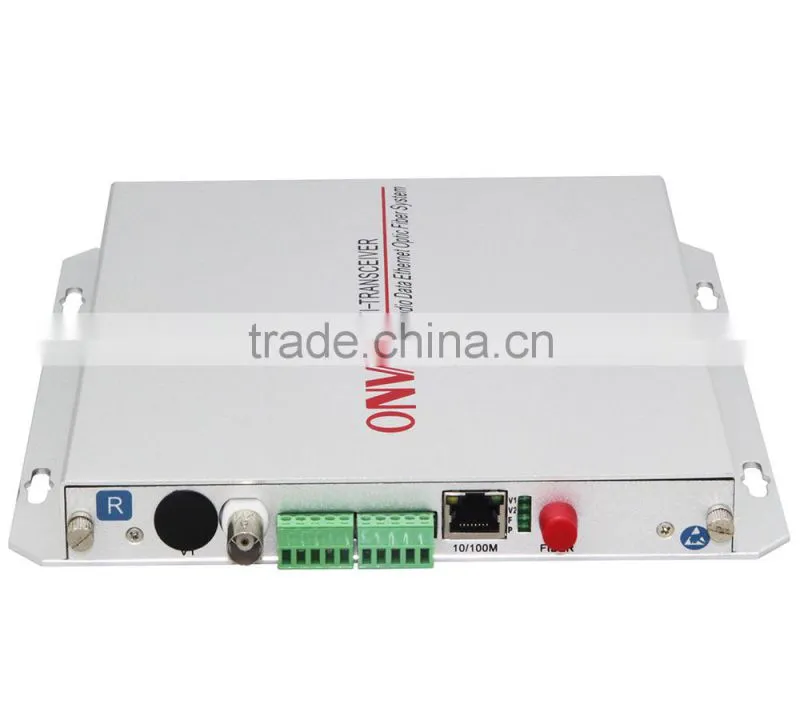

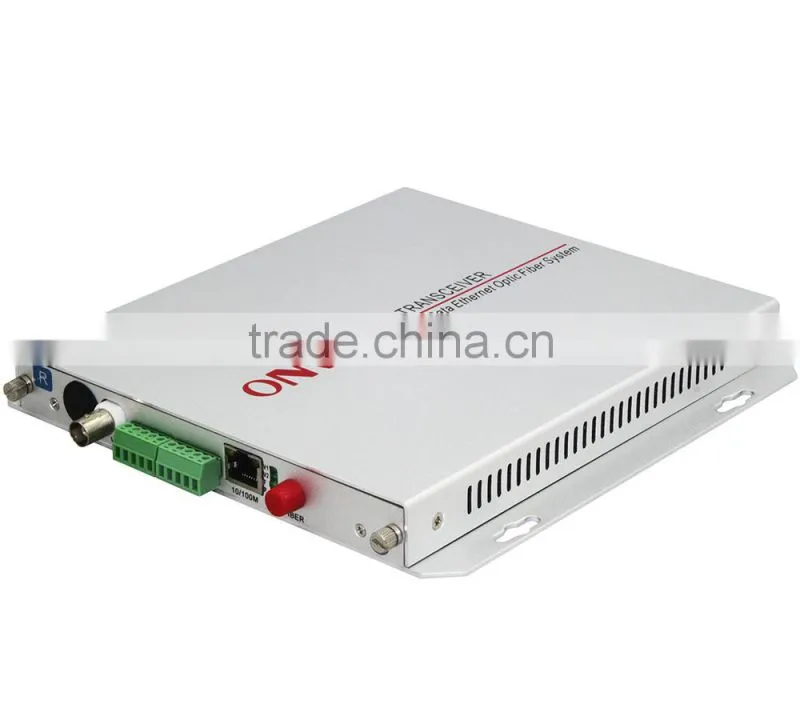

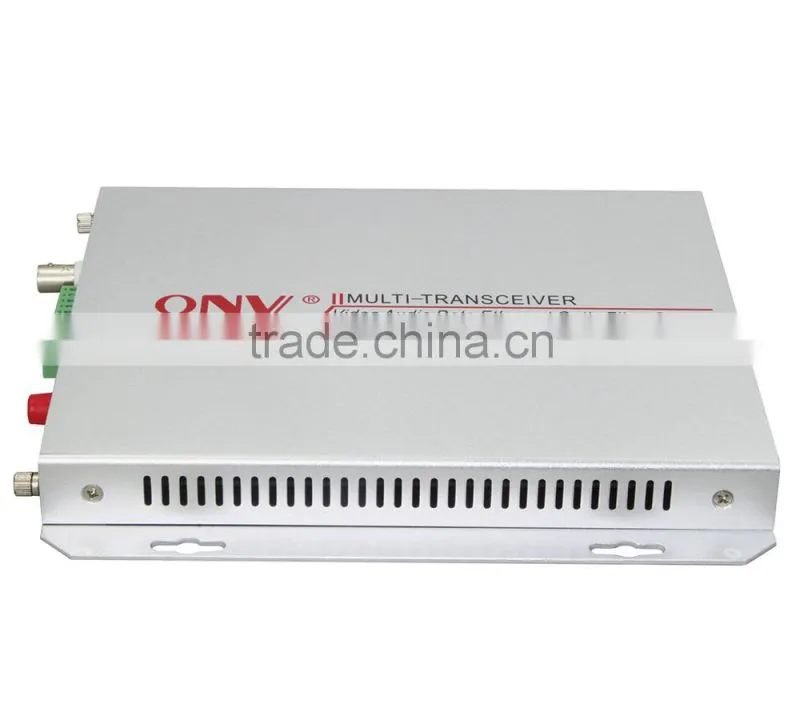

The picture
Specification
| Product Name | 1CH Video Optical Transceiver |
| Product Model | ONVDT/R1V1D1E-S |
| Connector Type | 1 BNC port, 1 data port, 1 Ethernet, 1 FC fiber port |
| Video Interface | BNC |
| Video Bandwidth | 10MHz |
| Video Bit Wide | 8/10/12 bit |
| Differential Gain | (10%-90%APL) DG<1% |
| Differential Phase | 10%-90%APL) DG<0.7dB |
| Video SNR | S/N≥70dB |
| Data Interface | Industrial terminal blocks |
| Data Bit Rate | 0-1024Kbps |
| Ethernet Feature | IEEE802.3U 100Base-TX, UTP 5,10/100M Auto-adaption |
| Protocol | IEEE 802.3U 100Base-TX ,10/100M Ethernet standard |
| Fiber Feature | IEEE802.3U 100Base-TX, UTP 5,10/100M Auto-adaption |
| Power Consumption | 2.5W(Input:DC5V 1000mA) |
| Transmission Distance | Single Mode for 25km, Multi-Mode for 500m |
| Working Environment | Environment temperature: -40 ℃~+85 ℃; storage temperature:-45 ℃~+95 ℃; relative humidity: 0~95% |
| Dimension | LxWxH: 116X87.5X25.5mm |
| Certification | FCC Class A, CE, ROHS |
| Warranty | 3 years |
Order Information (Packed in standalone and card type,Card-type is suitable for the 4U Rack)
Model |
Specification (Interface:FC) |
Max Transmission Distance (KM) |
ONVDT/R1V1E-M |
1 Video+ 100M Ethernet |
1 KM (Multi-mode) |
ONVDT/R1V1E-S |
1 Video+ 100M Ethernet |
20 KM(Single-mode) |
ONVDT/R1V1D1E-S |
1 Video +1 Reverse Data+ 100M Ethernet |
20 KM(Single-mode) |
ONVDT/R1V12D1E-S |
1 Video +1 bi-directional Data+ 100M Ethernet |
20 KM(Single-mode) |
ONVDT/R1V22D1E-S |
1 Video +2 bi-directional Data +100M Ethernet |
20 KM(Single-mode) |
ONVDT/R1V2D2K1E-S |
1 video+2 reverse data+2 alarm +100M ethernet |
20 KM(Single-mode) |

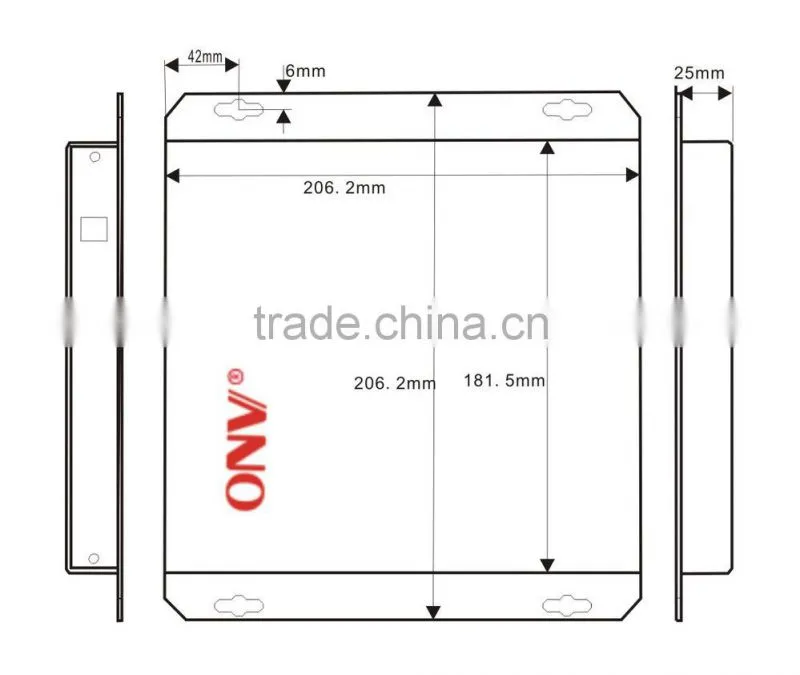

Product Dimension Display
Our factory and sale office
More inforamtion, please feel free to contact us. Our website is
Contact: Haley Zhou
Skype: haley.zhou9101
