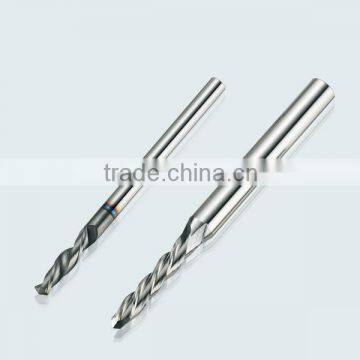

Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine

Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine

Product Name Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine
Place of Origin Taiwan
Material Carbide- Nano Micro Grain (NMG)
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.
  • Material:Carbide- Nano Micro Grain (NMG)
  • Flute:2Flute
  • coating type: no coating or Can be customized (TiAlN/DLC etc.)
  • Point Angle : 118°/120°/130°/135°/140°
  • Helix Angle : 35°/38°/40°
  • All of our cutters can be customized exclusively for our customers.

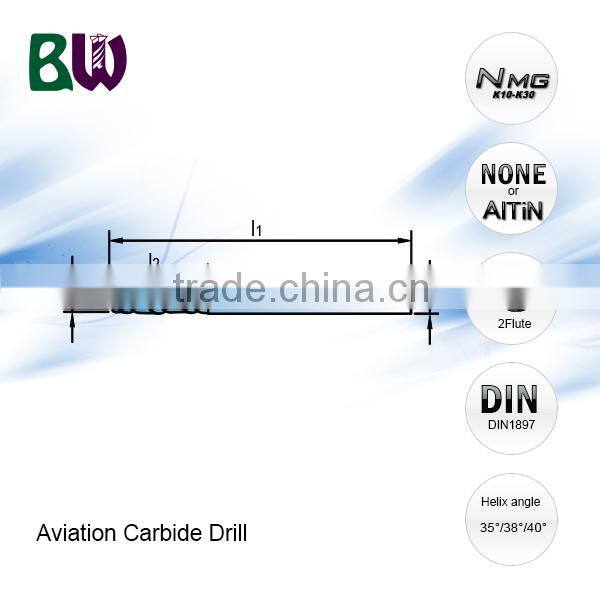

Tungsten Carbide Drill Bits Specification:

Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine

unit:mm
Tungsten Carbide Drill Bits
Point Angle : 118°/120°/130°/135°/140°
Helix Angle : 35°/38°/40°
Cutter Dia.
d1		 Shank Dia.
d2		 Flute Length
l2		 Total Length
l1
1 3 5 26
1.1 3 6 28
1.2 3 6 30
1.3 3 7 30
1.4 3 7 32
1.5 3 8 32
1.6 3 8 34
1.7 3 9 36
1.8 3 9 36
1.9 3 10 38
2 3 10 38
2.1 3 11 38
2.2 3 11 40
2.3 3 12 43
2.4 3 12 43
2.5 3 13 43
2.6 3 13 46
2.7 3 14 46
2.8 3 14 46
2.9 3 15 46
3 3 15 46
3.1 4 16 46
3.2 4 16 49
3.3 4 16 49
3.4 4 17 49
3.5 4 18 52
3.6 4 18 52
3.7 4 19 52
3.8 4 19 55
3.9 4 20 55
4 4 20 55
4.1 6 21 55
4.2 6 21 55
4.3 6 22 55
4.4 6 22 55
4.5 6 23 58
4.6 6 23 58
4.7 6 24 58
4.8 6 24 62
4.9 6 25 62
5 6 25 62
5.1 8 26 62
5.2 8 26 62
5.3 8 27 62
5.4 8 27 62
5.5 8 28 66
5.6 8 28 66
5.7 8 29 66
5.8 8 29 66
5.9 8 30 66
6 8 30 66
6.1 10 31 66
6.2 10 31 70
6.3 10 32 70
6.4 10 32 70
6.5 10 33 70
6.6 10 33 70
6.7 10 34 70
6.8 10 34 74
6.9 10 35 74
7 10 35 74
7.1 12 36 74
7.2 12 36 74
7.3 12 37 74
7.4 12 37 74
7.5 12 38 74
7.6 12 38 74
7.7 12 39 74
7.8 12 39 79
7.9 12 40 79
8 12 40 79
8.1 14 41 79
8.2 14 41 79
8.3 14 42 79
8.4 14 42 79
8.5 14 43 79
8.6 14 43 79
8.7 14 44 79
8.8 14 44 84
8.9 14 45 84
9 14 45 84
9.1 16 46 84
9.2 16 46 84
9.3 16 47 84
9.4 16 47 84
9.5 16 48 84
9.6 16 48 84
9.7 16 49 84
9.8 16 49 89
9.9 16 50 89
10 16 50 89
10.1 16 51 89
10.2 16 51 89
10.3 16 52 89
10.4 16 52 89
10.5 16 53 89
10.6 16 53 89
10.7 16 54 89
10.8 16 54 95
10.9 16 55 95
11 16 55 95
11.1 18 56 95
11.2 18 56 95
11.3 18 57 95
11.4 18 57 95
11.5 18 58 95
11.6 18 58 95
11.7 18 59 95
11.8 18 59 95
11.9 18 60 95
12 18 60 95
12.1 18 61 102
12.2 18 61 102
12.3 18 62 102
12.4 18 62 102
12.5 18 63 102
12.6 18 63 102
12.7 18 64 102
12.8 18 64 102
12.9 18 65 102
13 18 65 102
13.1 18 66 102
13.2 18 66 102
13.3 18 67 102
13.4 18 67 102
13.5 18 68 107
13.6 18 68 107
13.7 18 69 107
13.8 18 69 107
13.9 18 70 107
14 18 70 107
14.1 18 71 111
14.2 18 71 111
14.3 18 72 111
14.4 18 72 111
14.5 18 73 111
14.6 18 73 111
14.7 18 74 111
14.8 18 74 111
14.9 18 75 111
15 18 75 111
15.1 18 76 115
15.2 18 76 115
15.3 18 77 115
15.4 18 77 115
15.5 18 78 115
15.6 18 78 115
15.7 18 79 115
15.8 18 79 115
15.9 18 80 115
16 18 80 115
16.1 20 81 119
16.2 20 81 119
16.3 20 82 119
16.4 20 82 119
16.5 20 83 119
16.6 20 83 119
16.7 20 84 119
16.8 20 84 119
16.9 20 85 119
17 20 85 119
17.1 20 86 123
17.2 20 86 123
17.3 20 87 123
17.4 20 87 123
17.5 20 88 123
17.6 20 88 123
17.7 20 89 123
17.8 20 89 123
17.9 20 90 123
18 20 90 123
18.1 20 91 127
18.2 20 91 127
18.3 20 92 127
18.4 20 92 127
18.5 20 93 127
18.6 20 93 127
18.7 20 94 127
18.8 20 94 127
18.9 20 95 127
19 20 95 127
19.1 20 96 131
19.2 20 96 131
19.3 20 97 131
19.4 20 97 131
19.5 20 98 131
19.6 20 98 131
19.7 20 99 131
19.8 20 99 131
19.9 20 100 131
20 20 100 131
20.1 24 101 136
20.2 24 101 136
20.3 24 102 136
20.4 24 102 136
20.5 24 103 136
20.6 24 103 136
20.7 24 104 136
20.8 24 104 136
20.9 24 105 136
21 24 105 136
21.1 24 106 141
21.2 24 106 141
21.3 24 107 141
21.4 24 107 141
21.5 24 108 141
21.6 24 108 141
21.7 24 109 141
21.8 24 109 141
21.9 24 110 141
22 24 110 141
22.1 24 111 141
22.2 24 111 141
22.3 24 112 141
22.4 24 112 141
22.5 24 113 146
22.6 24 113 146
22.7 24 114 146
22.8 24 114 146
22.9 24 115 146
23 24 115 146
23.1 24 116 146
23.2 24 116 146
23.3 24 117 146
23.4 24 117 146
23.5 24 118 146
23.6 24 118 146
23.7 24 119 146
23.8 24 119 151
23.9 24 120 151
24 24 120 151
24.1 28 121 151
24.2 28 121 151
24.3 28 122 151
24.4 28 122 151
24.5 28 123 151
24.6 28 123 151
24.7 28 124 151
24.8 28 124 151
24.9 28 125 151
25 28 125 151

 Milling Cutter Products For Aviation

Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine

keywords:carbide drill,carbide drill bits,tungsten carbide drill bits,drill,Aviation Tool,Cutting tools,Milling Cutter

Carbide Material

Carbide Material Data

Technical Info of Carbide Material
Type of Carbide MG
Micro Grain		 Super MG
Super Micro Grain		 NMG
Nano Micro Grain		 EMG
Extra Micro Grain
Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine
Chemical composition Co(%) 10 12 9 13
WC incl. Doping (%) 90 88 91 87
Physical Data Density ISO 3369 (g/cm3) 14.5 14.1 14.3 13.9
Hardness HV30 ISO 3878 1610 1680 2000 1700
Hardness HRA ISO 3778 91.9 92.3 94.1 92.4
Transverse Rupture Strength (N/mm2) >3600 >3800 >4000 >3900
Transverse Rupture Strength (1000 psi) >522 >551 >565 >565
Metallographic Data Porosity ISO 4505 A <=2 <=2 <=2 <=2
Porosity ISO 4505 B 00 00 00 00
Porosity ISO 4505 C 00 00 00 00
Microstructure Average Grain Size (um) 0.6 0.5 0.2 0.5
ISO-Range Classification ISO 513 K30 ~ K40 K40 ~ K50 K10 ~ K30 K40 ~ K50
Application Work Material Stainless steels Titanium alloys Plastics Non ferrous metals Corrosion and heat resistant steels Stainless steels Titanium alloys Non ferrous metals Corrosion and heat resistant steels Fibreglass-reinforced plastic Grey cast iron Carbon fibre-reinforeced materials Hardened steel Graphite composite materials Aluminium alloys Corrosion and heat resistant stells Stainless steels Titanium alloys Non ferrous matals
Characters Extra fine grain hard metal for solid carbide rotary tools applications in the ISO K30-K40/C2-C3. Suit for most cuttings. Superior grain for solid carbide rotary tools applications in very wide range ISO K40 -K50 / C1-C2. Great for low and high speed milling and roughing work when milling and boring. High hardness and extreme bending strength, suit for the drilling of electronic boards and other fibreglass-reinforced plastics and milling of difficult materials. Murakami-Etching


Characteristics of tool material is the major factor to influence the surface quality after machining, efficiency, and tool life.  It affords the direct cutting work during machining.   Mostly the cutting performance depends on the materials of cutting edge, the geometric parameters and the choice of the tool structure and design.  The productivity, tool life, tool consumption, processing costs, machining accuracy, and surface quality,..etc., almost depends on the choice of tool materials.



Carbide is made of difficult-to-fuse metal carbides (eg. WC, TiC, TaC, NbC, etc.) and the metal binder (eg. Co, Ni, etc.) powder by metallurgy method. It is with high hardness, good wear resistance, high heat resistance, and allowing higher cutting speed, several times higher than high-speed steel, but its strength and toughness are lower than high-speed steel, the craft is not as high-speed steel, so it is often made of various types of blades, welding or mechanical clamping on the turning tools, planer, end mill shank (cutter body).



In addition to the carbon and tungsten, of course it’s also plus cobalt and other alloys to increase its mechanical properties. Tungsten carbide is very hard, so it is often used to make cutting tools. The mechanical properties of tungsten steel consists of two parts, the first part is the cobalt content, which higher the content means the lower hardness, but the toughness is better; and the other is the powder particle size, the smaller the more wear-resistance, however it is more costly.

Coating



Coating of Cutter

The coating delivers a variety of benefits to extend tool life, including :

    • Superior oxidation resistance

High speed machining is always high temperature machining. Coating protects the tool by acting as a thermal barrier. It provides unparalleled performance in high temperature machining.

    • Lubricity layer for chip removal

High-temperature cutting with coating encourages the formation of a useful outer layer of aluminum oxide. This layer is both hard and slick. While the hardness helps with wear resistance, the slickness lubricates the hot chip to help it slide away without adhesion or heat transfer.

    • Abrasion resistance

A high performance coating which excellent at machining of abrasive and difficult-to-machine and harden materials such as cast iron, aluminum alloys, tool steels, graphite, titanium alloys and nickel alloys. Its abrasion resistance makes it effective for machining work materials.

Coating type

    • Nano TiAlN

The Titanium Aluminum nitride Coating, with purple black in color, is an effective coating for a wide variety of HSM applications.Effective coating for most applications. With benefits of high-temperature & abrasion resistance, extending tool life, and lubricity for chip removal. Great for dry machining and harden materials. Specialized in HSM applications.


    • AlTiN + PLC

This coating , with silver color and multi-layers, has superior performance on cutting stainless steel and difficult-to-cut materials.


    • DLC

Diamond like Carbon, tough coating for milling non-ferrous materials. Diamond!|s intrinsic hardness results in long wear characteristics for increasing production Available upon request.



Aerospace Tungsten Carbide Drill Bits For CNC Milling Machine



Coating treatment must be in proper arrangement in order to play a high-performance under the conditions of usage. Hence, we must understand the coating characteristics, and then applied to thecutting tool to achieve better results.

Depositing TiC, TiN, TiCN, Al2O3 ... hard ceramic coating with a few μm on carbide tool is more suitable for high speed machining than WC series, and with higher feed strength than ceramic.


Coating ALTiN ALTiN+PLC Diamond-like carbon (DLC)
Coating-temperature max (Celsius) 700 - 800 800 - 850 350-400
Substrate high speed steel, carbide, Cermet high speed steel, carbide, Cermet on request
Layers (sub-layer) Multi-layers Multi-layers Multi-layers
Thickness (um) 3 - 4 3 – 4 3 – 4
Friction against dry steel 0.4-0.45 0.15-0.2 0.1-0.15
Hardness (HV 0,05) 3200-3500 3200-3500 4000-6000
Application temperature max. (Celsius) < 800-900 < 800-950 < 350-400
Preferred machining materials For high speed & dry machining Stainless steel hard-to-cut material Soft material
Characteristic dry machining dry machining min. lubrication Super tough hardness
