Place of Origin Taiwan, China
Brand Name BW
Model Number CD
Type Core Drill Bit
Material High Speed Steel
Use Metal Drilling
Product Description

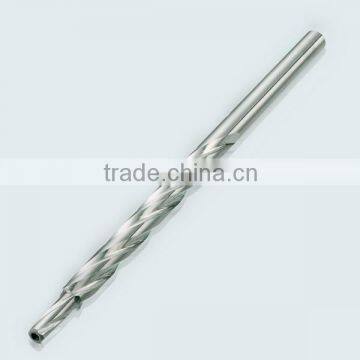

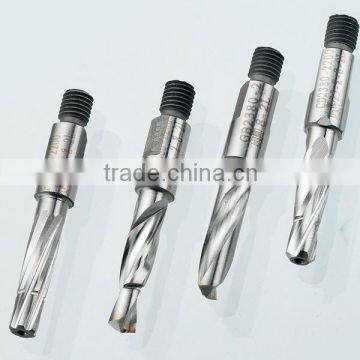

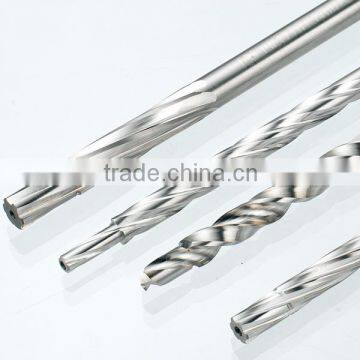

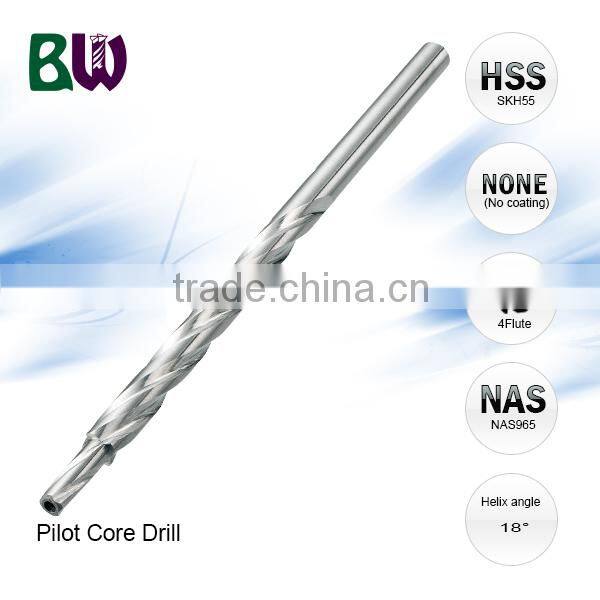

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

Product Name High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine
Place of Origin Taiwan
Material High Speed Steel - SKH55 or other
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.
  • Material:High Speed Steel - SKH55
  • Flute:2Flute
  • coating type: no coating or Can be customized (TiAlN/DLC etc.)
  • Helix angle : 18°
  • All of our cutters can be customized exclusively for our customers.

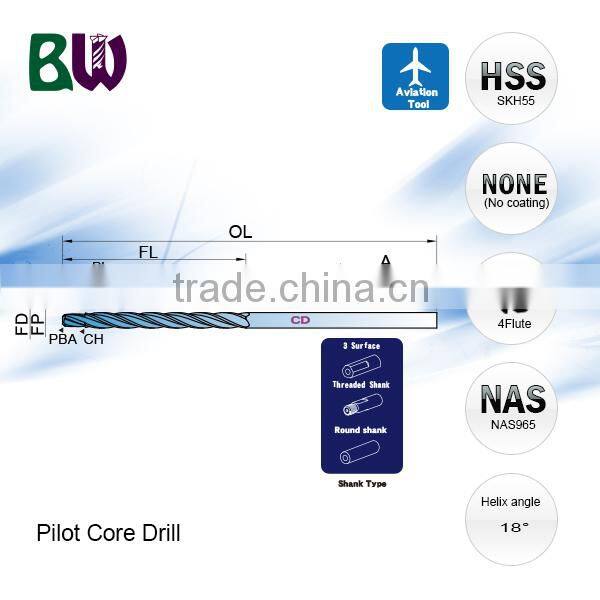

Core Drill Bit Specification:

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

unit:inch
Core Drill Bit
Order Code Flute
Z		 Body DIA.
FD		 Pilot DIA.
PD		 Pilot Length
PL		 Flute Length
FL		 Wrench Flats
A		 Helix Angle
 Body Gash Angle
CH		 Pilot Bevel Angle Total Length
OL		 Shank DIA.
SD
CD1285-1120-50-1-12 4 0.1285 0.112 0.5 1.5 1.5 18° 118° 45° 3.2 0.1285
CD1360-1190-50-1-12 4 0.136 0.119 0.5 1.5 1.5 18° 118° 45° 3.2 0.136
CD1405-1240-50-1-12 4 0.1405 0.124 0.5 1.5 1.5 18° 118° 45° 3.2 0.1405
CD1460-1240-50-1-12 4 0.146 0.124 0.5 1.5 1.5 18° 118° 45° 3.2 0.146
CD1440-1280-50-1-12 4 0.144 0.128 0.5 1.5 1.5 18° 118° 45° 3.2 0.144
CD1470-1280-50-1-12 4 0.147 0.128 0.5 1.5 1.5 18° 118° 45° 3.2 0.147
CD1495-1350-50-1-12 4 0.1495 0.135 0.5 1.5 1.5 18° 118° 45° 3.2 0.1495
CD1520-1350-50-1-12 4 0.152 0.135 0.5 1.5 1.5 18° 118° 45° 3.2 0.152
CD1540-1400-50-1-12 4 0.154 0.14 0.5 1.5 1.5 18° 118° 45° 3.2 0.154
CD1562-1400-50-1-12 4 0.1562 0.14 0.5 1.5 1.5 18° 118° 45° 3.2 0.1562
CD1570-1430-50-1-12 4 0.157 0.143 0.5 1.5 1.5 18° 118° 45° 3.2 0.157
CD1590-1460-50-1-16 4 0.159 0.146 0.5 2.5 1.5 18° 118° 45° 4.3 0.159
CD1610-1460-50-1-16 4 0.161 0.146 0.5 2.5 1.5 18° 118° 45° 4.3 0.161
CD1660-1510-50-1-16 4 0.166 0.151 0.5 2.5 1.5 18° 118° 45° 4.3 0.166
CD1696-1530-50-1-16 4 0.1696 0.153 0.5 2.5 1.5 18° 118° 45° 4.3 0.1696
CD1719-1550-50-1-16 4 0.1719 0.155 0.5 2.5 1.5 18° 118° 45° 4.3 0.1719
CD1730-1560-50-1-16 4 0.173 0.156 0.5 2.5 1.5 18° 118° 45° 4.3 0.173
CD1770-1600-50-1-16 4 0.177 0.16 0.5 2.5 1.5 18° 118° 45° 4.3 0.177
CD1800-1650-50-1-16 4 0.18 0.165 0.5 2.5 1.5 18° 118° 45° 4.3 0.18
CD1820-1650-50-1-16 4 0.182 0.165 0.5 2.5 1.5 18° 118° 45° 4.3 0.182
CD1850-1710-50-1-16 4 0.185 0.171 0.5 2.5 1.5 18° 118° 45° 4.3 0.185
CD1875-1710-50-1-16 4 0.1875 0.171 0.5 2.5 1.5 18° 118° 45° 4.3 0.1875
CD1890-1760-50-1-16 4 0.189 0.176 0.5 2.5 1.5 18° 118° 45° 4.3 0.189
CD1910-1760-50-116 4 0.191 0.176 0.5 2.5 1.5 18° 118° 45° 4.3 0.191
CD1935-1760-50-1-16 4 0.1935 0.176 0.5 2.5 1.5 18° 118° 45° 4.3 0.1935
CD1960-1790-50-1-16 4 0.196 0.179 0.5 2.5 1.5 18° 118° 45° 4.3 0.196
CD1990-1870-50-1-16 4 0.199 0.187 0.5 2.5 1.5 18° 118° 45° 4.3 0.199
CD2010-1870-50-1-16 4 0.201 0.187 0.5 2.5 1.5 18° 118° 45° 4.3 0.201
CD2030-1870-50-1-16 4 0.203 0.187 0.5 2.5 1.5 18° 118° 45° 4.3 0.203
CD2040-1900-50-1-16 4 0.204 0.19 0.5 2.5 1.5 18° 118° 45° 4.3 0.204
CD2055-1900-50-1-16 4 0.2055 0.19 0.5 2.5 1.5 18° 118° 45° 4.3 0.2055
CD2090-1900-50-1-16 4 0.209 0.19 0.5 2.5 1.5 18° 118° 45° 4.3 0.209
CD2130-1980-50-1-24 4 0.213 0.198 0.5 4.5 1.5 18° 118° 45° 6.7 0.213
CD2188-2020-50-1-24 4 0.2188 0.202 0.5 4.5 1.5 18° 118° 45° 6.7 0.2188
CD2210-2050-50-1-24 4 0.221 0.205 0.5 4.5 1.5 18° 118° 45° 6.7 0.221
CD2280-2120-50-1-24 4 0.228 0.212 0.5 4.5 1.5 18° 118° 45° 6.7 0.228
CD2340-2180-50-1-24 4 0.234 0.218 0.5 4.5 1.5 18° 118° 45° 6.7 0.234
CD2344-2180-50-1-24 4 0.2344 0.218 0.5 4.5 1.5 18° 118° 45° 6.7 0.2344
CD2380-2200-50-1-24 4 0.238 0.22 0.5 4.5 1.5 18° 118° 45° 6.7 0.238
CD2420-2270-50-1-24 4 0.242 0.227 0.5 4.5 1.5 18° 118° 45° 6.7 0.242
CD2460-2340-50-1-24 4 0.246 0.234 0.5 4.5 1.5 18° 118° 45° 6.7 0.246
CD2500-2340-50-1-24 4 0.25 0.234 0.5 4.5 1.5 18° 118° 45° 6.7 0.25
CD2570-2410-50-1-24 4 0.257 0.241 0.5 4.5 1.5 18° 118° 45° 6.7 0.257
CD2610-2450-50-1-24 4 0.261 0.245 0.5 4.5 1.5 18° 118° 45° 6.7 0.261
CD2658-2490-50-1-24 4 0.2658 0.249 0.5 4.5 1.5 18° 118° 45° 6.7 0.2658
CD2600-2490-50-1-24 4 0.26 0.249 0.5 4.5 1.5 18° 118° 45° 6.7 0.26
CD2720-2560-50-1-24 4 0.272 0.256 0.5 4.5 1.5 18° 118° 45° 6.7 0.272
CD2770-2650-50-1-24 4 0.277 0.265 0.5 4.5 1.5 18° 118° 45° 6.7 0.277
CD2810-2650-50-1-24 4 0.281 0.265 0.5 4.5 1.5 18° 118° 45° 6.7 0.281
CD2812-2650-50-1-24 4 0.2812 0.265 0.5 4.5 1.5 18° 118° 45° 6.7 0.2812
CD2900-2780-50-1-24 4 0.29 0.278 0.5 4.5 1.5 18° 118° 45° 6.7 0.29
CD2950-2800-50-1-24 4 0.295 0.28 0.5 4.5 1.5 18° 118° 45° 6.7 0.295
CD2969-2800-50-1-24 4 0.2969 0.28 0.5 4.5 1.5 18° 118° 45° 6.7 0.2969
CD3020-2890-50-1-24 4 0.302 0.289 0.5 4.5 1.5 18° 118° 45° 6.7 0.302
CD3125-2960-50-1-24 4 0.3125 0.296 0.5 4.5 1.5 18° 118° 45° 6.7 0.3125
CD3160-3010-50-1-24 4 0.316 0.301 0.5 4.5 1.5 18° 118° 45° 6.7 0.316
CD3230-3120-50-1-24 4 0.323 0.312 0.5 4.5 1.5 18° 118° 45° 6.7 0.323
CD3281-3120-50-1-24 4 0.3281 0.312 0.5 4.5 1.5 18° 118° 45° 6.7 0.3281
CD3320-3120-50-1-24 4 0.332 0.312 0.5 4.5 1.5 18° 118° 45° 6.7 0.332
CD3390-3270-50-1-24 4 0.339 0.327 0.5 4.5 1.5 18° 118° 45° 6.7 0.339
CD3438-3270-50-1-24 4 0.3438 0.327 0.5 4.5 1.5 18° 118° 45° 6.7 0.3438
CD3480-3310-50-1-24 4 0.348 0.331 0.5 4.5 1.5 18° 118° 45° 6.7 0.348
CD3580-3430-50-1-24 4 0.358 0.343 0.5 4.5 1.5 18° 118° 45° 7 0.358
CD3594-3430-50-1-24 4 0.3594 0.343 0.5 4.5 1.5 18° 118° 45° 7 0.3594
CD3680-3570-50-1-24 4 0.368 0.357 0.5 4.5 1.5 18° 118° 45° 7 0.368
CD3750-3590-50-1-24 4 0.375 0.359 0.5 4.5 1.5 18° 118° 45° 7 0.375
CD3770-3590-50-1-24 4 0.377 0.359 0.5 4.5 1.5 18° 118° 45° 7 0.377
CD3860-3590-50-1-24 4 0.386 0.359 0.5 4.5 1.5 18° 118° 45° 7 0.386
CD3906-3760-50-1-24 4 0.3906 0.376 0.5 4.5 1.5 18° 118° 45° 7 0.3906
CD3970-3850-50-1-24 4 0.397 0.385 0.5 4.5 1.5 18° 118° 45° 7 0.397
CD4040-3900-50-1-24 4 0.404 0.39 0.5 4.5 1.5 18° 118° 45° 7 0.404
CD4062-3900-50-1-24 4 0.4062 0.39 0.5 4.5 1.5 18° 118° 45° 7 0.4062
CD4130-3900-50-1-24 4 0.413 0.39 0.5 4.5 1.5 18° 118° 45° 7 0.413
CD4219-4050-50-1-24 4 0.4219 0.405 0.5 4.5 1.5 18° 118° 45° 7 0.4219
CD4375-4210-50-1-24 4 0.4375 0.421 0.5 4.5 1.5 18° 118° 45° 7 0.4375
CD4531-4370-50-1-24 4 0.4531 0.437 0.5 4.5 1.5 18° 118° 45° 7 0.4531
CD4688-4820-50-1-24 4 0.4688 0.452 0.5 4.5 1.5 18° 118° 45° 7 0.4688
CD4844-4680-50-1-24 4 0.4844 0.468 0.5 4.5 1.5 18° 118° 45° 7.5 0.4844
CD5000-4830-50-1-24 4 0.5 0.483 0.5 4.5 1.5 18° 118° 45° 7.5 0.5
CD5312-5140-50-1-24 4 0.5312 0.514 0.5 4.5 1.5 18° 118° 45° 7.5 0.5312
CD5625-5460-50-1-24 4 0.5625 0.546 0.5 4.5 1.5 18° 118° 45° 7.5 0.5625
CD5938-5610-50-1-24 4 0.5938 0.561 0.5 4.5 1.5 18° 118° 45° 7.5 0.5938
CD6250-5920-50-1-24 4 0.625 0.592 0.5 4.5 1.5 18° 118° 45° 7.5 0.625
CD6562-6240-50-1-24 4 0.6562 0.624 0.5 4.5 1.5 18° 118° 45° 8 0.6562
CD6875-6550-50-1-24 4 0.6875 0.655 0.5 4.5 1.5 18° 118° 45° 8 0.6875
CD7188-6860-50-1-24 4 0.7188 0.686 0.5 4.5 1.5 18° 118° 45° 8 0.7188
CD7500-7180-50-1-24 4 0.75 0.718 0.5 4.5 1.5 18° 118° 45° 8 0.75
CD7812-7490-50-1-24 4 0.7812 0.749 0.5 4.5 1.5 18° 118° 45° 8 0.7812
CD8125-7490-50-1-24 4 0.8125 0.749 0.5 4.5 1.5 18° 118° 45° 8 0.8125
CD8438-8110-50-1-24 4 0.8438 0.811 0.5 4.5 1.5 18° 118° 45° 8 0.8438
CD8750-8430-50-1-24 4 0.875 0.843 0.5 4.5 1.5 18° 118° 45° 8 0.875
CD9062-8740-50-1-24 4 0.9062 0.874 0.5 4.5 1.5 18° 118° 45° 8 0.9062
CD9375-9050-50-1-24 4 0.9375 0.905 0.5 4.5 1.5 18° 118° 45° 8 0.9375
CD9688-9360-50-1-24 4 0.9688 0.936 0.5 4.5 1.5 18° 118° 45° 8 0.9688
CD10000-9680-50-1-24 4 1 0.968 0.5 4.5 1.5 18° 118° 45° 9.5 1
CD10313-10000-50-1-24 4 1.0313 1 0.5 4.5 1.5 18° 118° 45° 9.5 1.0313
CD10625-10300-50-1-24 4 1.0625 1.03 0.5 4.5 1.5 18° 118° 45° 9.5 1.0625
CD10938-10620-50-1-24 4 1.0938 1.062 0.5 4.5 1.5 18° 118° 45° 9.5 1.0938
CD11250-10920-50-1-24 4 1.125 1.092 0.5 4.5 1.5 18° 118° 45° 9.5 1.125
CD11562-11240-50-1-24 4 1.1562 1.124 0.5 4.5 1.5 18° 118° 45° 9.5 1.1562
CD11875-11550-50-1-24 4 1.1875 1.155 0.5 4.5 1.5 18° 118° 45° 9.5 1.1875
CD12188-11870-50-1-24 4 1.2188 1.187 0.5 4.5 1.5 18° 118° 45° 9.5 1.2188
CD12500-12170-50-1-24 4 1.25 1.217 0.5 4.5 1.5 18° 118° 45° 9.5 1.25
CD12812-12490-50-1-24 4 1.2812 1.249 0.5 4.5 1.5 18° 118° 45° 9.5 1.2812
CD13126-12810-50-1-24 4 1.3126 1.281 0.5 4.5 1.5 18° 118° 45° 10 1.3126
CD13438-13120-50-1-24 4 1.3438 1.312 0.5 4.5 1.5 18° 118° 45° 10 1.3438
CD13750-13420-50-1-24 4 1.375 1.342 0.5 4.5 1.5 18° 118° 45° 10 1.375
CD14062-13740-50-1-24 4 1.4062 1.374 0.5 4.5 1.5 18° 118° 45° 10 1.4062
CD14375-14060-50-1-24 4 1.4375 1.406 0.5 4.5 1.5 18° 118° 45° 10 1.4375
CD14688-14370-50-1-24 4 1.4688 1.437 0.5 4.5 1.5 18° 118° 45° 10 1.4688
CD15000-14670-50-1-24 4 1.5 1.467 0.5 4.5 1.5 18° 118° 45° 10 1.5

 Milling Cutter Products For Aviation

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

keywords:steel core drill bit,core drill bit,For Electric Hand Drill Machine,core drill,Pneumatic hand drill,pneumatic drill,pneumatic air tool,Drill Bit, hss drill,drill machine,Aerospace,Pneumatic tool,Aviation Tool,Cutting tools,Milling Cutter

HSS Material

High Speed Steels

  • Production:Normally it is made by using electric furnace, recently it has been produced by powder metallurgy for high speed steel, which makes a very fine carbide particles uniformly distributed. On the substrate, the material life is prolonged.
  • Application:Being material of various cutting tools, cutter, drill, hob, saw blade, and high-end mold.

It is also named as wind steel or sharp steel, which means it can be hardened in air and sharp in quenching. A kind of complex alloy containing tungsten, molybdenum, chromium, vanadium, cobalt and carbide forming component .. which total elements content is 10~ 25% .. It may still maintain quite high hardness during high speed machining that caused high temperature (about 500 Centigrade) surrounding. The major benefit of high speed steel is its HRC above 60—Red Hardness.For carbon tool steel, after quenching and low temperature backfire , it remains high hardness under room temperature. However, the hardness will be reduced speedily when it is over 200 Centigrade and the hardness will be reduced into the same situation of backfire if the temperature up to 500 Centigrade, which already lost its ability of cutting metal. That is not suitable to produce cutting tool. High speed Steel is with good red hardness which may make up for the weakness of carbon tool steel so it can be used in manufacturing cutting tool.

Ralated Standards CNS GB JIS ASTM DIN
Steel Type SKH51 W6Mo5Cr4V2 SKH51 M2 S 6-5-2

Chemical composition (%)		 C 0.8-0.9 0.8-0.9 0.8-0.9 078-0.88 0.86-0.94
Si greater-than over equal to 0.45 0.2-0.4 greater-than over equal to 0.45 0.20-0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 0.15-0.40 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Cr 3.8-4.5 3.8-4.4 3.8-4.5 3.75-4.50 3.8-4.5
Mo 4.7-5.2 4.5-5.5 4.5-5.5 4.75-5.50 4.7-5.2
W 5.9-6.7 5.50-6.75 5.9-6.7 5.50-6.75 6.0-6.7
V 1.7-2.1 1.75-2.20 1.6-2.1 1.75-2.20 1.7-2.0
Co -- -- -- -- --
Cu greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 262 greater-than over equal to 255 greater-than over equal to 262 -- 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 63 greater-than over equal to 64 -- greater-than over equal to 64



Ralated Standards CNS GB JIS DIN
Steel Type SKH55 W6Mo5Cr4V2Co5 SKH55 S 6-5-2-5

Chemical composition (%)		 C 0.85-0.95 0.8-0.9 0.8-0.9 0.88-0.96
Si greater-than over equal to 0.45 0.2-0.45 greater-than over equal to 0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni -- 0.20-0.45 -- --
Cr 3.8-4.5 3.75-4.50 3.8-4.5 3.8-4.5
Mo 4.7-5.2 4. 5-5.5 4.7-5.2 4.7-5.2
W 5.9-6.7 5.5-6.5 5.9-6.7 6.0-6.7
V 1.7-2.1 1.75-2.25 1.7-2.1 1.7-2.0
Co 4.5-5.0 4.5-5.5 4.5-5.0 4.5-5.0
Cu -- -- -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 269 greater-than over equal to 269 greater-than over equal to 269 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64



Packaging & Shipping

Packaging

Packaging Details : Packaging Boxes + Cushioning material + Plastic box

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

Shipping

International Express :

High Speed Steel Pilot Core Drill Bit For Electric Hand Drill Machine

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Bewise Inc.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches
