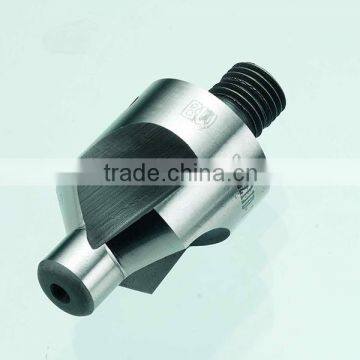

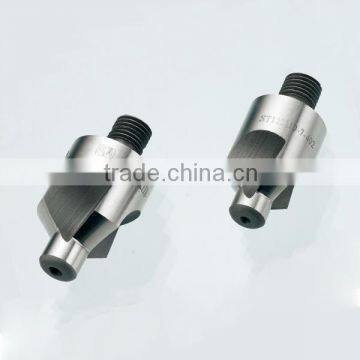

HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

 HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

Product Name HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool
Place of Origin Taiwan
Material High Speed Steel - SKH55 or other
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.

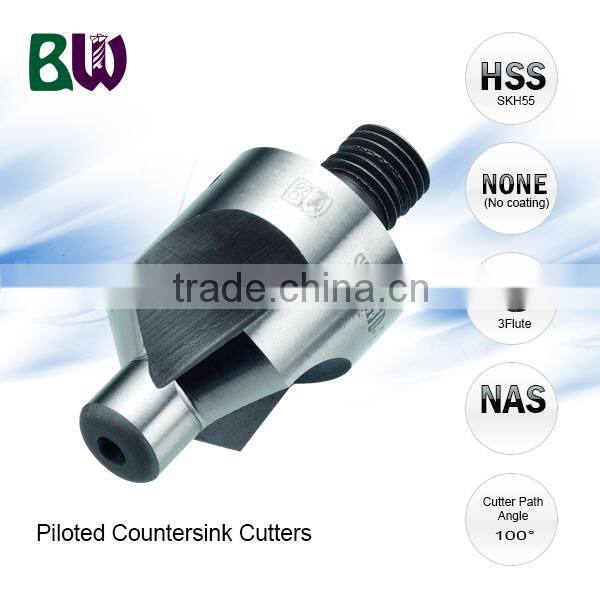

  • Material:High Speed Steel - SKH55
  • Flute:3Flute
  • coating type: no coating
  • Cutter Path Angle : 100°
  • All of our cutters can be customized exclusively for our customers.

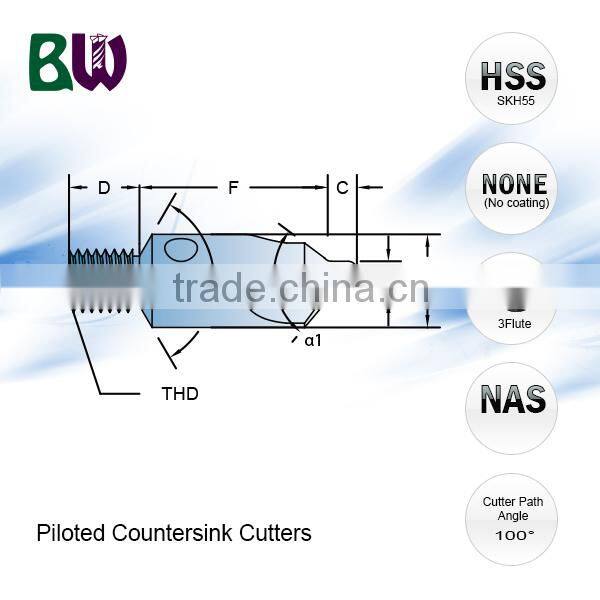

Piloted Countersink Drill Bit Specification:

 HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

unit:inch
ST1221JD-A Piloted Countersink Drill Bit
Order Code Flute
Z		 Pilot DIA.
A		 Body DIA.
B		 Pilot Length
C 		Body Length
F		 Cutter Path Angle
a1		 D Threded Relief Locating Angle
a2
ST1221JD-A-065 3 0.007 0.25 0.093 0.75 100° 0.312 0.03 120°
ST1221JD-A-096 3 0.01 0.25 0.108 0.75 100° 0.312 0.03 120°
ST1221JD-A-126 3 0.013 0.5 0.123 0.75 100° 0.312 0.03 120°
ST1221JD-A-145 3 0.015 0.5 0.14 0.75 100° 0.312 0.03 120°
ST1221JD-A-158 3 0.016 0.5 0.14 0.75 100° 0.312 0.03 120°
ST1221JD-A-190 3 0.019 0.5 0.155 0.75 100° 0.312 0.03 120°
ST1221JD-A-203 3 0.02 0.5 0.162 0.75 100° 0.312 0.03 120°
ST1221JD-A-234 3 0.023 0.5 0.17 0.75 100° 0.312 0.03 120°
ST1221JD-A-238 3 0.024 0.5 0.17 0.75 100° 0.312 0.03 120°
ST1221JD-A-252 3 0.025 0.625 0.188 0.75 100° 0.312 0.03 120°
ST1221JD-A-266 3 0.027 0.625 0.193 0.75 100° 0.312 0.03 120°
ST1221JD-A-285 3 0.029 0.625 0.204 0.75 100° 0.312 0.03 120°
ST1221JD-A-314 3 0.031 0.75 0.217 0.95 100° 0.312 0.03 120°
ST1221JD-A-346 3 0.035 0.75 0.233 0.95 100° 0.312 0.03 120°
ST1221JD-A-375 3 0.038 0.75 0.248 1.15 100° 0.312 0.03 120°
ST1221JD-A-411 3 0.041 0.75 0.266 1.15 100° 0.312 0.03 120°
unit:inch
ST1221JD-4 / ST1221JD-7 Piloted Countersink Drill Bit
Order Code Flute
Z		 Pilot DIA.
A		 Body DIA.
B		 Pilot Length
C 		Body Length
F		 Cutter Path Angle
a1		 D Threded Relief Tip Gash Radian
ST1221JD-4-158 3 0.0158 0.375 0.118 0.75 100° 0.312 120° 0.035
ST1221JD-4-160 3 0.016 0.375 0.118 0.75 100° 0.312 120° 0.035
ST1221JD-4-162 3 0.0162 0.375 0.118 0.75 100° 0.312 120° 0.035
ST1221JD-4-184 3 0.0184 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-186 3 0.0186 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-188 3 0.0188 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-197 3 0.0197 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-199 3 0.0199 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-201 3 0.0201 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-213 3 0.0213 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-215 3 0.0215 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-217 3 0.0217 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-229 3 0.0229 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-231 3 0.0231 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-232 3 0.0232 0.5 0.141 0.75 100° 0.312 120° 0.035
ST1221JD-4-244 3 0.0244 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-246 3 0.0246 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-248 3 0.0248 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-260 3 0.026 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-262 3 0.0262 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-264 3 0.0264 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-275 3 0.0275 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-277 3 0.0277 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-279 3 0.0279 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-291 3 0.0291 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-293 3 0.0293 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-295 3 0.0295 0.625 0.181 0.75 100° 0.312 120° 0.035
ST1221JD-4-306 3 0.0306 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-308 3 0.0308 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-311 3 0.0311 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-322 3 0.0322 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-324 3 0.0324 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-326 3 0.0326 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-338 3 0.0338 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-340 3 0.034 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-342 3 0.0342 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-354 3 0.0354 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-356 3 0.0356 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-358 3 0.0358 0.75 0.232 0.75 100° 0.312 120° 0.045
ST1221JD-4-368 3 0.0368 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-370 3 0.037 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-373 3 0.0373 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-385 3 0.0385 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-387 3 0.0387 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-389 3 0.0389 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-400 3 0.04 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-402 3 0.0402 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-404 3 0.0404 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-416 3 0.0416 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-418 3 0.0418 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-420 3 0.042 0.875 0.274 1.15 100° 0.437 120° 0.045
ST1221JD-4-431 3 0.0431 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-433 3 0.0433 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-436 3 0.0436 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-446 3 0.0446 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-449 3 0.0449 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-451 3 0.0451 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-463 3 0.0463 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-465 3 0.0465 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-467 3 0.0467 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-481 3 0.0481 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-483 3 0.0483 1 0.325 1.15 100° 0.437 120° 0.055
ST1221JD-4-494 3 0.0494 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-495 3 0.0495 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-498 3 0.0498 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-510 3 0.051 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-512 3 0.0512 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-514 3 0.0514 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-526 3 0.0526 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-527 3 0.0527 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-529 3 0.0529 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-543 3 0.0543 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-545 3 0.0545 1.125 0.366 1.15 100° 0.437 120° 0.055
ST1221JD-4-556 3 0.0556 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-558 3 0.0558 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-561 3 0.0561 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-572 3 0.0572 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-574 3 0.0574 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-576 3 0.0576 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-587 3 0.0587 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-590 3 0.059 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-592 3 0.0592 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-605 3 0.0605 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-607 3 0.0607 1.25 0.417 1.15 100° 0.437 120° 0.055
ST1221JD-4-618 3 0.0618 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-620 3 0.062 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-623 3 0.0623 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-634 3 0.0634 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-636 3 0.0636 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-639 3 0.0639 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-650 3 0.065 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-652 3 0.0652 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-654 3 0.0654 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-668 3 0.0668 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-670 3 0.067 1.375 0.458 1.15 100° 0.437 120° 0.055
ST1221JD-4-743 3 0.0743 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-745 3 0.0745 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-748 3 0.0748 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-759 3 0.0759 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-775 3 0.0775 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-873 3 0.0873 1.75 0.551 1.25 100° 0.437 120° 0.055
ST1221JD-4-998 3 0.0998 1.75 0.625 1.25 100° 0.5 120° 0.055
unit:inch
Others detailed specifications
Order Code ST1221JD-A ST1221JD-4 ST1221JD-7
Threaded Size 1/4-28 1/4-28 7/16-20
Axial Rake Angle 5° 5° 5°
Tip Radial Rake Angle 4° 4° 4°
Prinary Clearance Angle 8° 8° 8°
Tip Gash Radian 0.01 0.03 0.03
Body Hole 0.13 0.13 0.13

 Milling Cutter Products For Aviation

HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

keywords:steel core drill bit,core drill bit,For Electric Hand Drill Machine,core drill,Pneumatic hand drill,pneumatic drill,pneumatic air tool,Drill Bit, hss drill,drill machine,Aerospace,Pneumatic tool,Aviation Tool,Cutting tools,Milling Cutter

HSS Material

High Speed Steels

  • Production:Normally it is made by using electric furnace, recently it has been produced by powder metallurgy for high speed steel, which makes a very fine carbide particles uniformly distributed. On the substrate, the material life is prolonged.
  • Application:Being material of various cutting tools, cutter, drill, hob, saw blade, and high-end mold.

It is also named as wind steel or sharp steel, which means it can be hardened in air and sharp in quenching. A kind of complex alloy containing tungsten, molybdenum, chromium, vanadium, cobalt and carbide forming component .. which total elements content is 10~ 25% .. It may still maintain quite high hardness during high speed machining that caused high temperature (about 500 Centigrade) surrounding. The major benefit of high speed steel is its HRC above 60—Red Hardness.For carbon tool steel, after quenching and low temperature backfire , it remains high hardness under room temperature. However, the hardness will be reduced speedily when it is over 200 Centigrade and the hardness will be reduced into the same situation of backfire if the temperature up to 500 Centigrade, which already lost its ability of cutting metal. That is not suitable to produce cutting tool. High speed Steel is with good red hardness which may make up for the weakness of carbon tool steel so it can be used in manufacturing cutting tool.

Ralated Standards CNS GB JIS ASTM DIN
Steel Type SKH51 W6Mo5Cr4V2 SKH51 M2 S 6-5-2

Chemical composition (%)		 C 0.8-0.9 0.8-0.9 0.8-0.9 078-0.88 0.86-0.94
Si greater-than over equal to 0.45 0.2-0.4 greater-than over equal to 0.45 0.20-0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 0.15-0.40 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Cr 3.8-4.5 3.8-4.4 3.8-4.5 3.75-4.50 3.8-4.5
Mo 4.7-5.2 4.5-5.5 4.5-5.5 4.75-5.50 4.7-5.2
W 5.9-6.7 5.50-6.75 5.9-6.7 5.50-6.75 6.0-6.7
V 1.7-2.1 1.75-2.20 1.6-2.1 1.75-2.20 1.7-2.0
Co -- -- -- -- --
Cu greater-than over equal to 0.25 -- greater-than over equal to 0.25 -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 262 greater-than over equal to 255 greater-than over equal to 262 -- 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 63 greater-than over equal to 64 -- greater-than over equal to 64



Ralated Standards CNS GB JIS DIN
Steel Type SKH55 W6Mo5Cr4V2Co5 SKH55 S 6-5-2-5

Chemical composition (%)		 C 0.85-0.95 0.8-0.9 0.8-0.9 0.88-0.96
Si greater-than over equal to 0.45 0.2-0.45 greater-than over equal to 0.45 greater-than over equal to 0.45
Mn greater-than over equal to 0.4 0.15-0.4 greater-than over equal to 0.4 greater-than over equal to 0.4
P greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
S greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03 greater-than over equal to 0.03
Ni -- 0.20-0.45 -- --
Cr 3.8-4.5 3.75-4.50 3.8-4.5 3.8-4.5
Mo 4.7-5.2 4. 5-5.5 4.7-5.2 4.7-5.2
W 5.9-6.7 5.5-6.5 5.9-6.7 6.0-6.7
V 1.7-2.1 1.75-2.25 1.7-2.1 1.7-2.0
Co 4.5-5.0 4.5-5.5 4.5-5.0 4.5-5.0
Cu -- -- -- --
Mechanical properties
(Hardness)		 Annealing HB greater-than over equal to 269 greater-than over equal to 269 greater-than over equal to 269 240-300
Working Hardness HRC greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64 greater-than over equal to 64



Packaging & Shipping

Packaging

Packaging Details : Packaging Boxes + Cushioning material + Plastic box

HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

International Express :Shipping

HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

Our Services

HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.



HSS Piloted Countersink Drill Bit For Diameter Pneumatic Tool

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Bewise Inc.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches
