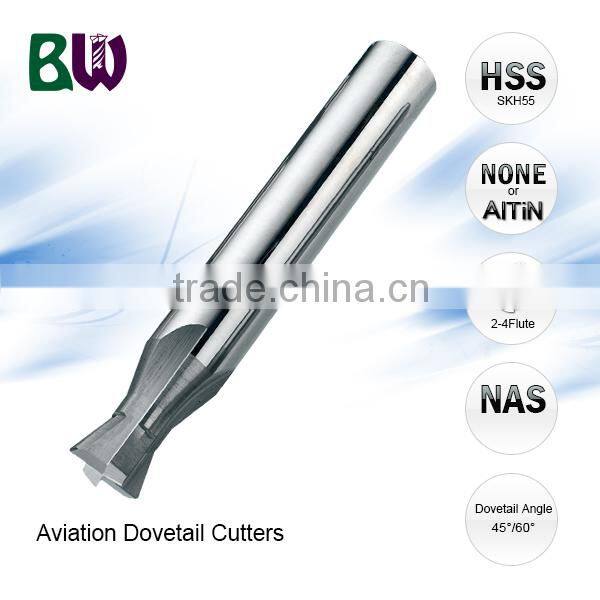

HSS Material Dovetail Slot Milling Cutter For Aerospace Industry
| Product Name | HSS Material Dovetail Slot Milling Cutter For Aerospace Industry |
| Place of Origin | Taiwan |
| Material | High Speed Steel - SKH55 or other |
| Type |
|
| Description |
|

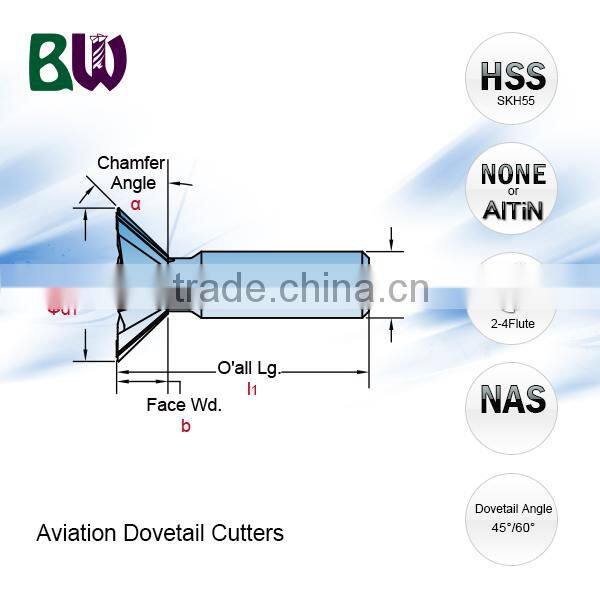

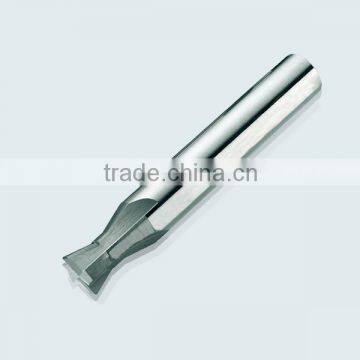

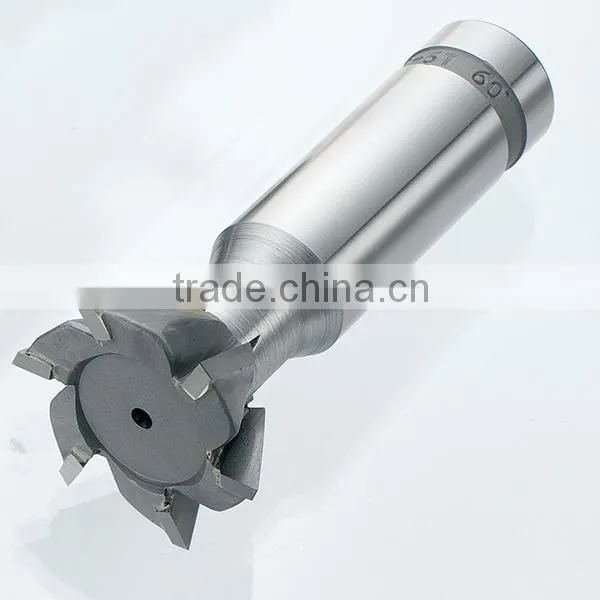

Dovetail Slot Milling Cutter Specification:
| unit:inch | |||||
| Dovetail Slot Milling Cutter | |||||
| Order Code | Cutter Dia. d1 |
Shank Dia. d2 |
O'all Lg. l1 |
Face Wd. b |
Dovetail Angle a |
| DC0375060 | 0.375 | 0.375 | 2.125 | 0.125 | 60° |
| DC0500060 | 0.5 | 0.375 | 2.125 | 0.125 | 60° |
| DC0750045 | 0.75 | 0.375 | 2.125 | 0.1875 | 45° |
| DC1375045 | 1.375 | 0.625 | 2.875 | 0.375 | 45° |
| DC1875045 | 1.875 | 0.875 | 3.25 | 0.5 | 45° |
| DC2250045 | 2.25 | 1 | 3.75 | 0.6875 | 45° |
| DC2500045 | 2.5 | 1 | 3.75 | 0.75 | 45° |
| DC0375060 | 0.375 | 0.375 | 2.125 | 0.1875 | 60° |
| DC0500060 | 0.5 | 0.375 | 2.125 | 0.21875 | 60° |
| DC0750060 | 0.75 | 0.375 | 2.125 | 0.3125 | 60° |

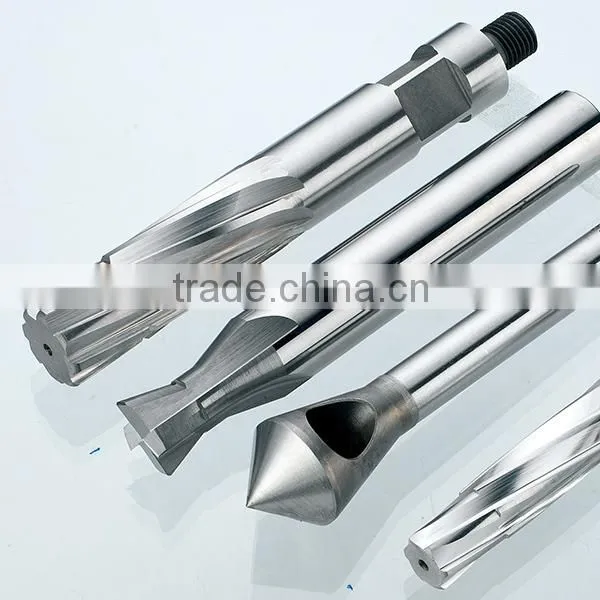

Milling Cutter Products For Aviation
keywords:dovetail cutter,HSS dovetail cutter,Dovetail Slot Milling Cutter,Aerospace Tool,Aviation Tool,Cutting tools,Milling Cutter
High Speed Steels
- Production:Normally it is made by using electric furnace, recently it has been produced by powder metallurgy for high speed steel, which makes a very fine carbide particles uniformly distributed. On the substrate, the material life is prolonged.
- Application:Being material of various cutting tools, cutter, drill, hob, saw blade, and high-end mold.
It is also named as wind steel or sharp steel, which means it can be hardened in air and sharp in quenching. A kind of complex alloy containing tungsten, molybdenum, chromium, vanadium, cobalt and carbide forming component .. which total elements content is 10~ 25% .. It may still maintain quite high hardness during high speed machining that caused high temperature (about 500 Centigrade) surrounding. The major benefit of high speed steel is its HRC above 60—Red Hardness.For carbon tool steel, after quenching and low temperature backfire , it remains high hardness under room temperature. However, the hardness will be reduced speedily when it is over 200 Centigrade and the hardness will be reduced into the same situation of backfire if the temperature up to 500 Centigrade, which already lost its ability of cutting metal. That is not suitable to produce cutting tool. High speed Steel is with good red hardness which may make up for the weakness of carbon tool steel so it can be used in manufacturing cutting tool.
| Ralated Standards | CNS | GB | JIS | ASTM | DIN | |
| Steel Type | SKH51 | W6Mo5Cr4V2 | SKH51 | M2 | S 6-5-2 | |
|
Chemical composition (%) |
C | 0.8-0.9 | 0.8-0.9 | 0.8-0.9 | 078-0.88 | 0.86-0.94 |
| Si | greater-than over equal to 0.45 | 0.2-0.4 | greater-than over equal to 0.45 | 0.20-0.45 | greater-than over equal to 0.45 | |
| Mn | greater-than over equal to 0.4 | 0.15-0.4 | greater-than over equal to 0.4 | 0.15-0.40 | greater-than over equal to 0.4 | |
| P | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | |
| S | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | |
| Ni | greater-than over equal to 0.25 | -- | greater-than over equal to 0.25 | -- | -- | |
| Cr | 3.8-4.5 | 3.8-4.4 | 3.8-4.5 | 3.75-4.50 | 3.8-4.5 | |
| Mo | 4.7-5.2 | 4.5-5.5 | 4.5-5.5 | 4.75-5.50 | 4.7-5.2 | |
| W | 5.9-6.7 | 5.50-6.75 | 5.9-6.7 | 5.50-6.75 | 6.0-6.7 | |
| V | 1.7-2.1 | 1.75-2.20 | 1.6-2.1 | 1.75-2.20 | 1.7-2.0 | |
| Co | -- | -- | -- | -- | -- | |
| Cu | greater-than over equal to 0.25 | -- | greater-than over equal to 0.25 | -- | -- | |
| Mechanical properties (Hardness) |
Annealing HB | greater-than over equal to 262 | greater-than over equal to 255 | greater-than over equal to 262 | -- | 240-300 |
| Working Hardness HRC | greater-than over equal to 64 | greater-than over equal to 63 | greater-than over equal to 64 | -- | greater-than over equal to 64 | |
| Ralated Standards | CNS | GB | JIS | DIN | |
| Steel Type | SKH55 | W6Mo5Cr4V2Co5 | SKH55 | S 6-5-2-5 | |
|
Chemical composition (%) |
C | 0.85-0.95 | 0.8-0.9 | 0.8-0.9 | 0.88-0.96 |
| Si | greater-than over equal to 0.45 | 0.2-0.45 | greater-than over equal to 0.45 | greater-than over equal to 0.45 | |
| Mn | greater-than over equal to 0.4 | 0.15-0.4 | greater-than over equal to 0.4 | greater-than over equal to 0.4 | |
| P | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | |
| S | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | greater-than over equal to 0.03 | |
| Ni | -- | 0.20-0.45 | -- | -- | |
| Cr | 3.8-4.5 | 3.75-4.50 | 3.8-4.5 | 3.8-4.5 | |
| Mo | 4.7-5.2 | 4. 5-5.5 | 4.7-5.2 | 4.7-5.2 | |
| W | 5.9-6.7 | 5.5-6.5 | 5.9-6.7 | 6.0-6.7 | |
| V | 1.7-2.1 | 1.75-2.25 | 1.7-2.1 | 1.7-2.0 | |
| Co | 4.5-5.0 | 4.5-5.5 | 4.5-5.0 | 4.5-5.0 | |
| Cu | -- | -- | -- | -- | |
| Mechanical properties (Hardness) |
Annealing HB | greater-than over equal to 269 | greater-than over equal to 269 | greater-than over equal to 269 | 240-300 |
| Working Hardness HRC | greater-than over equal to 64 | greater-than over equal to 64 | greater-than over equal to 64 | greater-than over equal to 64 | |
Coating of Cutter
The coating delivers a variety of benefits to extend tool life, including :
- Superior oxidation resistance
High speed machining is always high temperature machining. Coating protects the tool by acting as a thermal barrier. It provides unparalleled performance in high temperature machining.
- Lubricity layer for chip removal
High-temperature cutting with coating encourages the formation of a useful outer layer of aluminum oxide. This layer is both hard and slick. While the hardness helps with wear resistance, the slickness lubricates the hot chip to help it slide away without adhesion or heat transfer.
- Abrasion resistance
A high performance coating which excellent at machining of abrasive and difficult-to-machine and harden materials such as cast iron, aluminum alloys, tool steels, graphite, titanium alloys and nickel alloys. Its abrasion resistance makes it effective for machining work materials.
Coating type
- Nano TiAlN
The Titanium Aluminum nitride Coating, with purple black in color, is an effective coating for a wide variety of HSM applications.Effective coating for most applications. With benefits of high-temperature & abrasion resistance, extending tool life, and lubricity for chip removal. Great for dry machining and harden materials. Specialized in HSM applications.
- AlTiN + PLC
This coating , with silver color and multi-layers, has superior performance on cutting stainless steel and difficult-to-cut materials.
- DLC
Diamond like Carbon, tough coating for milling non-ferrous materials. Diamond!|s intrinsic hardness results in long wear characteristics for increasing production Available upon request.
Coating treatment must be in proper arrangement in order to play a high-performance under the conditions of usage. Hence, we must understand the coating characteristics, and then applied to thecutting tool to achieve better results.
Depositing TiC, TiN, TiCN, Al2O3 ... hard ceramic coating with a few μm on carbide tool is more suitable for high speed machining than WC series, and with higher feed strength than ceramic.

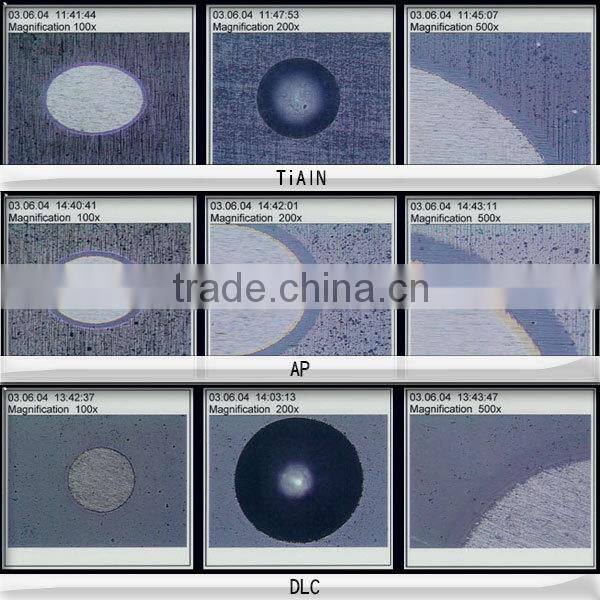

| Coating | ALTiN | ALTiN+PLC | Diamond-like carbon (DLC) |
| Coating-temperature max (Celsius) | 700 - 800 | 800 - 850 | 350-400 |
| Substrate | high speed steel, carbide, Cermet | high speed steel, carbide, Cermet | on request |
| Layers (sub-layer) | Multi-layers | Multi-layers | Multi-layers |
| Thickness (um) | 3 - 4 | 3 – 4 | 3 – 4 |
| Friction against dry steel | 0.4-0.45 | 0.15-0.2 | 0.1-0.15 |
| Hardness (HV 0,05) | 3200-3500 | 3200-3500 | 4000-6000 |
| Application temperature max. (Celsius) | < 800-900 | < 800-950 | < 350-400 |
| Preferred machining materials | For high speed & dry machining | Stainless steel hard-to-cut material | Soft material |
| Characteristic | dry machining | dry machining min. lubrication | Super tough hardness |
