HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-1
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-2
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-3
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-4
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-5
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill thumbnail-6
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-1
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-2
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-3
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-4
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-5
HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill photo-6
US$ 30 - 133 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
BW
Model Number:
PCD-2L
Contact Supplier Request Quote Chat Now
Bewise Inc.
Payment & Shipping
Payment Methods:
Port of Shipment:
by order
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name BW
Model Number PCD-2L
Type Core Drill Bit
Material High Speed Steel
Use Metal Drilling
Product Description

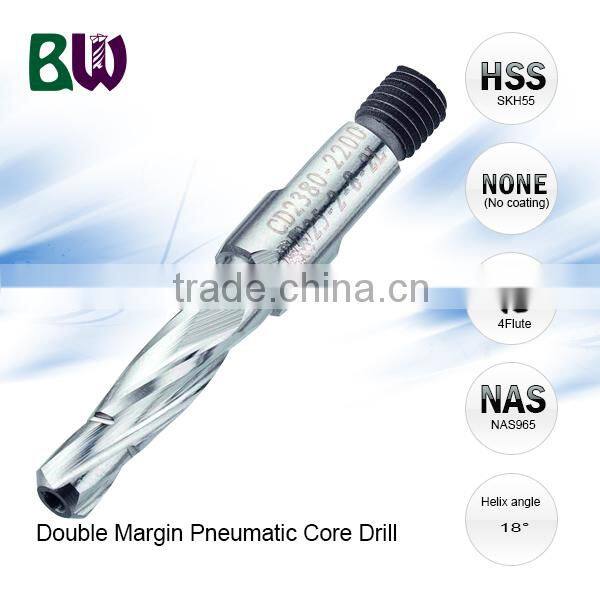

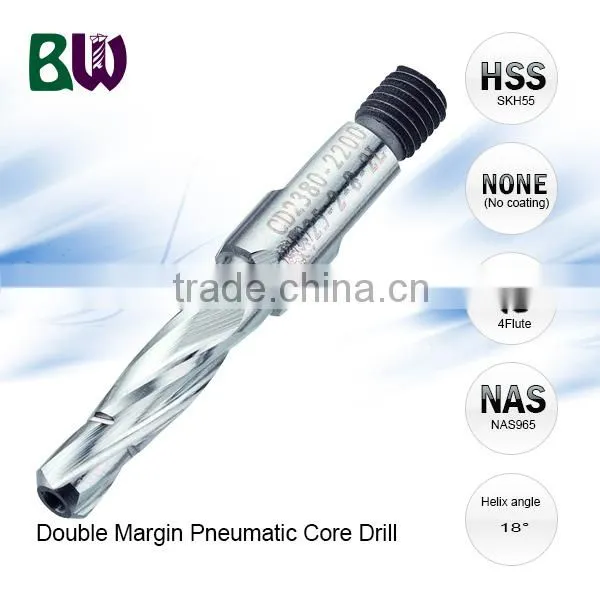

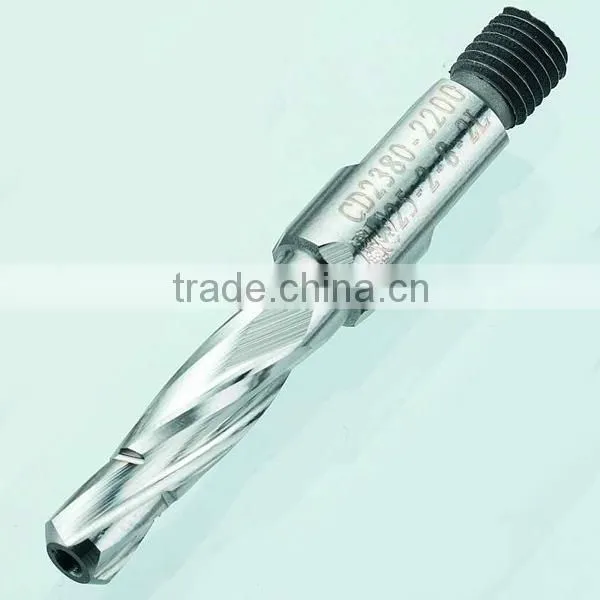

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

Product Name HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill
Place of Origin Taiwan
Material High Speed Steel - SKH55 or other
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.
  • Material:High Speed Steel - SKH55
  • Flute:2Flute
  • coating type: no coating or Can be customized (TiAlN/DLC etc.)
  • Helix angle : 18°
  • All of our cutters can be customized exclusively for our customers.

Core Drill Bit Specification:

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

unit:inch
Core Drill Bit
Order Code Flute
Z		 Body DIA.
FD		 Pilot DIA.
PD		 Pilot Length
PL		 Flute Length
FL		 Wrench Flats
A		 Helix Angle
 Body Gash Angle
CH		 Pilot Bevel Angle Total Length
OL		 Threaded Size Shank DIA.
SD
CD1285-1120-50-2-12-2L 4 0.1285 0.112 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1360-1190-50-2-12-2L 4 0.136 0.119 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1405-1240-50-2-12-2L 4 0.1405 0.124 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1460-1240-50-2-12-2L 4 0.146 0.124 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1440-1280-50-2-12-2L 4 0.144 0.128 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1470-1280-50-2-12-2L 4 0.147 0.128 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1495-1350-50-2-12-2L 4 0.1495 0.135 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1520-1350-50-2-12-2L 4 0.152 0.135 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1540-1400-50-2-12-2L 4 0.154 0.14 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1562-1400-50-2-12-2L 4 0.1562 0.14 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1570-1430-50-2-12-2L 4 0.157 0.143 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1590-1460-50-2-12-2L 4 0.159 0.146 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1610-1460-50-2-12-2L 4 0.161 0.146 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1660-1510-50-2-12-2L 4 0.166 0.151 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1696-1530-50-2-12-2L 4 0.1696 0.153 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1719-1550-50-2-12-2L 4 0.1719 0.155 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1730-1560-50-2-12-2L 4 0.173 0.156 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1770-1600-50-2-12-2L 4 0.177 0.16 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1800-1650-50-2-12-2L 4 0.18 0.165 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1820-1650-50-2-12-2L 4 0.182 0.165 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1850-1710-50-2-12-2L 4 0.185 0.171 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1875-1710-50-2-12-2L 4 0.1875 0.171 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1890-1760-50-2-12-2L 4 0.189 0.176 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1910-1760-50-2-12-2L 4 0.191 0.176 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1935-1760-50-2-12-2L 4 0.1935 0.176 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1960-1790-50-2-12-2L 4 0.196 0.179 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD1990-1870-50-2-12-2L 4 0.199 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2010-1870-50-2-12-2L 4 0.201 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2030-1870-50-2-12-2L 4 0.203 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2040-1900-50-2-12-2L 4 0.204 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2055-1900-50-2-12-2L 4 0.2055 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2090-1900-50-2-12-2L 4 0.209 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2130-1980-50-2-12-2L 4 0.213 0.198 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2188-2020-50-2-12-2L 4 0.2188 0.202 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2210-2050-50-2-12-2L 4 0.221 0.205 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2280-2120-50-2-12-2L 4 0.228 0.212 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2340-2180-50-2-12-2L 4 0.234 0.218 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2344-2180-50-2-12-2L 4 0.2344 0.218 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2380-2200-50-2-12-2L 4 0.238 0.22 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2420-2270-50-2-12-2L 4 0.242 0.227 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2460-2340-50-2-12-2L 4 0.246 0.234 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2500-2340-50-2-12-2L 4 0.25 0.234 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2570-2410-50-2-12-2L 4 0.257 0.241 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2610-2450-50-2-12-2L 4 0.261 0.245 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2658-2490-50-2-12-2L 4 0.2658 0.249 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2600-2490-50-2-12-2L 4 0.26 0.249 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2720-2560-50-2-12-2L 4 0.272 0.256 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2770-2650-50-2-12-2L 4 0.277 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2810-2650-50-2-12-2L 4 0.281 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2812-2650-50-2-12-2L 4 0.2812 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2900-2780-50-2-12-2L 4 0.29 0.278 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2950-2800-50-2-12-2L 4 0.295 0.28 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2969-2800-50-2-12-2L 4 0.2969 0.28 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3020-2890-50-2-12-2L 4 0.302 0.289 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3125-2960-50-2-12-2L 4 0.3125 0.296 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3160-3010-50-2-12-2L 4 0.316 0.301 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3230-3120-50-2-12-2L 4 0.323 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3281-3120-50-2-12-2L 4 0.3281 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3320-3120-50-2-12-2L 4 0.332 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3390-3270-50-2-12-2L 4 0.339 0.327 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3438-3270-50-2-12-2L 4 0.3438 0.327 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3480-3310-50-2-12-2L 4 0.348 0.331 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3580-3430-50-2-12-2L 4 0.358 0.343 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3594-3430-50-2-12-2L 4 0.3594 0.343 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3680-3570-50-2-12-2L 4 0.368 0.357 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3750-3590-50-2-12-2L 4 0.375 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3770-3590-50-4-12-2L 4 0.377 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3860-3590-50-4-12-2L 4 0.386 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3906-3760-50-4-12-2L 4 0.3906 0.376 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3970-3850-50-4-12-2L 4 0.397 0.385 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4040-3900-50-4-12-2L 4 0.404 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4062-3900-50-4-12-2L 4 0.4062 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4130-3900-50-4-12-2L 4 0.413 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4219-4050-50-4-12-2L 4 0.4219 0.405 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4375-4210-50-4-12-2L 4 0.4375 0.421 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4531-4370-50-4-12-2L 4 0.4531 0.437 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4688-4820-50-4-12-2L 4 0.4688 0.452 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4844-4680-50-4-12-2L 4 0.4844 0.468 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5000-4830-50-4-12-2L 4 0.5 0.483 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5312-5140-50-4-12-2L 4 0.5312 0.514 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5625-5460-50-4-16-2L 4 0.5625 0.546 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD5938-5610-50-4-16-2L 4 0.5938 0.561 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6250-5920-50-4-16-2L 4 0.625 0.592 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6562-6240-50-4-16-2L 4 0.6562 0.624 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6875-6550-50-4-16-2L 4 0.6875 0.655 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7188-6860-50-4-16-2L 4 0.7188 0.686 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7500-7180-50-4-16-2L 4 0.75 0.718 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7812-7490-50-4-16-2L 4 0.7812 0.749 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8125-7490-50-4-16-2L 4 0.8125 0.749 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8438-8110-50-4-16-2L 4 0.8438 0.811 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8750-8430-50-4-16-2L 4 0.875 0.843 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9062-8740-50-4-16-2L 4 0.9062 0.874 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9375-9050-50-4-16-2L 4 0.9375 0.905 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9688-9360-50-4-16-2L 4 0.9688 0.936 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10000-9680-50-4-16-2L 4 1 0.968 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10313-10000-50-4-16-2L 4 1.0313 1 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10625-10300-50-4-16-2L 4 1.0625 1.03 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10938-10620-50-4-16-2L 4 1.0938 1.062 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11250-10920-50-4-16-2L 4 1.125 1.092 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11562-11240-50-4-16-2L 4 1.1562 1.124 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11875-11550-50-4-16-2L 4 1.1875 1.155 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12188-11870-50-4-16-2L 4 1.2188 1.187 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12500-12170-50-4-16-2L 4 1.25 1.217 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12812-12490-50-4-16-2L 4 1.2812 1.249 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13126-12810-50-4-16-2L 4 1.3126 1.281 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13438-13120-50-4-16-2L 4 1.3438 1.312 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13750-13420-50-4-16-2L 4 1.375 1.342 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14062-13740-50-4-16-2L 4 1.4062 1.374 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14375-14060-50-4-16-2L 4 1.4375 1.406 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14688-14370-50-4-16-2L 4 1.4688 1.437 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD15000-14670-50-4-16-2L 4 1.5 1.467 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25



 Milling Cutter Products For Aviation

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

keywords:pneumatic drill,HSS core drill,Aircraft Drill,core drill,Pneumatic hand drill,Pneumatic hand drill,pneumatic drill,pneumatic air tool,Drill Bit,hss drill,Aerospace,Pneumatic tool,Aviation Tool,Cutting tools,Milling Cutter

Packaging & Shipping

Packaging

Packaging Details : Packaging Boxes + Cushioning material + Plastic box

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill




Shipping

International Express :

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

Our Services

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

Welcome to receive your inquiry for other special specifications if any. We love hearing from our customers, so your comments and feedback are always welcome.




Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.




 Company Contact Information

Head Office:No. 13, Shiang Shang 2nd St.,West Chiu, Taichung, Taiwan 40356

Tel:886- 4 -2471-0048

Fax: 886- 4 -2471-4839

Please update us from our site to get the newest product info.

Skype: miachang5953 or moli995

HSS Double Margin Pneumatic Core Drill For Aircraft Pneumatic Drill

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Bewise Inc.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches
