Place of Origin Taiwan, China
Brand Name BW
Model Number PCD
Type Core Drill Bit
Material High Speed Steel
Use Metal Drilling
Product Description

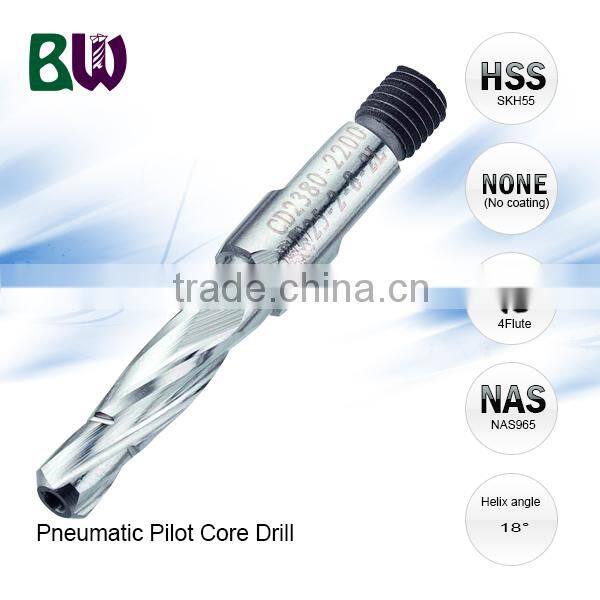

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

Product Name HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill
Place of Origin Taiwan
Material High Speed Steel - SKH55 or other
Type
  • Cutting Tools
  • Aviation Tool
Description
  • Application:
    • Great for general cutting.
    • Apply in machining special material of aerospace industry.
  • Material:High Speed Steel - SKH55
  • Flute:2Flute
  • coating type: no coating or Can be customized (TiAlN/DLC etc.)
  • Helix angle : 18°
  • All of our cutters can be customized exclusively for our customers.

Core Drill Bit Specification:

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

unit:inch
Core Drill Bit
Order Code Flute
Z		 Body DIA.
FD		 Pilot DIA.
PD		 Pilot Length
PL		 Flute Length
FL		 Wrench Flats
A		 Helix Angle
 Body Gash Angle
CH		 Pilot Bevel Angle Total Length
OL		 Threaded Size Shank DIA.
SD
CD1285-1120-50-2-8 4 0.1285 0.112 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1360-1190-50-2-8 4 0.136 0.119 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1405-1240-50-2-8 4 0.1405 0.124 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1460-1240-50-2-8 4 0.146 0.124 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1440-1280-50-2-8 4 0.144 0.128 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1470-1280-50-2-8 4 0.147 0.128 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1495-1350-50-2-8 4 0.1495 0.135 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1520-1350-50-2-8 4 0.152 0.135 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1540-1400-50-2-8 4 0.154 0.14 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1562-1400-50-2-8 4 0.1562 0.14 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1570-1430-50-2-8 4 0.157 0.143 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1590-1460-50-2-8 4 0.159 0.146 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1610-1460-50-2-8 4 0.161 0.146 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1660-1510-50-2-8 4 0.166 0.151 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1696-1530-50-2-8 4 0.1696 0.153 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1719-1550-50-2-8 4 0.1719 0.155 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1730-1560-50-2-8 4 0.173 0.156 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1770-1600-50-2-8 4 0.177 0.16 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1800-1650-50-2-8 4 0.18 0.165 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1820-1650-50-2-8 4 0.182 0.165 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1850-1710-50-2-8 4 0.185 0.171 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1875-1710-50-2-8 4 0.1875 0.171 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1890-1760-50-2-8 4 0.189 0.176 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1910-1760-50-2-8 4 0.191 0.176 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1935-1760-50-2-8 4 0.1935 0.176 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1960-1790-50-2-8 4 0.196 0.179 0.5 1.5 0.25 18° 118° 45° 2 1/4-28 0.25
CD1990-1870-50-2-12 4 0.199 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2010-1870-50-2-12 4 0.201 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2030-1870-50-2-12 4 0.203 0.187 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2040-1900-50-2-12 4 0.204 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2055-1900-50-2-12 4 0.2055 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2090-1900-50-2-12 4 0.209 0.19 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2130-1980-50-2-12 4 0.213 0.198 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2188-2020-50-2-12 4 0.2188 0.202 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2210-2050-50-2-12 4 0.221 0.205 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2280-2120-50-2-12 4 0.228 0.212 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2340-2180-50-2-12 4 0.234 0.218 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2344-2180-50-2-12 4 0.2344 0.218 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2380-2200-50-2-12 4 0.238 0.22 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2420-2270-50-2-12 4 0.242 0.227 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2460-2340-50-2-12 4 0.246 0.234 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2500-2340-50-2-12 4 0.25 0.234 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2570-2410-50-2-12 4 0.257 0.241 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2610-2450-50-2-12 4 0.261 0.245 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2658-2490-50-2-12 4 0.2658 0.249 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2600-2490-50-2-12 4 0.26 0.249 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2720-2560-50-2-12 4 0.272 0.256 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2770-2650-50-2-12 4 0.277 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2810-2650-50-2-12 4 0.281 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2812-2650-50-2-12 4 0.2812 0.265 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2900-2780-50-2-12 4 0.29 0.278 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2950-2800-50-2-12 4 0.295 0.28 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD2969-2800-50-2-12 4 0.2969 0.28 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3020-2890-50-2-12 4 0.302 0.289 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3125-2960-50-2-12 4 0.3125 0.296 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3160-3010-50-2-12 4 0.316 0.301 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3230-3120-50-2-12 4 0.323 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3281-3120-50-2-12 4 0.3281 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3320-3120-50-2-12 4 0.332 0.312 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3390-3270-50-2-12 4 0.339 0.327 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3438-3270-50-2-12 4 0.3438 0.327 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3480-3310-50-2-12 4 0.348 0.331 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3580-3430-50-2-12 4 0.358 0.343 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3594-3430-50-2-12 4 0.3594 0.343 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3680-3570-50-2-12 4 0.368 0.357 0.5 2.5 0.25 18° 118° 45° 3 1/4-28 0.25
CD3750-3590-50-4-12 4 0.375 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3770-3590-50-4-12 4 0.377 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3860-3590-50-4-12 4 0.386 0.359 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3906-3760-50-4-12 4 0.3906 0.376 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD3970-3850-50-4-12 4 0.397 0.385 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4040-3900-50-4-12 4 0.404 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4062-3900-50-4-12 4 0.4062 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4130-3900-50-4-12 4 0.413 0.39 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4219-4050-50-4-12 4 0.4219 0.405 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4375-4210-50-4-12 4 0.4375 0.421 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4531-4370-50-4-12 4 0.4531 0.437 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4688-4820-50-4-12 4 0.4688 0.452 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD4844-4680-50-4-12 4 0.4844 0.468 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5000-4830-50-4-12 4 0.5 0.483 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5312-5140-50-4-12 4 0.5312 0.514 0.5 2.5 0.25 18° 118° 45° 3 3/8-24 0.25
CD5625-5460-50-4-16 4 0.5625 0.546 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD5938-5610-50-4-16 4 0.5938 0.561 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6250-5920-50-4-16 4 0.625 0.592 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6562-6240-50-4-16 4 0.6562 0.624 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD6875-6550-50-4-16 4 0.6875 0.655 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7188-6860-50-4-16 4 0.7188 0.686 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7500-7180-50-4-16 4 0.75 0.718 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD7812-7490-50-4-16 4 0.7812 0.749 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8125-7490-50-4-16 4 0.8125 0.749 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8438-8110-50-4-16 4 0.8438 0.811 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD8750-8430-50-4-16 4 0.875 0.843 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9062-8740-50-4-16 4 0.9062 0.874 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9375-9050-50-4-16 4 0.9375 0.905 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD9688-9360-50-4-16 4 0.9688 0.936 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10000-9680-50-4-16 4 1 0.968 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10313-10000-50-4-16 4 1.0313 1 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10625-10300-50-4-16 4 1.0625 1.03 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD10938-10620-50-4-16 4 1.0938 1.062 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11250-10920-50-4-16 4 1.125 1.092 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11562-11240-50-4-16 4 1.1562 1.124 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD11875-11550-50-4-16 4 1.1875 1.155 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12188-11870-50-4-16 4 1.2188 1.187 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12500-12170-50-4-16 4 1.25 1.217 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD12812-12490-50-4-16 4 1.2812 1.249 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13126-12810-50-4-16 4 1.3126 1.281 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13438-13120-50-4-16 4 1.3438 1.312 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD13750-13420-50-4-16 4 1.375 1.342 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14062-13740-50-4-16 4 1.4062 1.374 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14375-14060-50-4-16 4 1.4375 1.406 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD14688-14370-50-4-16 4 1.4688 1.437 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25
CD15000-14670-50-4-16 4 1.5 1.467 0.5 3.5 0.25 18° 118° 45° 4 3/8-24 0.25

 Milling Cutter Products For Aviation

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

keywords:core drill,Pneumatic hand drill,Pneumatic hand drill,pneumatic drill,pneumatic air tool,Drill Bit,hss drill,Aerospace,Pneumatic tool,Aviation Tool,Cutting tools,Milling Cutter

Packaging & Shipping

Packaging

Packaging Details : Packaging Boxes + Cushioning material + Plastic box

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill




Shipping

International Express :

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

Our Services

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

Welcome to receive your inquiry for other special specifications if any. We love hearing from our customers, so your comments and feedback are always welcome.




Our products quality has passed strict quality control procedures in line with international standards, then delivers to the customers’ hands. Current products include end mill, ball nose end mill, long flute end mill, and corner radius end mill,welding/blazed carbide cutter,Center drill, like circular saw for various applications and PCD diamond tool which is hot recently,dental specialized cutter;cutter specialized in cutting stainless steel; aerospace tool,Cutter for Acrylic,paper slitter, jewelry cutter; special tool use for lathes, milling machines, punch, Powder Forming Machine,Spiral Tube Cooler,Molding Power Inductor,Dynamic Balance Instrument,etc.




 Company Contact Information

Head Office:No. 13, Shiang Shang 2nd St.,West Chiu, Taichung, Taiwan 40356

Tel:886- 4 -2471-0048

Fax: 886- 4 -2471-4839

Please update us from our site to get the newest product info.

Skype: miachang5953 or moli995

HSS Material Pneumatic Pilot Core Drill For Pneumatic Hand Drill

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Bewise Inc.
Business Type
Manufacturer, Trading Company
Year Established
2003
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches
