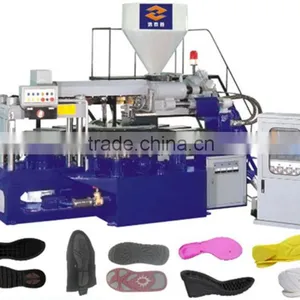

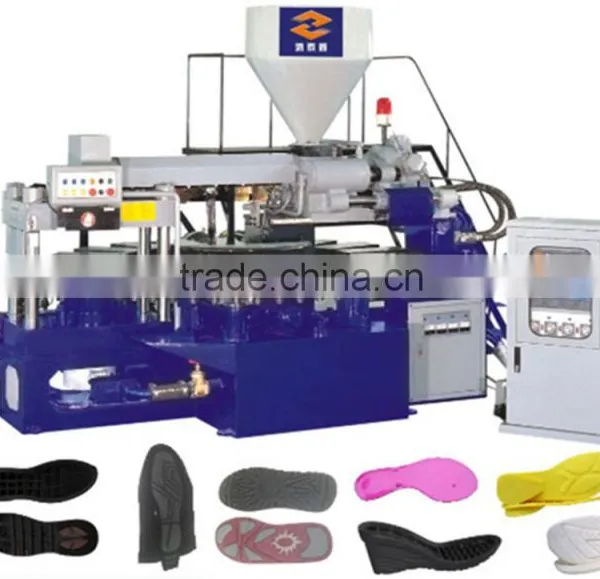

Rotary TPR/PVC Plasitc Sole Injection Moulding Machine (1/2 Color)

Rotary TPR/PVC Plasitc Sole Injection Moulding Machine (1/2 Color) thumbnail-1
Rotary TPR/PVC Plasitc Sole Injection Moulding Machine (1/2 Color) photo-1
US$ 23000.00 - 23000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
125Pairs/hour
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Dongguan City Hongtaixin Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 125Pairs/hour
Place of Origin Guangdong, China
Brand Name Hongtaixin
Model Number HM-118W
Voltage 3-Phase 110/220/380V
Power(W) 18.5KW
Dimension(L*W*H) 4200X3500X1650MM
Weight 6000KGS
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Company Information

 HONKING Machinery Equipment Co., Ltd. Is a premier manufacturer of shoes making machine and related equipments.

Our factory is located in Dongguan, China which is called as "World Factory" and "Shoes Capital of Asia". We focus on the innovation, research and make of shoe making machine, and also work hard to solve various kinds of injection technology. We have machine for all kinds of material which have different type and hardness, such as TPR, PVC, TPU, TR, EVA, PU, RUBBER and so on.

Our professional products are as followed:

1. PVC shoes air blowing machine (1/2 color)

2. PVC jelly shoes injection moulding machine (1/2/3 color)

3. Rain boots injection moulding machine(1/2 color)

4. Rotary TPR/PVC/TPU/TR outsole injection moulding machine (1/2/3 color)

5. Vertical TPR/PVC/TPU/TR injection moulding machine (1/2 color)

6. EVA shoes injection moulding machine (1/2 color)

7. RUBBER injection moulding machine

8. Silicone injection moulding machine

9. PU injection moulding machine

10. PVC upper injection moulding machine (1/2/3 color)

We have been working well exporting to Europe, Africa, Asia, South America, Middle East, Russia, Turkey and so on. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "Quality First, Customer Supreme" and providing our best sales services for our customers. Our team of experienced engineers strives to continuously improve our technologies-----from hardware design to machine components making them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.

Product Description

1.This machine is used to produce various kinds of one color outsoles for sport shoes, leisure shoes, slippers, sandals, man's and lady's shoes in general, etc.
2.It is suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
3.Machine operation is controlled by full automatic computer and PLC. Saving labour and improving productivity.
4.The oil and electric circuit is controlled independently. To reduce the waiting time, produce faster.
5.The injection volume of each station can be setted independently . It can use different moulds at the same time in one machine. It saves the time of mould-change and extends the cooling time.
Specification

Item UNIT HM-108-2C
Screw diameter mm Ø70,Ø65
Max. Injection volume cm3 900×1,650×1
Heating bands power Kw 7×2
Temperature control Set 4
Screw rotation speed r.p.m 0-200
Max. Injection stroke mm 210
Motor Kw 18.5×2 set
Clamping force Ton 80
Work stations stations 20
Space for mould mm 420x320x220
Machine dimension mm(LxWxH) 5000x3950x2200
2700x1600x2300
Installation dimension mm(LxWxH) 7000x7000x2300
Machine weight kg 12500



Our Services

 Remarks:
     1,The machine one year warranty;

     2,Installation place we will send technical personnel to the buyer for 3-7 days;

     4, The buyer is responsible for visas and orund-trip air tickets and shall be responsible for the food and lodging;

     5,More than 7 days, the buyer will provide us engineer daily $100;
Any confusion, pls. feel free to contact us . Looking forward to cooperating with YOU!
