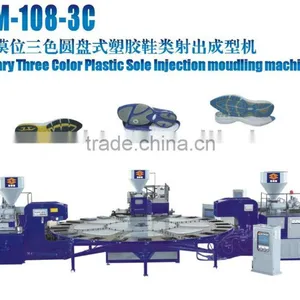

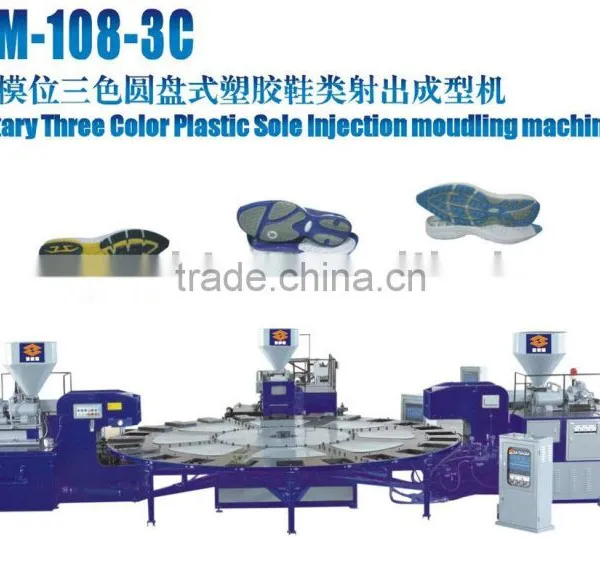

TPR 3 COLOR SPORT SHOE SOLE INJECTION MACHINE
1.This machine is suitable for all kinds of thermoplastic raw materials,foaming or non-foaming,such as PVC,TPR etc. for soles injecting.
2. The close mold with two steps control make no damage to the mold,materials are injected by two stepspressures.
3.The rotary driving uses oil pressure motor,and its free controlled noiseless for material supplying speed. All material supplying capacity is controlled by computer,it is always with standard material supplying capacity.
4.This machine can produce one /two/three color products.
5.The machines output is 150 pair/hour.
Specification TPR 3 COLOR SPORT SHOE SOLE INJECTION MACHINE
Technical Terms |
UNIT |
HM-108-3C |
Injecting screw diameter |
mm |
65×2 set 7×1 set |
Injecting capacity |
cm3/shot |
650×2 900×2 |
Electric heat capacity |
kw |
7×2 8×1 |
Temperature control |
point |
4 |
Screw speed |
r.p.m |
0-200 |
Motor of spiral oil pressure |
kg-m |
230 |
Injection stroke |
mm |
210 |
Power of oil-pump |
Hp |
30×3 set |
Clamping force |
Kg/ cm2 |
80 |
Work station |
24 |
|
Max.dimension of mold |
mm |
720x320x190 |
Machine dimension |
mm(LxWxH) |
7600x10600x2360 |
Installation dimension |
mm(LxWxH) |
2500x2500x1100 (3500x2280x2050)×3 |
N.W. |
kg |
13000,3600×3 |
G.W. |
kg |
14300,4400×3 |
