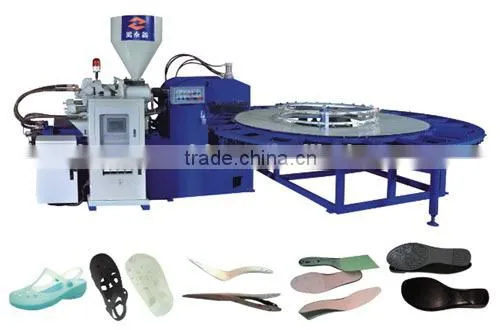

Help CenterRotary TPU/PP Insole Moulding Machine
Related Products
-
Rotary TPU/TR Injection Moulding Machine (1/2 Color)US$ 29000.00 - 29000.00MOQ: 1 Set -
Automatic Rubber Sole Hydraulic Moulding MachineUS$ 21000.00 - 21000.00MOQ: 1 Set
-
Rotary 1/2/3 Color PVC Sole Injection Moulding Machine (Energy Saving)US$ 31000.00 - 31000.00MOQ: 1 Set
-
TPR 3 COLOR SPORT SHOE SOLE INJECTION MACHINEUS$ 1 - 1.1MOQ: 1 Set
-
Rotary Double Color TPU/TR PVC Shoe Sole Making MachineUS$ 1 - 1.1MOQ: 1 Set
HONKING Machinery Equipment Co., Ltd. Is a premier manufacturer of shoes making machine and related equipments.
Our factory is located in Dongguan, China which is called as "World Factory" and "Shoes Capital of Asia". We focus on the innovation, research and make of shoe making machine, and also work hard to solve various kinds of injection technology. We have machine for all kinds of material which have different type and hardness, such as TPR, PVC, TPU, TR, EVA, PU, RUBBER and so on.
Our professional products are as followed:
1. PVC shoes air blowing machine (1/2 color)
2. PVC jelly shoes injection moulding machine (1/2/3 color)
3. Rain boots injection moulding machine(1/2 color)
4. Rotary TPR/PVC/TPU/TR outsole injection moulding machine (1/2/3 color)
5. Vertical TPR/PVC/TPU/TR injection moulding machine (1/2 color)
6. EVA shoes injection moulding machine (1/2 color)
7. RUBBER injection moulding machine
8. Silicone injection moulding machine
9. PU injection moulding machine
10. PVC upper injection moulding machine (1/2/3 color)
We have been working well exporting to Europe, Africa, Asia, South America, Middle East, Russia, Turkey and so on. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "Quality First, Customer Supreme" and providing our best sales services for our customers. Our team of experienced engineers strives to continuously improve our technologies-----from hardware design to machine components making them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
1.Machine operation is controlled by full automatic computer and PLC. Saving labour and improving productivity.
2.The oil and electric circuit is controlled independently. To reduce the waiting time, producing faster. The injection pressure, volume and time is controlled by double proportional pressure.
3.The injection volume of each station can be setted independently. It can use different moulds at the same machine. It saves the time of mould-changing and extends the cooling time.
4.Servo system is selectable to save electricity. Auto opener is also selectable to save labour. (These two items can be selected by customers.)
Specification
| Technical Terms | UNIT | HM-118w |
| Screw diameter | mm | 60 |
| Max. Injection volume | cm3 | 800 |
| Heating bands power | kw | 5 |
| Temperature control | point | 4 |
| Screw rotation speed | r.p.m. | 0 - 200 |
| Max. Injection stroke | mm | 210 |
| Motor | hp | 30 |
| Clamping force | tons | 120 |
| Work stations | stations | 16 |
| Space for mould | mm(L*W*H) | 420 x 300 x 160 |
| Machine dimension | mm(L*W*H) | 3650x2300x1800 |
| Installation dimension | mm(L*W*H) | 5000 x 3500 x 2300 |
| Machine weight | kg | 6000 |
Remarks:
1,The machine one year warranty;
2,Installation place we will send technical personnel to the buyer for 3-7 days;
4, The buyer is responsible for visas and orund-trip air tickets and shall be responsible for the food and lodging;
5,More than 7 days, the buyer will provide us engineer daily $100;
Any confusion, pls. feel free to contact us . Looking forward to cooperating with YOU!
