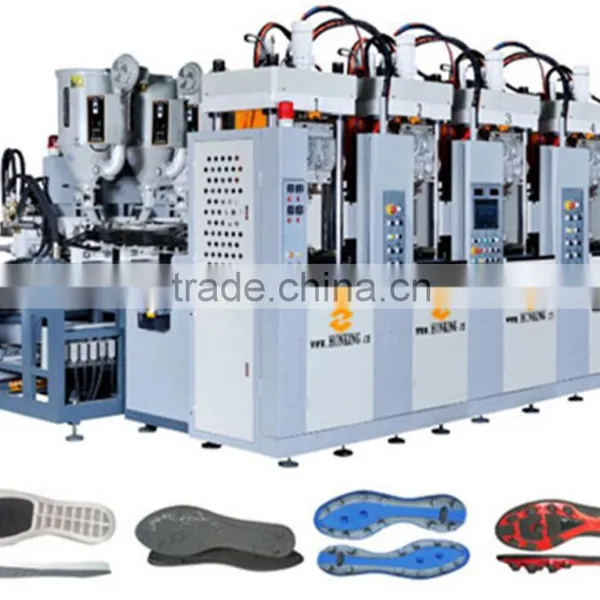

Help CenterTR/TPU/PVC Static Injection Moulding Machine (1/2 Color, Four Station, Two Screw)
Related Products
-
Rotary TPR/PVC Plasitc Sole Injection Moulding Machine (1/2 Color)US$ 23000.00 - 23000.00MOQ: 1 Set -
Rotary TPU/PP Insole Moulding MachineUS$ 23000.00 - 23000.00MOQ: 1 Set
-
Rotary TPU/TR Injection Moulding Machine (1/2 Color)US$ 29000.00 - 29000.00MOQ: 1 Set
-
Automatic Rubber Sole Hydraulic Moulding MachineUS$ 21000.00 - 21000.00MOQ: 1 Set
-
Rotary 1/2/3 Color PVC Sole Injection Moulding Machine (Energy Saving)US$ 31000.00 - 31000.00MOQ: 1 Set
HONKING Machinery Equipment Co., Ltd. Is a premier manufacturer of shoes making machine and related equipments.
Our factory is located in Dongguan, China which is called as "World Factory" and "Shoes Capital of Asia". We focus on the innovation, research and make of shoe making machine, and also work hard to solve various kinds of injection technology. We have machine for all kinds of material which have different type and hardness, such as TPR, PVC, TPU, TR, EVA, PU, RUBBER and so on.
Our professional products are as followed:
1. PVC shoes air blowing machine (1/2 color)
2. PVC jelly shoes injection moulding machine (1/2/3 color)
3. Rain boots injection moulding machine(1/2 color)
4. Rotary TPR/PVC/TPU/TR outsole injection moulding machine (1/2/3 color)
5. Vertical TPR/PVC/TPU/TR injection moulding machine (1/2 color)
6. EVA shoes injection moulding machine (1/2 color)
7. RUBBER injection moulding machine
8. Silicone injection moulding machine
9. PU injection moulding machine
10. PVC upper injection moulding machine (1/2/3 color)
We have been working well exporting to Europe, Africa, Asia, South America, Middle East, Russia, Turkey and so on. We believe that our success depends on your satisfaction with our products. We always adhere to the principle of "Quality First, Customer Supreme" and providing our best sales services for our customers. Our team of experienced engineers strives to continuously improve our technologies-----from hardware design to machine components making them the most durable and reliable in the marketplace. Our shoes machines are thoroughly tested, both in the design and throughout the entire production process.
1.This machine is suitable for injecting single-color/double-color soles such as TPR,PVC,TPU etc.(Rubber material injection can be selected by customer).
2.Adopting Electrical cabinet integrated and hydraulic systems integration, man-machine interface,display of touch screen, operate easily
3.The barrel temperature controlled with P.I.D,ensuring constant temperature and high quality product
4.The straight-pressure hydraulic system, which is very strong, fast mold-locking system,Mould thickness adjusting automatic.
5.When the moulding cycle is completed, the mould would be open on top, take it out easily.
6.The crane bar clamping mould makes more stable and final products without rough edges.
7.This machine have automatic lubrication system, it can raise the longevity of the machine and reduce the frequency of maintenance.
8.Upside mould plate can turn 90 degree and push the sole out automatically, downside mould plate go out automatically after open mould, insure the product's shape don't be broken, and also reduce working intensity for workers.
9.Automatic compensation for mould thickness and suitable for different size of moulds to enhance production.
10.It has serve motor which can save lots of electric consumption, protecting environment. Servo system is selectable to save electricity. Auto opener is also selectable to save labour.(These two items can be selected by customer.)
Specification
| Technical Terms | UNIT | HM-118-2-4 |
| Screw diameter | mm | ø65 |
| Feeding unit electric consumption | kw | 22 |
| Thermal zone of barrel | point | 4 |
| Injection volume | cm3 | 860 |
| MAX Opening stroke | mm | 260 |
| Upper mold rotation angle | degree | 0°-90° |
| Screw rotation speed | r.p.m | 0-185 |
| Injection pressure | Mpa | 95 |
| ure | Kgf/cm2 | 180 |
| Max. Power consumption | KW | 64 |
| Average electricity consumption | KW | 18 |
| Number of injectors | piece | 4 |
| Clamping force | ton | 220 |
| Work stations | station | 2 |
| MAX size of the mold | mm(L*W*H) | 420×420 |
| Machine dimension | mm(L*W*H) | 2300×3500×2800 |
| Mechanical Weight | Ton | 11.5 |
Remarks:
1,The machine one year warranty;
2,Installation place we will send technical personnel to the buyer for 3-7 days;
4, The buyer is responsible for visas and orund-trip air tickets and shall be responsible for the food and lodging;
5,More than 7 days, the buyer will provide us engineer daily $100;
Any confusion, pls. feel free to contact us . Looking forward to cooperating with YOU!
