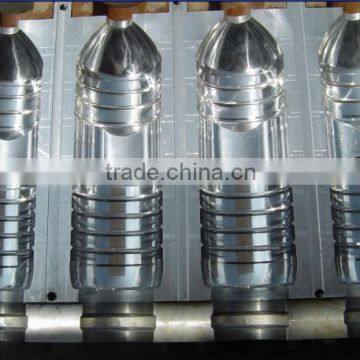

4 cavity Blow mold

Specifications

BottleMould adopts special thechnology.
Each cavity has cooling system .
Each cavity adopts positioning technique independen





What can we supply:

1. PET Preform Mould

2. Bottle Cap Mould

3. Blowing Mould

4. Commodity Mould





We have significant experience in the manufacture of blow moulds for different types of closures by customers’ demands.



Bottle Mould

We adopt state-of-the art CAD/CAM technologies to design .
We supply all kinds of bottle blowing moulds

We can provide various sizes of plastic blow moulds(5ML ~260L).

Hengxin Mould used 3D design and CNC machining in blowing moulds to ensure smooth and unity of the bottle shape, as well as the commissure, accurate capacity. Mould material adopts American aviation aluminum 7075 and S136 from ASSAB company. Unique cooling system design ensures production rate.





Trade flow:

Quote: according to sample or drawing

Discussion: mold requirement, price, payment, lead time and etc.

s/c signature: PI, S/C or P/O is acceptable

Product design checking: We check the product design. If some position is not perfect, or can not be done on the mould, we will send customer the report.

Mould design: We make mould design on the basis of confirmed product design, and send to customer for confirmation.

Mould making: We start to make mold after mold design confirmed

Mould testing: Send trial samples and try-out report to customer for confirmation

Mould modification: we do the correction according to the approval by both parties

Delivery: mould, drawing, spare parts and mold cooperation manual will be shipped together.



What ZHENGGE can provide:



We not only supply high quality moulds, but also provide strong R&D support. We can



n          Assist your company in finalizing bottle design



n          Conduct project reviews



n          Feasibility studies



n          Work with you to come up with best machinery solution for you operation





After-Sale Service

a) Engineer and one interpreter can be sent to customer’s factory for first running.

b) one-year after-sale technique support

Mould Details:

l          Cavity, core and Screw neck of steel adopt imported S136 in Sweden, and be heating treatment of hardness up to HRC48-50, all mould base do heat treatment of hardness up to HRC30-35



l          Advanced mould design technology:

l          Each cavity self-locks independently and using high precision Japan CNC System.

l          Ensure low decantation & precision of the product.
Each mould spare part be inserted with durable part, which are interchangeable.

l          In order to improve and achieve high production efficiency, we always design the best cooling system and can match a cooling machine for each mould.



l          Advanced & accurate valve hot runner & temperature controller, ensure reliability of production, and high transparency &brightness of product.



l          Mould sliding use copper, Bottle be achieved FOOD SECURITY standard, and mould life guarantee more than 3 million shots.
