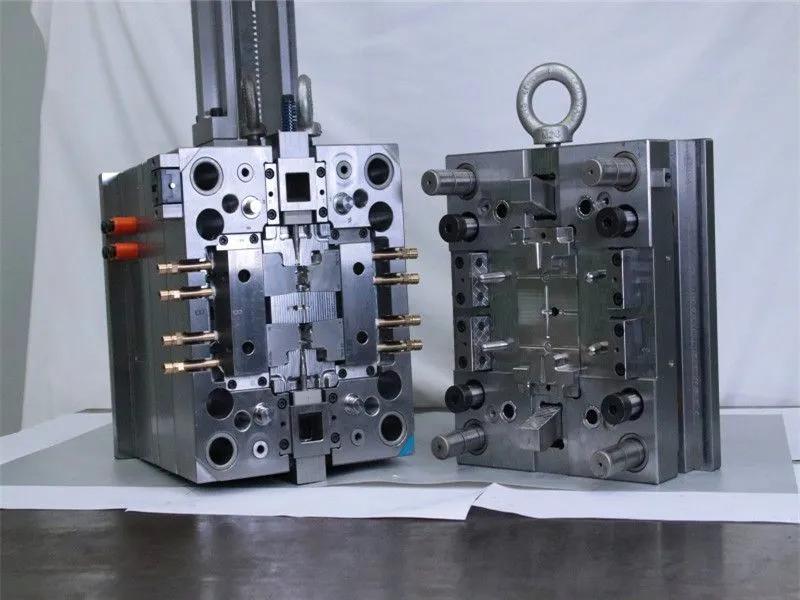

Critical Considerations for Precision Injection Molds in Medical Device Components

Precision injection molding is the cornerstone of manufacturing high-tolerance, biocompatible components for medical devices—from surgical instrument housings to microfluidic chips. The unique demands of medical applications necessitate rigorous mold design and process control. Below are essential technical and operational factors for ensuring quality, compliance, and reliability.

1. Design & Engineering Fundamentals

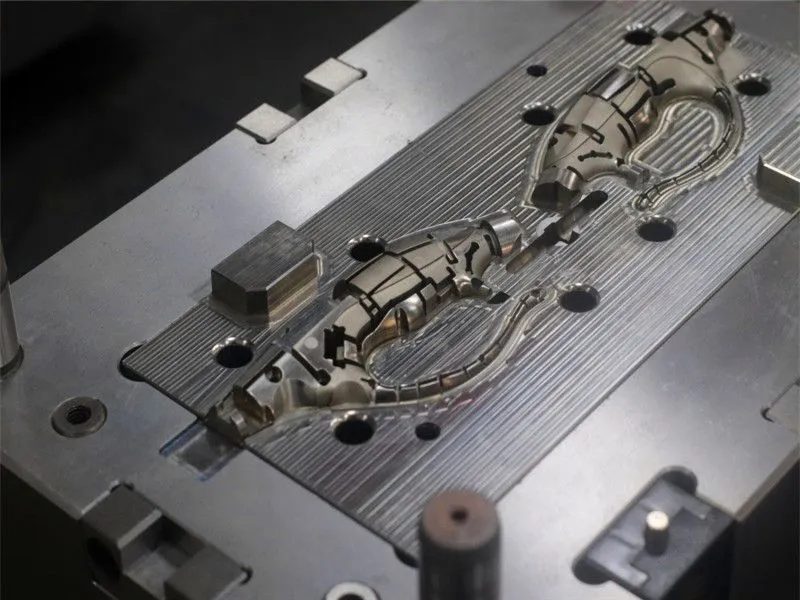

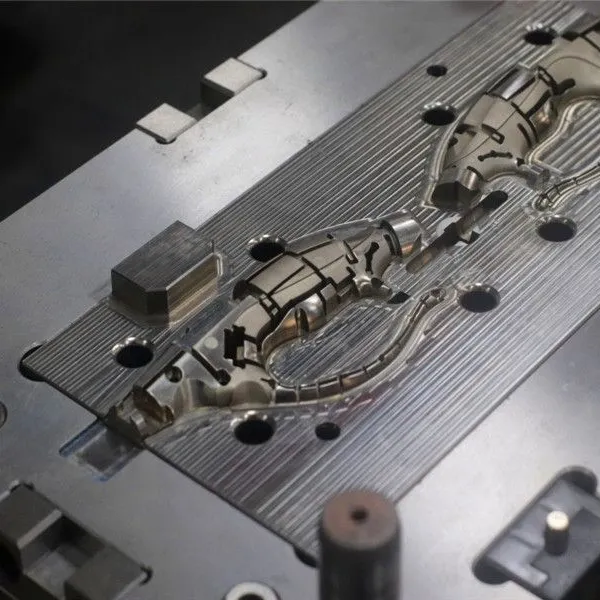

• Micro-Feature Accuracy

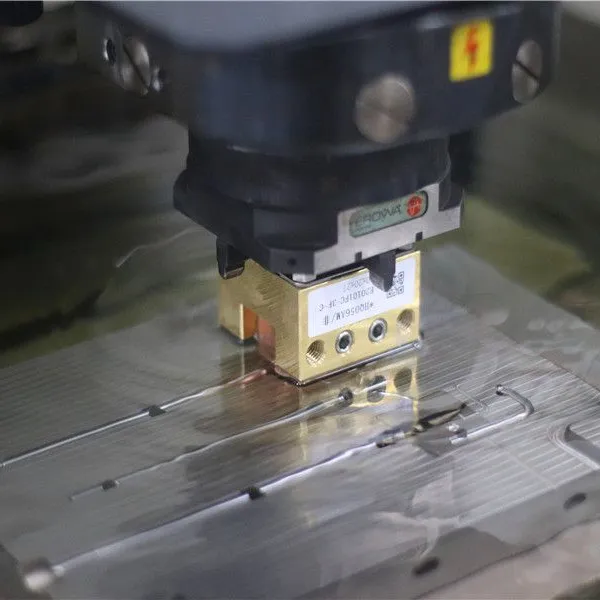

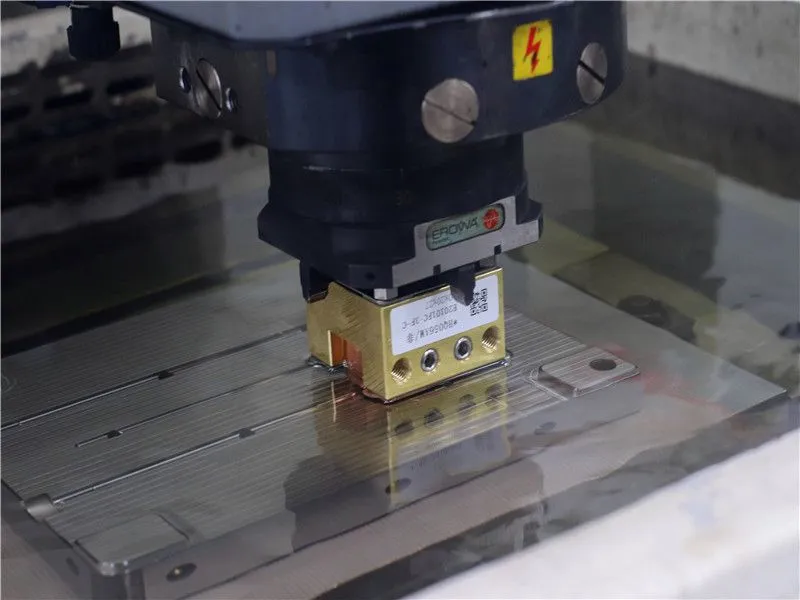

  Medical parts often require micron-level tolerances (e.g., ±0.01 mm for fluidic channels). Molds must incorporate hardened steel inserts polished to Ra ≤ 0.05 μm to prevent sticking and ensure demolding integrity.

• Gating & Venting Strategy
  Sub-gates or pinpoint gates minimize cosmetic defects in visible components (e.g., endoscope housings). Vacuum venting (<0.01 mm depth) eliminates gas traps that cause burns or voids in thin-walled parts.

• Conformal Cooling
  3D-printed cooling channels following cavity contours reduce cycle times by 30–40% while preventing warpage in polymers like PEEK and PC.

2. Material Science Integration

• Metal Selection & Treatment

• Corrosion Resistance: Stainless steel (e.g., SS420) or nickel alloys resist EtO sterilization and acidic cleaning.

• Surface Enhancement: TiN or DLC coatings extend mold life >1 million cycles by reducing wear against glass-filled polymers.

• Polymer-Mold Interaction
  High-flow materials (e.g., LSR) demand hardened tool steel to withstand abrasion; semi-crystalline resins (e.g., POM) require precise mold temps to control shrinkage.

3. Process Validation & Control

• Scientific Molding Principles

• Phase-Based Parameter Control: Separate filling, packing, and cooling phases with real-time pressure/temperature sensors to ensure consistency.

• DOE Optimization: Use design of experiments to define process windows (e.g., melt temp ±3°C, hold pressure ±5%).

• In-Line Metrology
  Integrated vision systems or laser micrometers detect defects (sink marks, flash) with ≤10 μm resolution, enabling 100% inspection for critical dimensions.

4. Cleanroom & Contamination Control

• ISO Class 7/8 Environment
  Molds must be assembled and maintained in controlled environments to prevent particulate contamination affecting biocompatibility.

• Anti-Contamination Protocols

• Dry-cycle molds before production to remove lubricants.

• Use FDA-approved mold releases sparingly to avoid residue transfer.

5. Regulatory & Quality Compliance

• Traceability Systems
  Embed RFID tags in molds to log maintenance history, cycle counts, and process data for FDA 21 CFR Part 820 compliance.

• Documentation Rigor

• IQ/OQ/PQ reports validating mold performance.

• FMEA for failure modes (e.g., core misalignment, vent blockage).

6. Lifecycle Management

• Preventive Maintenance
  Schedule ultrasonic cleaning and surface recoating every 50,000 cycles to maintain tolerances.

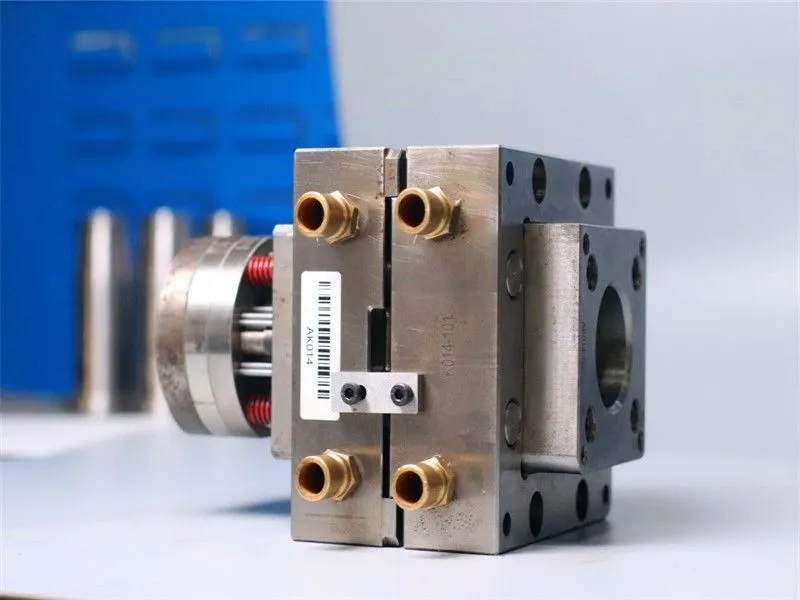

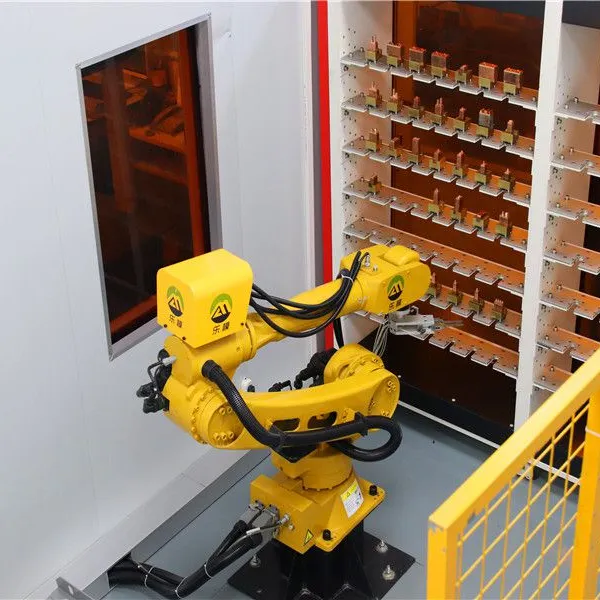

• Rapid Changeover Design
  Modular components (e.g., interchangeable cores) reduce downtime during product family transitions.

Case Study: Trocar Valve Mold Optimization

A tier-1 supplier redesigned a 64-cavity mold for PEEK trocar seals:

• Challenge: Warpage from uneven cooling caused seal leakage.

• Solution:

• Conformal cooling channels reduced temp variation to<2°C.

• Vacuum venting eliminated gas burns.

• Result: Reject rates dropped from 8% to 0.2%, saving $500k/year.

Emerging Technologies

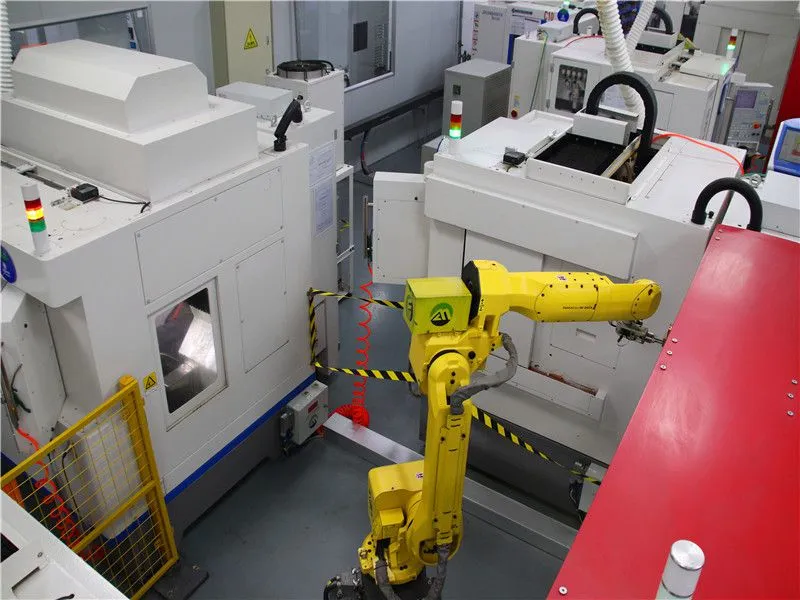

• AI-Driven Predictive Maintenance
  Sensors detect abnormal vibration or temp spikes, forecasting failures before they occur.

• Hybrid Molds
  Metal 3D-printed inserts with conformal cooling + CNC-machined bases optimize cost and performance.

Conclusion

Precision molds for medical components must harmonize cutting-edge engineering, stringent process control, and uncompromising regulatory adherence. Success hinges on:

1. Design Excellence (micron accuracy, material-aware tooling);

2. Process Mastery (scientific molding, real-time monitoring);

3. Ecosystem Control (cleanroom protocols, traceability).
