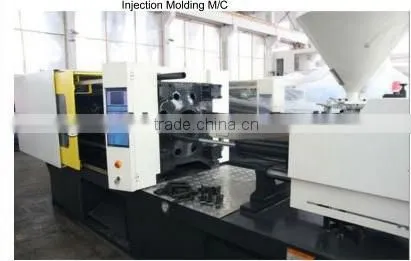

Help CenterAutomatic PET Injection Machine for Pet Preforms
Related Products
-
Injection Molding Machine for Pet PreformUS$ 12,000 - 35,000MOQ: 1 Set -
Injection Molding Machinery PriceUS$ 12,000 - 35,000MOQ: 1 Set
-
Hot Sale Injection Blow Molding MachineUS$ 12,000 - 15,000MOQ: 1 Set
-
Full Automatic Injection Moulding Machine for Pet Preforms / Plastic Bottle Blowing MachineUS$ 52,500 - 72,800MOQ: 1 Set
-
Hot Sale 24 Cavity Pet Preform MouldUS$ 3,000 - 30,000MOQ: 1 Set
Specifications

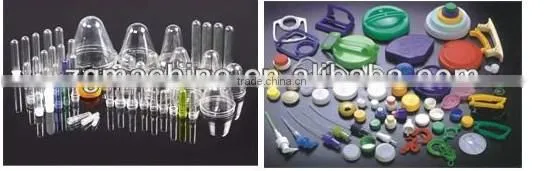

Automatic PET Injection Machine1. Making Plastic Cup, Bowl
2. Power Saving ,Quick Reaction,stabilty
Automatic PET Injection Machine
Techincal Parameters--- Automatic PET Injection Machine
A Injection Unit--- Automatic PET Injection Machine
•A07) Oil temperature indication
•A08) Adjustable such back before and after refilling
•A09) Auto sprue break
•A10) Linear transducer to control programmable injection position
•A11) Cold start screw prevention
•A12) Sliding Mechanism for hopper
•A13) Gas Nitrated hardened screw and Barrel
•A14) Screw back pressure con troll with pressure relief valve
•A15) Hand Operated Lubrication Unit
B. Clamping Unit--- Automatic PET Injection Machine
•B01) Five Point twin toggle locking system
•B02) Case Hardened toggle, Brackets and links with hardened
PIN & BUSH
•B03) Motorized mould height adjustment for quick mould change
•B04) Auto tonnage setting facility
•B05) Low pressure precise mould protection with pressure and time
setting
•B06) Five stage Mould closing
•B07) Five stage Mould opening
•B08) Hydraulic cushioning for consistent mould opening position
•B09) Linear transducer to control programmable clamp system
•B10) Electrical and hydraulic (Dump value) interlock safety gate
•B11) Moving platen with mechanical support with Teflon
•B12) Hydraulic Ejector with Multi stroke
•B13) Auto lubrication unit
C. Ejector--- Automatic PET Injection Machine
•C01) Linear transducer to control programmable ejector position
•C02) Multiple stroke ejection
•C03) Ejector forward/ backward speed adjustable
•C04) Ejector forward/ backward pressure adjustable
•C05) Two stage in ejector forward/ backward operation
•C06) Additional safety of sensing ejector backward position with
proximity switch
D. Hydraulic--- Automatic PET Injection Machine
•D01) Compact and Simple design
•D02) Sealing ring imported from Japan, a total four leak-proof protection to
prevent the oil leakage.
•D03) Proportional value for pressure and speed
•D04) Variable displacement pump system attached with pulse absorber
•D05) High magnetic closed-loop oil filter to effectively remove debris of the
oil, the filtration is up to 10um.
•D06) Easy access to hydraulic elements for ease maintenance
E. Controller--- Automatic PET Injection Machine
•E01) Display type LCD QVGA B/W of 5.7 “with 100 membrane keys
•E02) Multi-CPU control, with 32 bit
•E03) Precise temperature control, the precision is of ±1 degree
•E04) Four forms of switch at the end of injection, they are time,
location, pressure, and speed.
•E05) Breaker and air switch are imported from Japan, the brand of
Micro switch is Omron
•E06) Instruction cycle time of controller in 0.4 microseconds
Technical Data for Automatic PET Injection Machine
Item |
Unit |
Technical data |
||
Max. clamping force |
KN |
4800 |
||
Max. opening force |
mm |
770 |
||
Space between tie bars |
mm |
760×760 |
||
Mould height |
mm |
280-790 |
||
Max. daylight |
mm |
1560 |
||
Ejector force |
KN |
113.4 |
||
Ejector stroke |
mm |
195 |
||
Ejector quantity |
|
13 |
||
Screw diameter |
mm |
70 |
75 |
80 |
Screw L/D ratio |
L/D |
22.6 |
21 |
19.7 |
Theoretical shot volume |
cm3 |
1346 |
1545 |
1758 |
Plasticising weight(PS) |
g |
1225 |
1406 |
1600 |
Injection pressure |
Mpa |
201 |
175 |
154 |
Theoretical injection rate(PS) |
g |
370 |
423 |
484 |
Plasticising capacity(PS) |
g/s |
60.4 |
71.4 |
83.7 |
Screw torque |
N.m |
3490 |
||
Max. screw rotate speed |
r/min |
150 |
||
Injection stroke |
mm |
350 |
||
Carriage push force |
KN |
120.6 |
||
Pump motor power |
KW |
45 |
||
Pump pressure |
Mpa |
16 |
||
Heating power |
KW |
28 |
||
Heating zone |
|
5 |
||
dimensions |
m |
7.5×2.1×2.45 |
||
Net weight |
t |
20 |
||
International designation |
|
4800-2710 |
||
