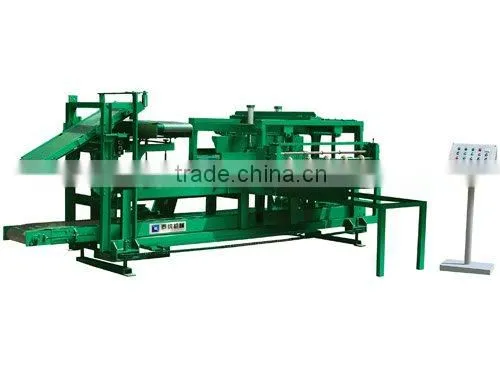

Help CenterSplit Tile Making Machine (clay Brick Machine) TL-QDJ-L
Related Products
-
Clay Wall Brick Splitter Machinery TL-PZJ-ATUS$ 42,000 - 60,000MOQ: 1 Set -
Auto Splitting Machine for Wet Forming BricksUS$ 23,300 - 23,800MOQ: 1 Set
-
TL-QDJ-B With Leading Technology Cutting Green Ceramic Tiles MachinesNegotiableMOQ: 1 Set
-
TL-QDJ-B Whole Automatic Cutter for Split Tile on Sale ChinaNegotiableMOQ: 1 Set
-
Hot Selling Patented Technique Auto L-size Horizontal Cutter With LCD Panel Tele MachineNegotiableMOQ: 1 Set
clay brick making machine:
Dimension L x W x H |
4,245 x 2,660 x 1,425 (mm) |
Cutting Frequency |
~16 ( times/min ) |
To Be Cut Tile’s Width (Max.) |
W ≤ 460 (mm) |
To Be Cut Tile’s Length (Max.) |
L ≤ 1200 (mm) |
Main Power |
1.5kw + 750w + 370kw + 2x65w + 1kw (servo motor) + 120w (oil pump) = 3.87kw (Above motors matched with reduction gears) |
Weight |
≈ 2300 (kg) |
Standard Set |
Mechanical Jacks System: Belt-conveying frame, Brick-pushing to cut device, reduction device etc. Electric Auto-Control System: Japanese FUJI digital AC servo motor & driver, MITSUBISHI PLC coding component, MITSUBISHI frequency converter, 100x40 liquid crystal display control panel, AIRTAG pneumatic components, OMRON photo-switch, mini-roller motors etc. |
|
Features of Type TL-QDJ-L Its way of working is different from the Type TL-QDJ-A or B without turning, but just conveying straightforward and cut, it is suitable for larger width size of tiles and bricks cutting production. The max length and width of the tiles to be cut can reach to 1200mm and 460mm separately. The main feature of this machine is the extraordinary conveying & cutting mechanism, which perfect designed and made with technique know-how. It needs only 3.75 seconds to go though whole process working, including several steps of clay column being conveyed from the extruder, rough cutting to the length of beforehand fixed (such as L=1300mm), pushing rough-tile column to cutter and then exact cutting to size. It runs smoothly, efficiently and automatically when matched with TL-CXJ vacuum extruder series, it becomes an idea choice in making larger size tiles and bricks. | |
