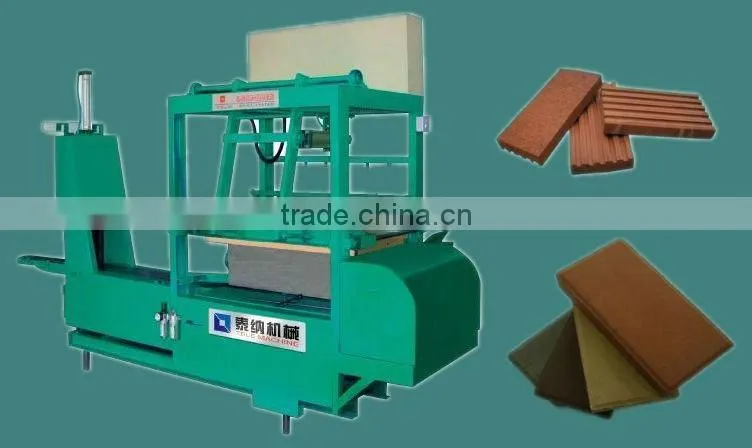

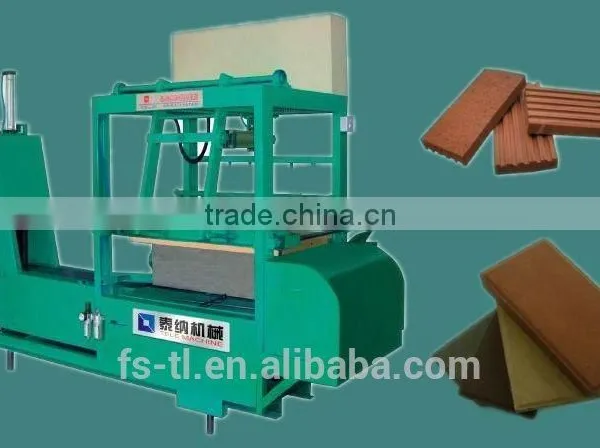

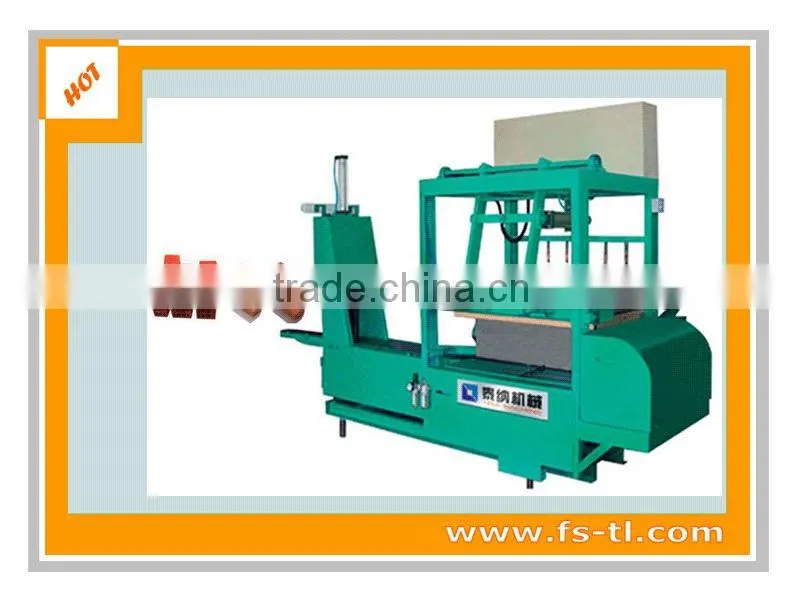

TL-QDJ-B whole automatic cutter for split tile on sale China

Major Technical Parameters of Auto Green-Tile Cutter Type TL-QDJ-B

Dimension L x W x H (mm)

Cutting Frequency (Matched with the extruder) (1/min)

Capacity (Pieces/min)

Cutting Precision (mm)

3,280 x 1,600 x 2,250

12 ~ 14

36 ~ 84

<0.5

Motor Power (kw)

Cutting Length Range (mm)

Cutting Width Range (mm)

Net Weight (kg)

1.2

≤ 900

≤300

≈  1330

Features of This Type

1. Leading technology specially made for the cutting process of high-grade extruded wet-forming green ceramic tiles and bricks,especially for cutting the stood conveying tiles, like split tiles, clay bricks etc.

2. The overturning & cutting mechanism of technique know-how and liquid crystal display control panel ensure high quality and whole automatic working of rough cutting, pushing forward, overturning and traversing, cutting to fixed size with chamfered edges or carved-marks when needed. (Optional for Type A or B according to the requirement)
