Auto Splitting Machine for Wet Forming Bricks

Auto Splitting Machine for Wet Forming Bricks thumbnail-1
Auto Splitting Machine for Wet Forming Bricks thumbnail-2
Auto Splitting Machine for Wet Forming Bricks thumbnail-3
Auto Splitting Machine for Wet Forming Bricks thumbnail-4
Auto Splitting Machine for Wet Forming Bricks thumbnail-5
Auto Splitting Machine for Wet Forming Bricks thumbnail-6
Auto Splitting Machine for Wet Forming Bricks photo-1
Auto Splitting Machine for Wet Forming Bricks photo-2
Auto Splitting Machine for Wet Forming Bricks photo-3
Auto Splitting Machine for Wet Forming Bricks photo-4
Auto Splitting Machine for Wet Forming Bricks photo-5
Auto Splitting Machine for Wet Forming Bricks photo-6
US$ 23,300 - 23,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Cutting Machine
Tile Type:
Concrete
Contact Supplier Request Quote Chat Now
Foshan Tech-Leader Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOSHAN/ SHENZHEN/ GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Cutting Machine
Tile Type Concrete
Use Roof
Production Capacity 1-70 /min
Place of Origin Guangdong, China
Brand Name TELE MACHINE, TELE machine
Model Number splitting machine TL-PZJ-AT, splitting machine TL-PZJ-AT
Power(W) 1.9KW
Voltage 380V
Dimension(L*W*H) 2838*1724*1540 MM
Weight 1500KG
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

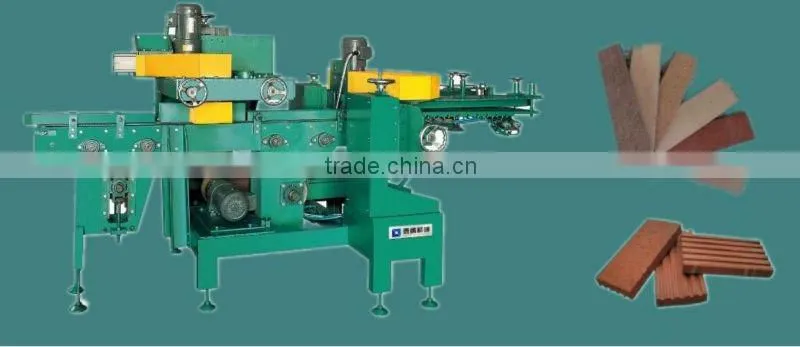

Auto Splitting Machine for wet forming bricks



Auto Splitting Machine for wet forming bricks

Auto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricks

Auto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricks

Auto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricks

Auto Splitting Machine for wet forming bricks

Auto Splitting Machine for wet forming bricksAuto Splitting Machine for wet forming bricks



Major Technical Parameters of Auto Splitting Machine Type TL-PZJ-AT

Dimension L x W x H

2,838 x 1,724 x 1,540   (mm)

Frequency

≥ 70  (1/min. Adjustable)

To Be Split Tiles Size

L x W(~300) x (~200 )     (mm. Adjustable)

Main Power

0.75kw (cutting) +0.75kw (driving) +0.4kw(putting) = 1.9kw

Weight

≈  1500      (kg)

Standard Set

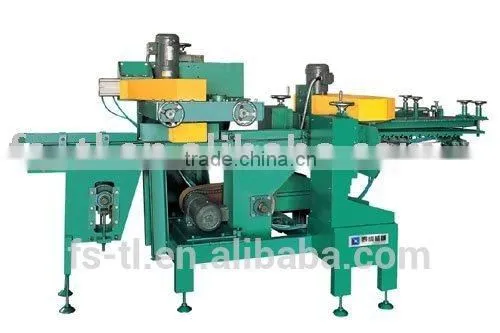

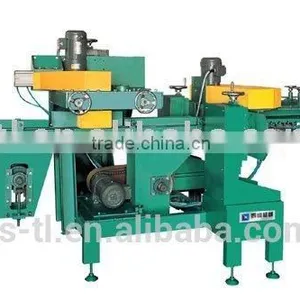

Mechanical Jacks System:  Belt conveying frame, rotating splitting cutter mechanism, motor etc. Control System: Electric control cabinet, cylinder etc.

Features of Type TL-PZJ-AT

The Auto Splitting Machine Type TL-PZJ-AT is made for extruded forming and after-fired split tiles of high efficient and auto-splitting process instead of traditional manually splitting process. It has functions of auto-splitting and putting in order. The unique design helps a lot in realizing high efficient production,and its remarkable features bring good performance of the machine reflecting not only in high quality and efficiency but also much lower labor cost.

The machine droved by motors and controlled by PLC adjusting different belt conveyors to work synchronously, through whole automatically working process including several steps of conveying tiles, splitting to two parts, conveying tiles forward and auto-laying the two broken tiles in order of same facing up which is conducible to the next checkout and sorting process. The splitting frequency being up to 70 times per minutes means the output of the machine 8 times higher than what traditional manually way does, beside this, the machine also has a wide and flexible working-range for the tiles from 5 to 200 mm of width, and 5 to 300 mm of length, and adjustable thick as users required, and whats more great is the practically negligible breakage forming a contrast with others level of over 5%, the qualified rate of final products is beyond 99.5%.
