SHG450 Workshop Fitting Automatic Welding Machine to Make Pipe Fittings Elbow, Tee,cross
Negotiable
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Shengda | |
| Model Number | SHG450/200 | Voltage | 380V | |
| Power | 17.4KW | Frequency | 50HZ | |
| Welding Area | mm | Dimensions | 200mm~450mm | |
| Weight | 2850KGS | Usage | fabricate pipe fittings | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SHG450/200 Workshop fitting welding machine to fabricate thermoplastic pipes as elbow, tee/cross, Y shape fittings
Application adn Features:

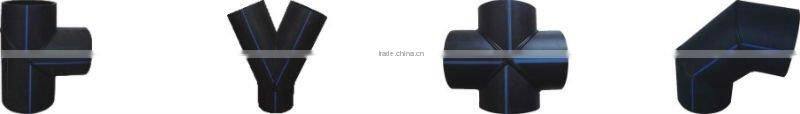

1. Suitable for fabricating elbow,tee,cross and Y shape (45 and 60 degrees) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting
2. Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
3. Removable PTFE coated heating plate
4. Electric planing tool with safety limit switch
5. Low starting pressure and high reliable seal structure
6. Separate two-channel timer records times in soaking and cooling phases
7. Touch screen operation panel with printer
8. Automatic welding process
Technical parameters:
| Model | SHG450/200 |
| Pipe sizes (mm) | 200,225,250,280,315,355,400,450 |
| Application | 0~90 degrees Elbow,tee, cross, optional 45 and 60 Y shape |
| Heating plate max. temp | 270 centigrade degrees |
| Temp.deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~16 Mpa |
| Working voltage | 380V 50HZ |
| Heating plate power | 12.2KW |
| Hydraulic unit power | 2.2KW |
| Planing tool power | 3.0KW |
| Total power | 17.4KW |
| Weight | 2850KGS |
| Packing | 6 Plywood cases |
Optional parts:
1. Special clamps for welding flange stub
2. Special clamps for short spigot fitting
3. Special clamps for welding Y shape (45 and 60 degrees) fittings
