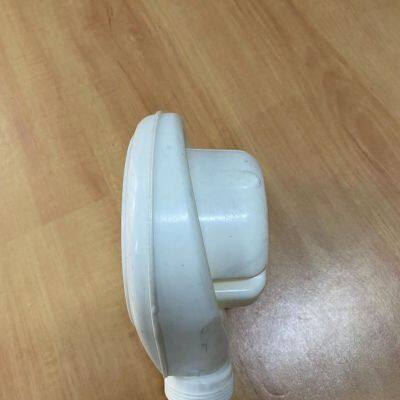

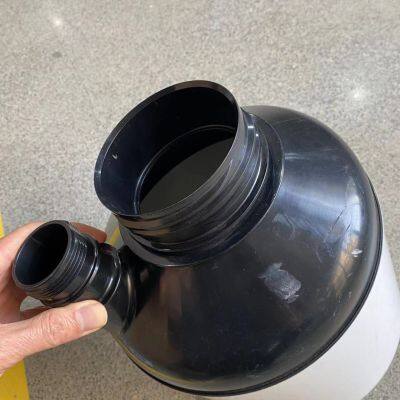

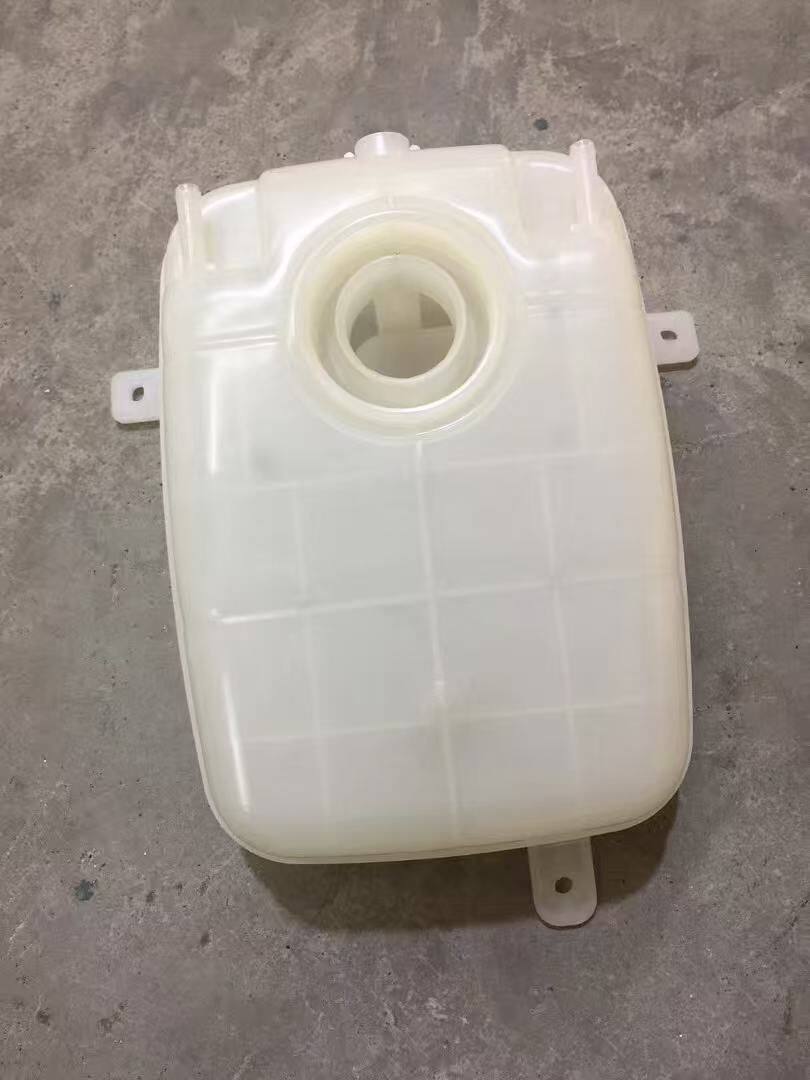

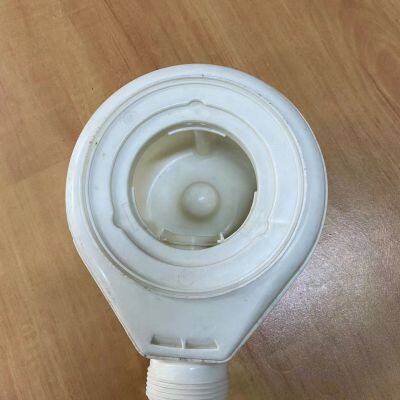

Help CenterHot Plate Type Plastic Welding Machine With Reliable and Stable Performance; Hot Plate Welding of PP Car Radiator.
Related Products
-
Jin Changxing Hot Plate Machine, Reliable and Stable Performance, Dishwasher Parts Hot Plate Welding.US$ 150MOQ: 1 Combo -
Automobile Headlight Plastic Welding; Direct Supply From Manufacturer; Jin Changxing Ultrasonic Welding Machine.US$ 800MOQ: 1 Combo
-
Serve Hot Riveting Machine With Reliable and Stable Performance; Hot Riveting of Automobile Decoration Strip by Jin ChangxingUS$ 150MOQ: 1 Combo
-
Serve Hot Riveting Machine With Reliable and Stable Performance; Jin Changxing Car Water Bottle Holder Hot Riveting Equipment.US$ 150MOQ: 1 Combo
-
Servo Hot Riveting Machine With Reliable and Stable Performance; Jin Changxing Automobile ABC Column Hot Riveting Equipment.US$ 150MOQ: 1 Combo

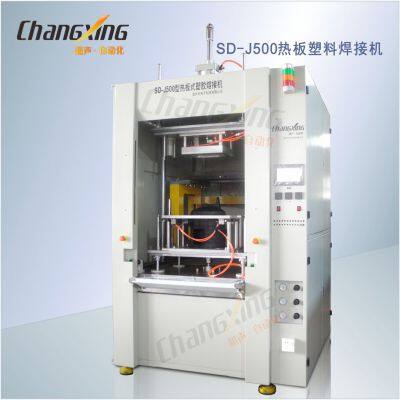

Working principle of the hot plate type plastic welding machine: The plate type plastic welding machine mainly uses a temperature-rollable heating plate to weld plastic parts. During welding, the heating plate is placed between two plastic parts, and when the parts are pressed against the heating plate, the plastic to melt. After a pre-set heating time, the plastic on the surface of the parts will reach a certain degree of melting, at which point the parts are separated to both, the heating plate is removed, and then the two parts are combined together, applying a certain pressure and depth control. When the welding time and welding depth are reached, the entire welding process is completed. Configuration parameters 1. Area of the upper pressure plate: 520×240㎜; 2. Area of the lower pressure: 660×240㎜; 3. Maximum distance between the upper and lower pressure plates: 570㎜ 4. Area of the hot: 380×220㎜; 5. Maximum weldable area of the workpiece: 350×200㎜; 6 Working power supply: 380V, 50Hz; 7. Working air pressure: 0.2-0.8Mpa; 8. Linear: ABBA is used; 9. Program control: OMRON PLC is used; 10. Temperature controller: OMRON is used; 11 LCD display: 7-inch display from Willerton is used; 12. The machine is equipped with 2 sets of programs for selection; 13. D: 1000*820*1820mm. Workflow: Put in the product's lower glue piece → the lower fixture sucked together → put in the product's upper glue piece → the upper fixture is sucked together → press the start button → the hot plate advances → the lower pressure plate goes up the upper pressure plate goes down (moving relatively at the same time) → hot pressing → the upper pressure plate goes up, the lower pressure plate goes down → the hot plate retreat → the upper pressure plate goes down, the lower pressure plate goes up → bonding → the upper fixture is loosened → the upper pressure plate goes up, the lower pressure plate goes → the lower fixture is loosened → take out the product The hot plate plastic welding machine adopts single-chip microcomputer (microcomputer) control technology, independently develops a screen control system and (OMRON) temperature controller, and all pneumatic components adopt brand-name products. Heating elements also use high-quality products. This equipment has characteristics of reliable and stable performance, good welding effect, and high efficiency. This equipment is specially designed and developed by our factory for the automotive industry. It is an instrument welding equipment. It adopts a multi-unit combination body and uses computer process control to implement welding of large and irregular parts. The equipment is reasonably designed, easy to operate, has a high degree of automation. Applicable to: welding of large products such as car dashboards, bumpers, front and rear doors, lights, brake lights, lights, etc.
