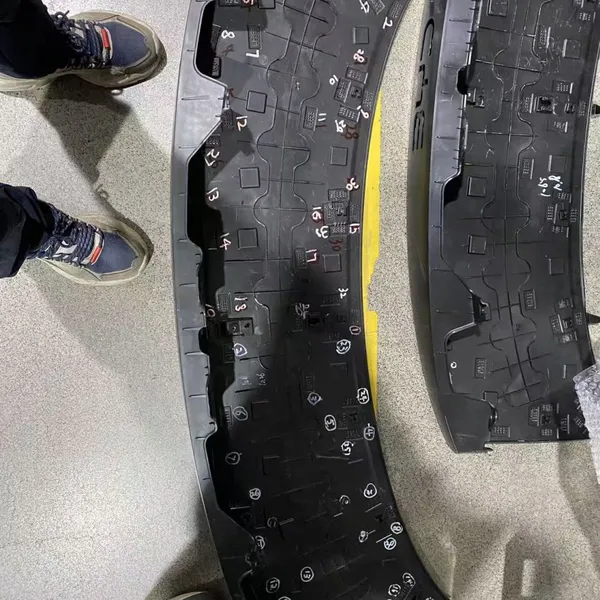

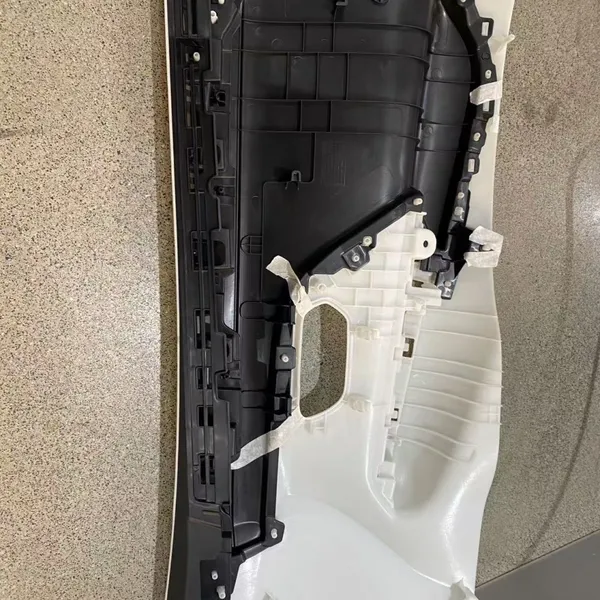

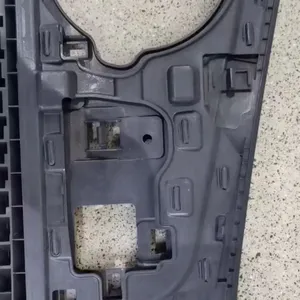

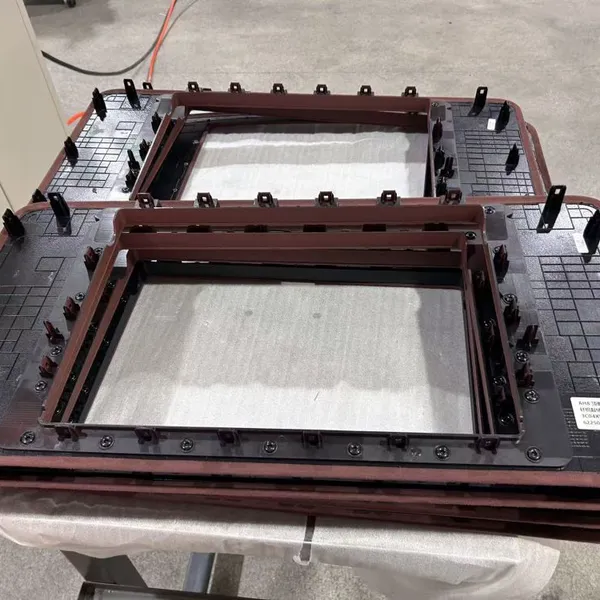

Help CenterServe Hot Riveting Machine With Reliable and Stable Performance; Hot Riveting of Automobile Decoration Strip by Jin Changxing
Related Products
-
Serve Hot Riveting Machine With Reliable and Stable Performance; Jin Changxing Car Water Bottle Holder Hot Riveting Equipment.US$ 150MOQ: 1 Combo -
Servo Hot Riveting Machine With Reliable and Stable Performance; Jin Changxing Automobile ABC Column Hot Riveting Equipment.US$ 150MOQ: 1 Combo
-
Jin Changxing Servo Hot Plate Machine; Automobile Air Filter Hot Plate Welding; PP Welding MachineUS$ 800MOQ: 1 Combo
-
Plastic Snap-in Installation Equipment for Car Parts; Robot Flexible Installation of Car Metal Snaps.US$ 8000MOQ: 1 Combo
-
Jin Changxing Hot Melt Machine; Hot Plate Type Plastic Welding Machine; Automobile Glove Box Hot Plate Welding Equipment.US$ 800MOQ: 1 Combo

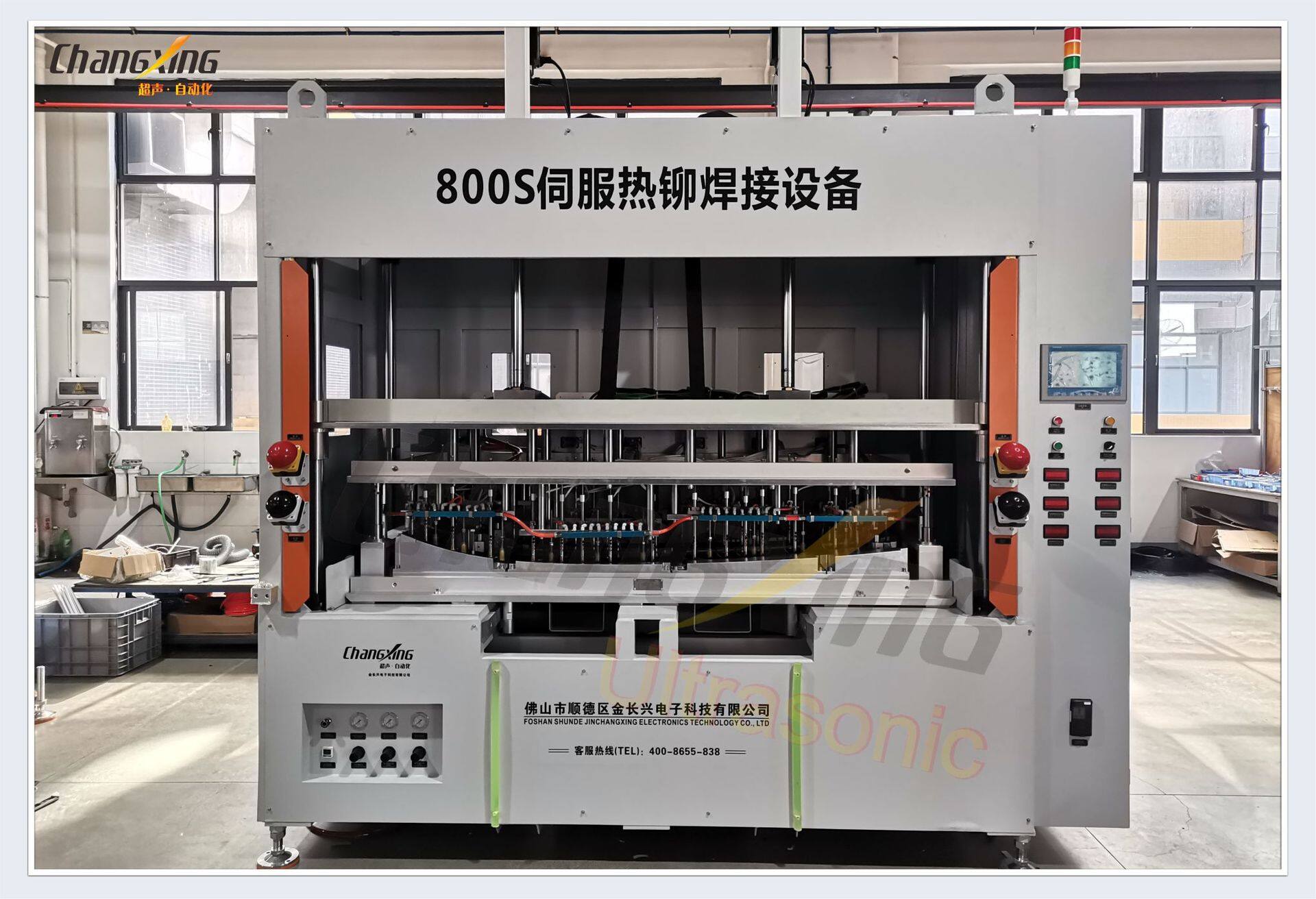

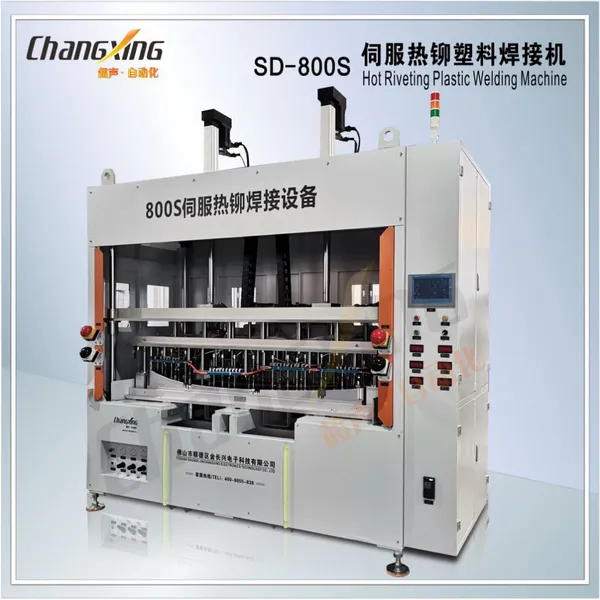

Hot riveting machine for car door switch panel; hot riveting plastic welding machine for car interior Working principle of hot riveting machine: The hot riveting machine transfers heat from the heating plate to the hot riveting head using an electric heating method. The hot riveting head heats rivet column, causing it to melt, and then blows it to cool and solidify, forming a rivet head to fix the product. The entire machine is of frame structure consisting of an upper mold (hot riveting head) and a lower mold, and the operation mode is pneumatically controlled. It is mainly suitable for welding plastic parts such as household, car lights, and car tanks. The heating power and mold size can be set according to the different sizes of plastic parts to achieve a variety of plastic workpiece welding. It simple to operate and easy to use. Welding process flow: Place the plastic parts to be welded into the positioning mold - press the start button - hot mold descends to the welding area, and at the same time, the elastic press pin presses the two plastic parts - the plastic parts are heated and melted in place, and rivet head is formed - the hot mold is slightly lifted to leave the rivet head, and the elastic press pin continues to press the plastic parts, and the rivet head cooled and formed - the hot mold rises to return to its original position - take out the plastic parts Equipment overview: 1. Equipment name: Multi-point riveting plastic welding machine 2. Equipment model: SD-800Q 3. Welding object: Material PP/ABS/PA66/ 4. Welding medium: Heat welding, no medium required 5. Equipment capacity: 1-2 shifts per day, each shift 8 hours 6. Welding requirements: 1) Surface smooth without streaks, firmly welded 2) Specific technical requirements to be provided by the ordering party when signing contract with both parties 7. Production efficiency: Each welding time is completed within 30-40 seconds, welding one on the left and one on the right each. Equipment specifications and parameters: Main machine size: 2300×900×2600㎜ Power supply: 80VAC 50/60Hz three-phase five-wire system Heating power: 1-4KW Heating plate forward and backward process 0-250mm Consumption power: 1-4KW Upper template stroke: 0-250mm Air supply volume:≥4M3/MIN Pressure 0.3-0.6MPa Welding area of plastic parts: 1200×600 Suitable for: Welding of large products such as car dashboards, bumpers, front and rear doors, tailgate panels, and interior parts
