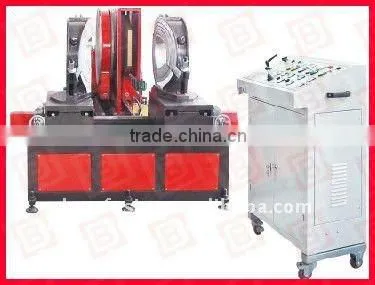

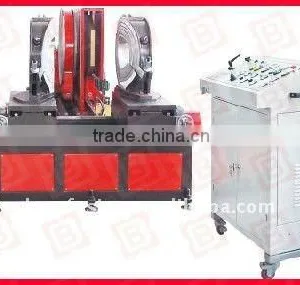

Help CenterPlastic Pipes Workshop Fitting Welding Machine to Make Elbow, Tee,cross Fittings
Related Products
-
Shengda Plastic Pipes Workshop Fitting Welding Machine to Make Tee, Cross, Elbow FittingsNegotiableMOQ: 1 Set -
SHM630 PE Reducer Fitting Welding Machine for Plastic Main Pipes 315-630mmNegotiableMOQ: 1 Set
-
Workshop Fitting Welding Machine (SHG1000/630)NegotiableMOQ: 1 Set
-
Workshop Fitting Welding Machine (SHG800/450)NegotiableMOQ: 1 Set
-
Workshop Fitting Welding Machine (SHG630/315)NegotiableMOQ: 1 Set
Technical parameters
* Welding ranges 250mm to 450mm
Segment bends ranges: 250,280,315,355,400,450mm
90 degrees equal tee and cross ranges: 250,280,315,355,400,450mm
* Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
* Removable PTFE coated heating plate
* Electric facing tool with safety limit switch
* Low starting pressure and high reliable seal structure
* Separate two-channel timer records times in soaking and cooling phases
* High accurate and digital pressure meter is installed on machines
* Linear guide ways are equipped with heater and trimmer
* Products comply with 98/37/EC and 73/23/EEC standards
* Optional Special clamps for welding Y shape (45 and 60 degrees) fittings
* Optional special clamps for welding flange stub
* Optional special clamps for short spigot fitting
* Working voltage: three phases
~380V±10%, 50Hz (Total power: 17.4kw, including heater: 12.2kw, trimmer: 2.2kw, hydraulic unit motor: 3kw)
* Whole standard machine consists of main frame (including heater, trimmer and hydraulic system), elbow clamps, tee/cross clamps
Packing list
Item |
Packing size (mm) |
N.W (kg) |
G.W (kg) |
Remark |
1 |
2020×2020×1790 |
1200 |
1300 |
Main frame |
2 |
920×720×1110 |
120 |
150 |
Hydraulic unit |
3 |
850×890×900 |
150 |
170 |
Elbow clamps |
4 |
1100×1020×880 |
380 |
410 |
Tee/cross clamps |
5 |
820×670×1150 |
60 |
75 |
Electric box |
Total |
10.3CBM |
1910 |
2105 |
|
