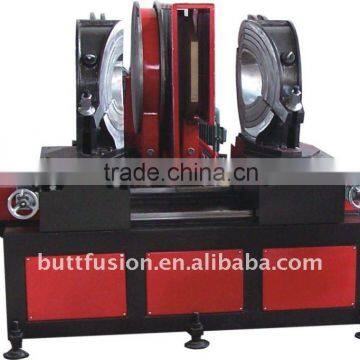

SHG450 Plastic Pipe Fitting Fusion Machine
- Shanghai
- Money Gram
You May Like
-
SHG1000 Automatic Workshop Fitting Welding Machine
-
SHG315/90 Plastic Pipes Workshop Fittings Welding Machine to Make Elbow, Tee, Cross Fittings
-
Plastic Pipes Workshop Fitting Welding Machine to Make Elbow, Tee,cross Fittings
-
Shengda Plastic Pipes Workshop Fitting Welding Machine to Make Tee, Cross, Elbow Fittings
-
SHM630 PE Reducer Fitting Welding Machine for Plastic Main Pipes 315-630mm
-
Wuxi Shengda CNC Welding Machine Qzd355
Product Details
| Condition | New | Product Type | Other, Plastic Pipe, Plastic Pipe | |
| Place of Origin | Jiangsu, China | Brand Name | BADA | |
| Model Number | SHG450 | Voltage | 380V 50 Hz | |
| Certification | CE, CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application and features
Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
Removable PTFE coated heating plate
Electric planing tool with safety limit switch
Low starting pressure and high reliable seal structure
Separate two-channel timer records times in soaking and cooling phases.
Digitally High-accurate and shockproof pressure meter indicates clearer readings.
Linear guide ways are equipped with heating plate and planing tool
Products comply with 98/37/EC and 73/23/EEC standards
Optional parts
Special clamps for welding flange stub
Special clamps for short spigot fitting
Special clamps for welding Y shape (45deg; And 60deg; ) fitting
Model | SHG450 |
Pipe Sizes | 250,280,315,355,400,450 |
Application | 0~90°elbow, tee, cross, wyes(optional parts should be used) |
Heating Plate Max. Temp. | 270°c |
Temp. deviation in surface | ±7°c(170°c~250°c) |
Pressure | 0–16MPa |
Working Voltage | 380V,50Hz |
Heating Plate Power | 12.2KW |
Hydraulic unit power | 2.2 KW |
Planing tool power | 3.0 KW |
Total Power | 17.4 KW |
Total Weight | 2850KG |
