Specifications
corrugated paperboard carton box printing machine1.Packing carton printing machine
2.automatic box printer machine
3. ISO

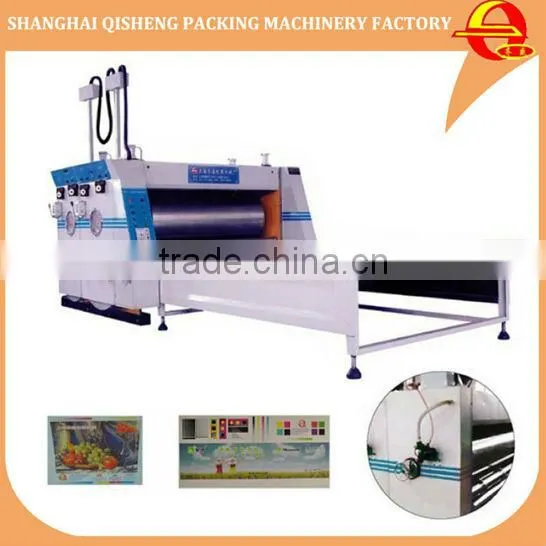

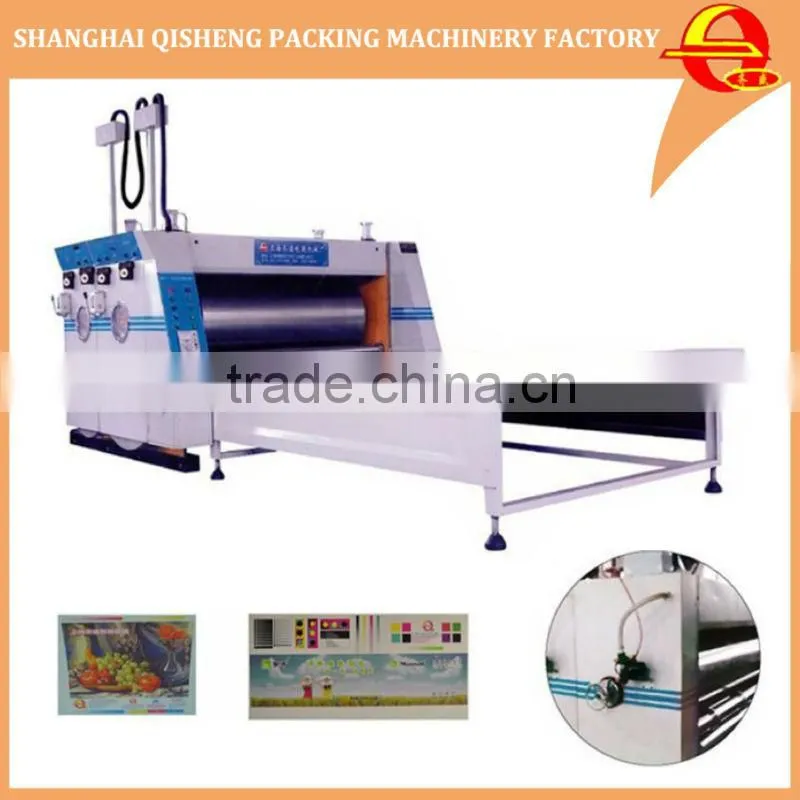

Automatic corrugated paperboard carton box printing/printer machine
General features:
l Electric machine cluth, enclosed with alarm bell,when the machine moves forward,alarm bells shall continuously sound for caution to ensure safety of operating workers
l The plane electric inching device enables fast and accurate adjustment 360°forward and backward phase adjustment can be made whether the machine is operating or stoped
l When the machine is stopped, the anilox roll will be raised from the printing plate surface automatically ,to avoid staining it
l The automatic idle-running function of the rubber roll can prevent the ink from drying when the operation is paused
l The printer is equipped with electric counter ,which accurately control the quantity of the printed paperboard
l Spraying circulation is adopted to lubricate the gears, thus reducing the noise ,prolonging the service life of the gears, and improving the accuracy of process printing
l Pneumatic membrane pump is adopted to automatically convey the ink
l Paper trimming and scoring device can be equipped as an option
Main specifications:
|
Modal
|
ZSY-1600*2200 |
ZSY-1800*2400 |
ZSY-2200*3200 |
ZSY-1600*2200 |
Max.production speed(page/min) |
60 |
50 |
40 |
60 |
Max. feeding size (mm) |
1600*2000 |
1800*2400 |
2200*3000 |
1600*2000 |
Min. feeding size(mm) |
300*650 |
400*650 |
520*750 |
300*650 |
Max. printing size(mm) |
1400*2000 |
1600*2400 |
2200*2800 |
1400*2000 |
Suitable paperboard thickness(mm) |
2-11 |
2-11 |
2-14 |
2-11 |
Standard printing plate thickness(mm) |
7 |
7 |
7 |
7 |
Axial drifting of plate roller(mm) |
±10 |
±10 |
±10 |
±10 |
Power of main motor(kw) |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
1S-7.5T/2S-11T/3S-15T/4S-18T |
1S-3T/2S-4T/3S-5.5T/4S-7.5T |
Overall power (kw) |
1S-5.5/2S-8/3S-9.6/4S-13.5 |
1S-6.8/2S-9/3S-11.5/4S-13.5 |
1S-8.8/2S-12/3S-16/4S-20 |
1S-5.5/2S-8/3S-9.6/4S-13.5 |
Weight(kg) |
1S-3800/2S-6500/3S-9000/4S-11500 |
1S-4200/2S-7300/3S-10500/4S-13700 |
1S-7600/2S-3800/3S-19800/4S-25800 |
1S-3800/2S-6500/3S-9000/4S-11500 |
