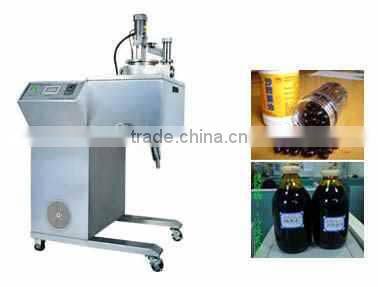

Main Machine of Microwave Extraction Pilot-Plant Equipments
It is a machine with two usages. One side, it can be used as a testing equipment of universities, scientific research institutions, and can be used for microwave extraction experiments of foods, medicine, chemicals etc. On the other Hand, it can be used as microwave extraction pilot-plant equipment, which can offer accurate processing data for Big-scale microwave extraction production line.
Makeup:
Feeding hopper on the top, microwave chamber, extraction chamber, discharging funnel, supporting mechanism, control & detection system, control panel, power distributing cabinet, microwave electrical source.
Microwave Extraction Equipment Technical Parameters:
| Capacity | 50—500L |
| Microwave power | 8—30kw (Linear,adjustable) |
| Microwave Power | 2450MHZ |
| Microwave Frequency | More than 5000h |
| Cooling Ways | AirCool for Magnetron ; Oil Cool for Transformer. It can be continuously operated for 24 hours |
| Input Supply Voltage | 380V 10% / 50HZ (3 – phase) |
| Agitation power | 2.25kw |
| Solvent Nature | Water , Alcohol |
| Approx . Self-process time | |
| Measuring Range | 100—200℃ Accuracy : ±1℃ |
| Operating Encironment | Explosion - proof |
| Operating pressure | Normal Pressure |
| Temperature Range | 30—95℃ |
| Agitation Speed | 0 — 100 r /min |
| Weight | 40kg — 2000kg |
| Control Instruments | Fully automatic japan Mitsubishi PLC Controlling System is adopted |
| Speed Control | Frequency Controlled and Stepless Speed Regulation |
| Microwave Leakage | It is under the national standard (5Mw) |
| External Dimension | 3 — 10 |
