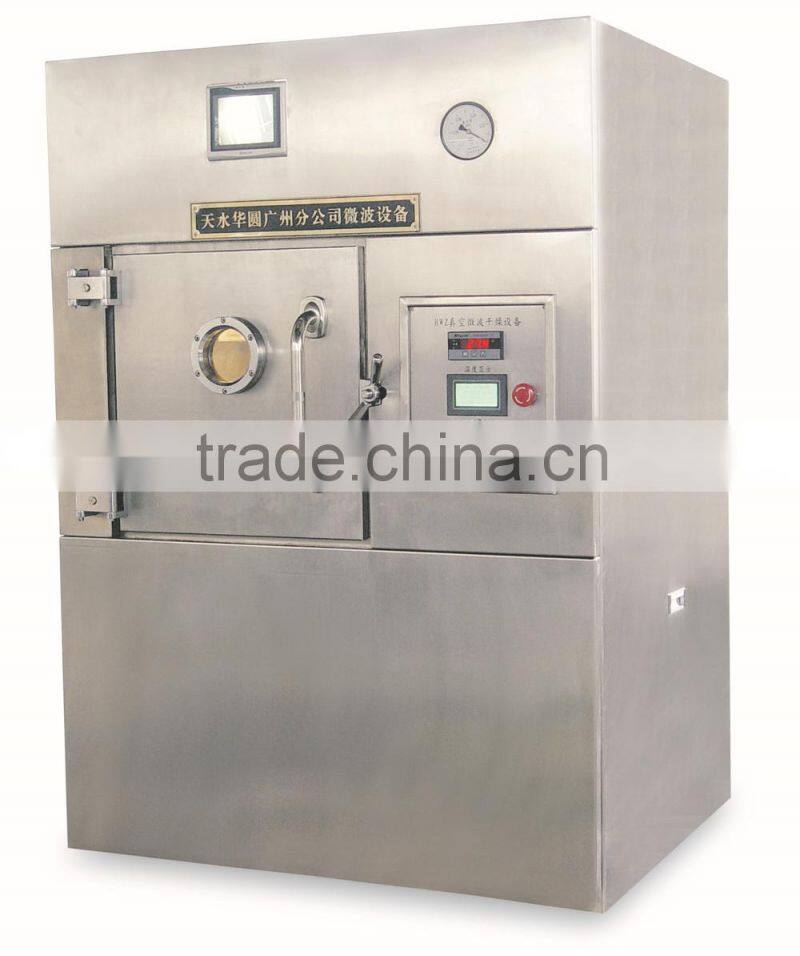

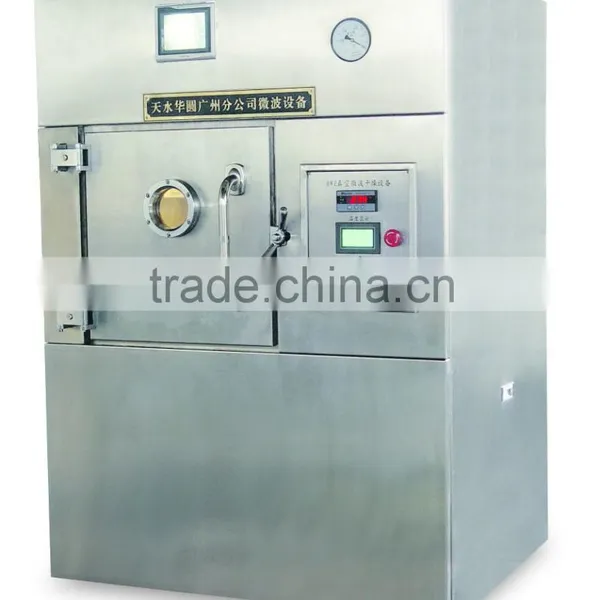

Rose Microwave Vacuum Drying Machine
This machine is used for low-temperature drying of heat sensitive Chinese medicine
solid preparations. It can also be used as vacuum concentration equipment. Its drying
speed is very quick and it can improve the quality of products dramatically. It characterizes
high efficiency, even heating, easy to control, and convenient installation and maintenance
etc. It is mainly applied to the drying, heating, sterilization and ripening of medicines, biological
products, agricultural product and by-product. Specially, it is excellent in the drying effect of
various pills and granulated materials. In addition, microwave low temperature
vacuum drying equipment still has the functions of sterilization and disinfection. It possesses
power linearity adjustable, intelligent control, and environment & temperature controllable.
Finished products are safe and healthy, and their quality guaranteed period can be prolonged.
Structural features:
Heat sensitive materials can be dried, dehydrated, condensed quickly under the normal
temperature condition. Their dehydrated temperature is controlled under 40º C. It makes
features of infrared measurement of temperature, digital timing, power adjustable,
intelligent control, easy operation, even heating, and energy saving 50% in power consumption
compared with general equipments.
Besides,it is also used for the drying, dehydration, and condensed treatment of many
oxidizable materials.Materials can be processed three-dimensional rotation and area of
spreading materials is big. There are different grades of equipments to be selected.
Technical parameters:
ItemUnit |
HWZ-BC |
HWZ-BC |
HWZ-BC |
HWZ-BC |
HWZ-25B/30B |
||||
Microwave Power |
5 |
10 |
15 |
20 |
25-30 |
||||
Microwave Frequency |
2450 |
2450 |
2450 |
2450 |
2450 |
||||
Supply Voltage |
380±10% |
380±10% |
380±10% |
380±10% |
380±10% |
||||
Area ofspreading materials |
0.75 |
0.75 |
2.25 |
2.25 |
3.4 |
||||
Sterilization Capability |
10 — 20 |
||||||||
Dehydration Spssd kg/ kw .h |
0.8—1.0 |
||||||||
Dehydration Temperature °C |
30—100 |
||||||||
External dimension (L*W*H) |
1290*1190*1880 |
1580*1190*1880 |
1780*2000*2140 |
1780*2000*2140 |
1880*2400*2420 |
||||
