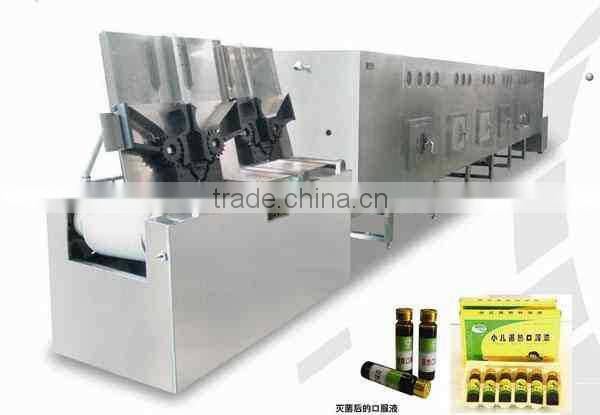

Speedy tunnel microwave liquid sterilizing machine
Main Application:
WMY series microwave liquid sterilizing machine is mainly used for the sterilization and fresh-keeping of liquid preparations, e.g. oral liquid and syrup, as well as soy, vinegar, and health-care tea etc. Besides, it can be used for the ripening and mellowing of liquor, vinegar etc. The materials are processed with microwave in a totally closed environment. So, the machine has merits of rapid sterilization, high efficiency, low temperature, remarkable ripening, convenient operation, easy to control and no touch pollution etc. The liquid materials are conveyed to the heater by pipeline transportation system, and then they are heated under the effect of microwave energy. Bacteria in the liquid materials are killed by biological effect and heating effect, which are generated under the action of microwave electromagnetic field.
Structural Features:
Model GWM 6-50 microwave liquid sterilizing machine adopts multi-port energy feed which is the most advanced and up-to-date in the present age. And, magnetron imported from Japan is used to ensure microwave output power adjustable. This magnetron has the characteristics of big power, high efficiency, good performance of anti-mismatched load, long serving life and air cooling. Heater is a box type and its main components are made of stainless steel. Its design, manufacturing process and appearance completely meet the requirements of pharmaceutical equipments GMP standard . The whole machine adopts modular design, resulting in convenient cleaning, installation, disassembly, inspection and repair. In addition, this equipment still adopts advanced choke device which can prevent microwave leakage, as well as open door cut-off protection device and door lock. As a result, the machine in whole has a compact, beautiful and smooth appearance, small space required.
Technical parameters:
| Model | GWM—20B(pipeline Type) | GWH—30B(pipeline Type) |
| Microwave Frequency | 2450±50MHZ | 2450±50MHZ |
| Microwave Output Power | 20KW(Adijustment) | 30KW(Adijustment) |
| Transmitting Speed | ≤5mw | ≤5mw |
| Microwave Leaking Value | 0—7m / min(step—less Adijustment) | Fixed Speed |
| Outside Dimensions | 9*1.2*1.4 | 1.5*1.2*1.4 |
| Sterlizing Capacity | 150—300kg/h | 200—400kg / h |
