Home > Products > microwave device > 30KW 3-layer tunnel microwave drying and sterilizing machine

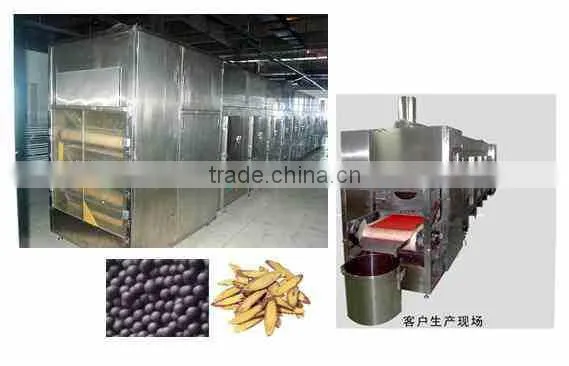

30KW 3-layer tunnel microwave drying and sterilizing machine
- 0 per Month
- Shanghai
Product Details
Condition: | New | Place of Origin: | Gansu, China | Brand Name: | Huayuan |
Model Number: | WMGD-30B | Type: | Dehydrator | Voltage: | 380V |
Power(W): | 30KW | Dimension(L*W*H): | 8200*1200*1700mm | Certification: | CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
30KW 3-layer tunnel microwave drying and sterilizing machine
Brief Introduction:
Model GWM tunnel microwave sterilizing & drying machine has received outstanding achievements and very good reputation in the market through unceasing technical innovation. After knowing that some clients had difficulties in purchasing equipments because of their small
workshops, compact layout and so on, we organized our power again? and developed new-generation Model WMGD double-layer tunnel microwave sterilizing & drying machine. It not only has a majority of advantages of former Model WMGD equipment, but also has new features of reducing usable area and strong market pertinence.
Structural Features:
It adopts vertical microwave radiation structure and microwave feed in entrance is set on the top. Microwave power can be adjusted during the range of 15kw-80kw. It has owned over ten kinds of specifications. It is optional to install viewing furnace door and protection functions such as shutdown upon open door. Microwave transformer can adopt immersed oil water cooled transformer, so as to improve working environment, increase serving life and adopt to continual working. This kind of microwave equipment has been used by many clients and widely received good reputations by those enterprises which make special products and have small workshops.
Main Technical Parameters:
Model | GWM-50B-5 | GWN-70B-5 | GWM-100B-5 |
Microwave Frequency | 2450±50MHz | 2450±50MHz | 2450±50MHz |
Transmitting Speed | 0-5m/min | 0-5m/min | 0-5m/min |
Wind Flow for Expelling Humidity | 5000-6500m3/H | 5000m3/H | 6000-8500m3/H |
Microwave Leaking Valve | ≤5mw/m² | ≤5mw/m² | ≤5mw/m² |
Outside Dimensions | 11200*1270*2280 | 14200*1270*2280 | 19000*1270*2280 |
Dehydrated Ability | 0.8-1.0kg/kw.h | 0.8-1.0kg/kw.h | 0.8-1.0kg/kw.h |
Sterilizing Capacity | 150-250kg/h | 200-300kg/h | 300-500kg/h |
