Waste Recycling Plant Trommel Screen For Organic Fertilizer
Introduction of Waste Recycling Plant Trommel Screen For Organic Fertilizer
Based on the introduction of foreign advanced technology, after doing a lot of investigation and research work, we make up program about technology of waste sorting equipment and also develop better suited the situation of china. After garbage compression and transfer, we can take bulky waste crushing, classification of garbage sorting and recycling packaging and other supportive measures. Bulky waste can be through bulky waste crushers, sorting, sorted, and further resource pack, such as furniture and electric appliance.
Application of Waste Recycling Plant Trommel Screen For Organic Fertilizer
Compost trommel screen is a classification machine for various kinds of materials, for example: compost, agriculture waste recycling, soil, coal, river sand, ore, refractory materials, grape pomace, chemical, waste etc.
Compost trommel screen can be manufactured to fit your specific needs. No matter adopt belt conveyor, hopper or other manner to feed the materails, it can run well without other special device.

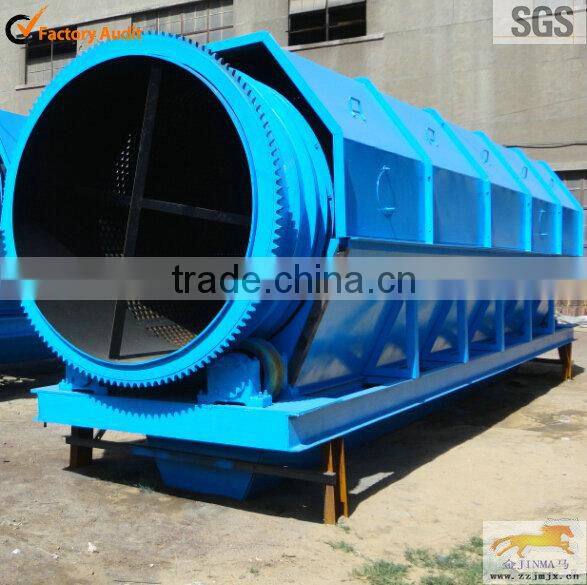

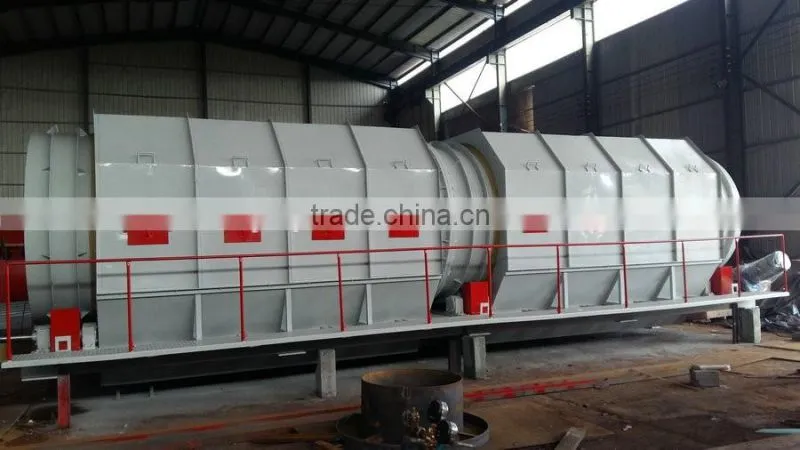

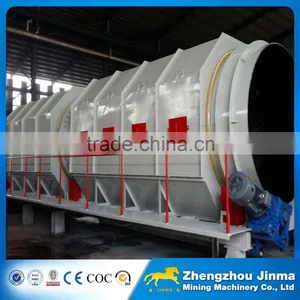

The waste recycling plant trommel screen with peep doors for convenience
Effects and principles of Waste Recycling Plant Trommel Screen For Organic Fertilizer
It includes hexagon drum or round drum,rack,hopper,reducer and motor.
it depends on centrifugal force and jigging action of the drum rolling,differentsize of the crushed materials can be screened and they will be in the respective hoppers and then take away by people or belt conveyor.
Waste Recycling Plant Trommel Screen For Organic Fertilizer technicial parameters:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

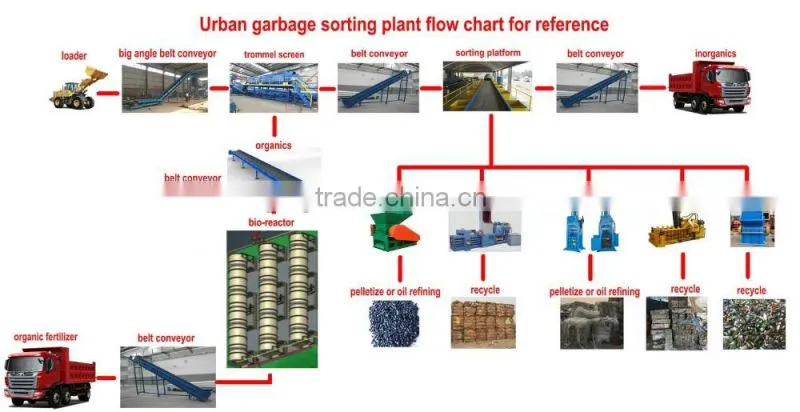

Municipal Waste → Metal Sorting → Plastic Sorting → Organic Waste → Fertilizer
This line is mainly to handle municipal life garbage. It can completely separate different components from waste and create the good condition for processing the down-stream products. The organic material can be processed into different end-uses of organic fertilizer via high temperature hydrolyze and prepare the technics. The equipment is with advanced technology, reasonable layout, low power consumption safe and durable.
Export Country of Rotary Trommel Screen:
Greece, Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.

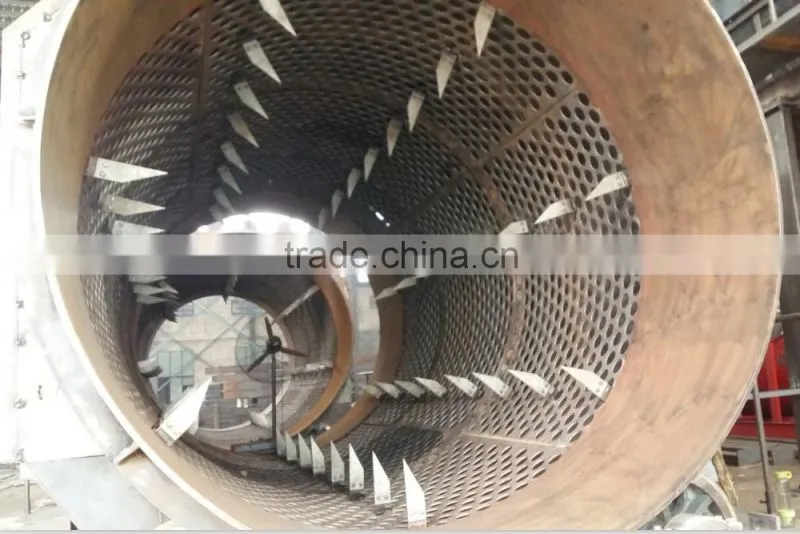

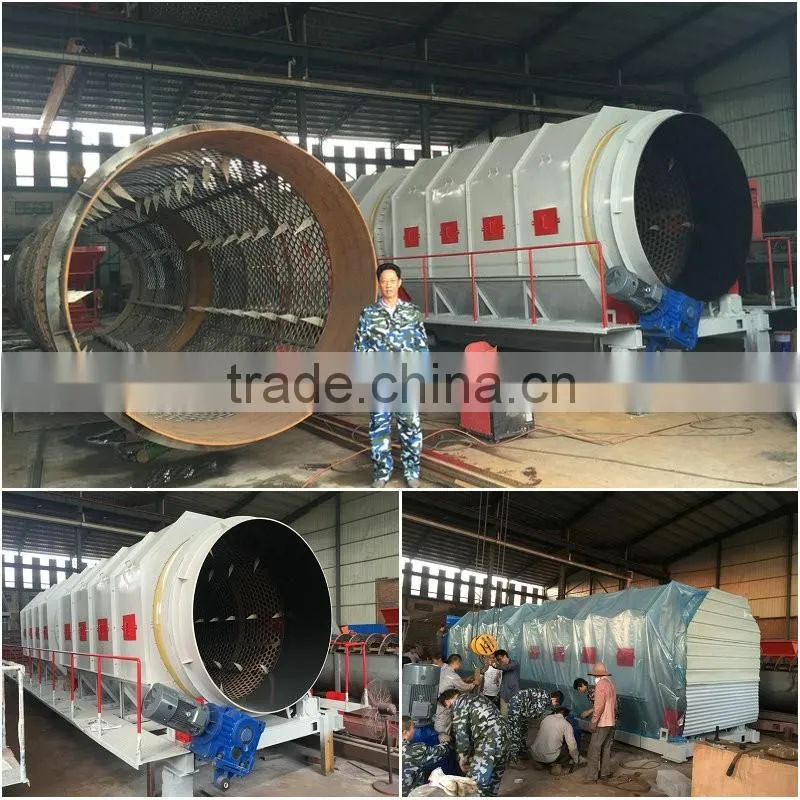

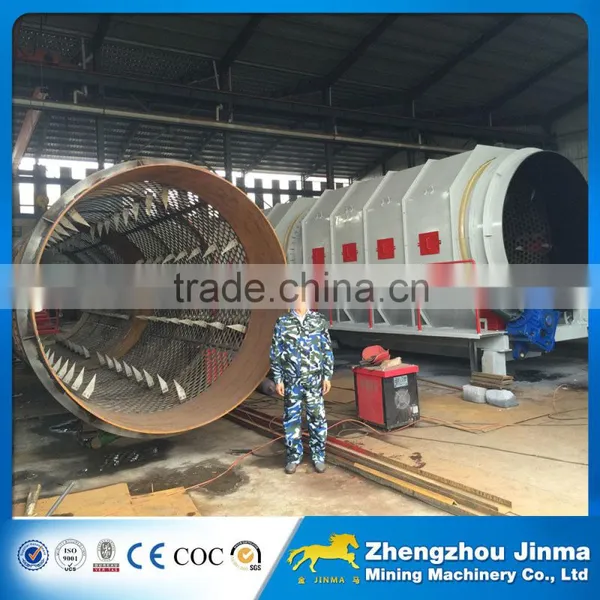

The waste recycling plant trommel screen with blades to crush the solid material
The delivery and shipping of waste recycling plant trommel screen

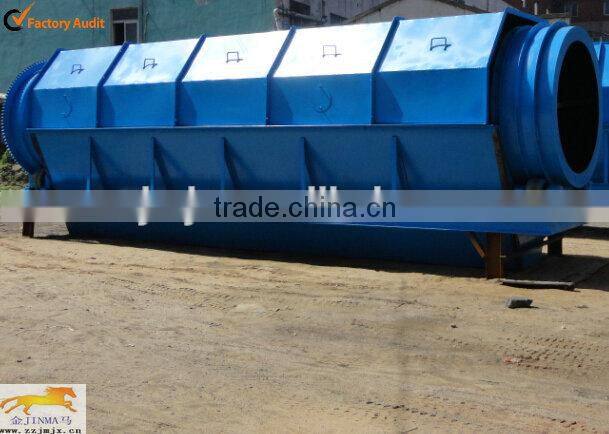

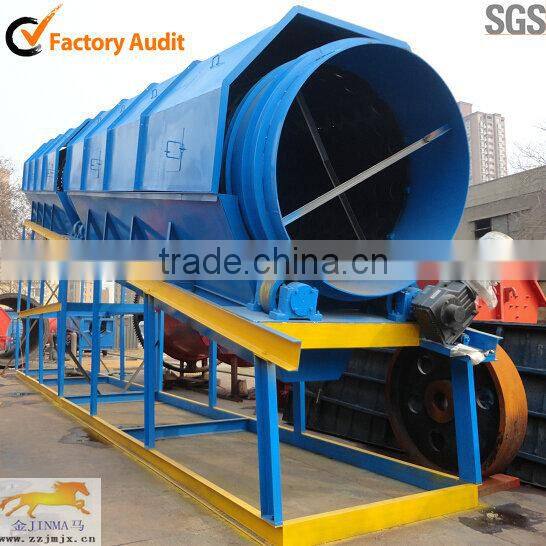

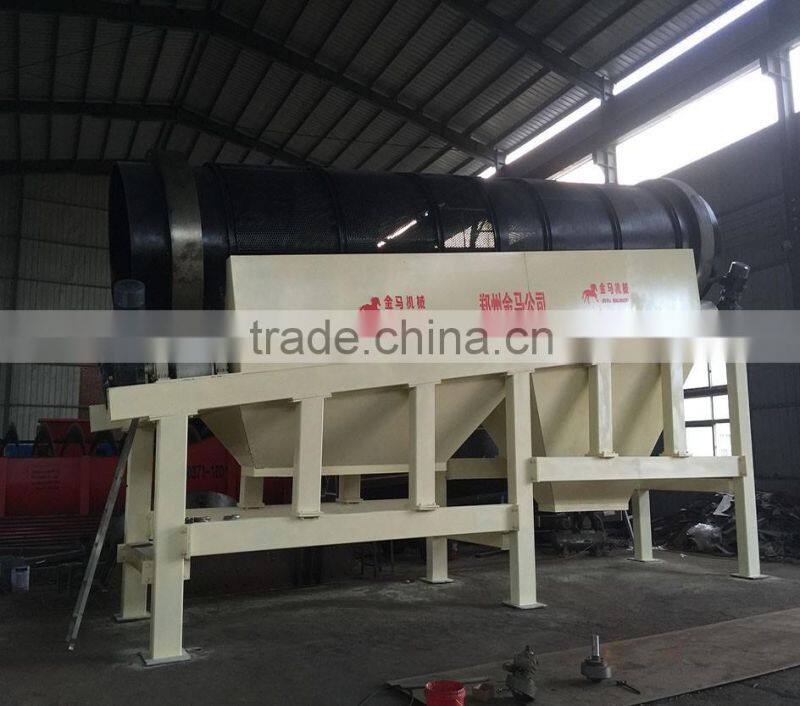

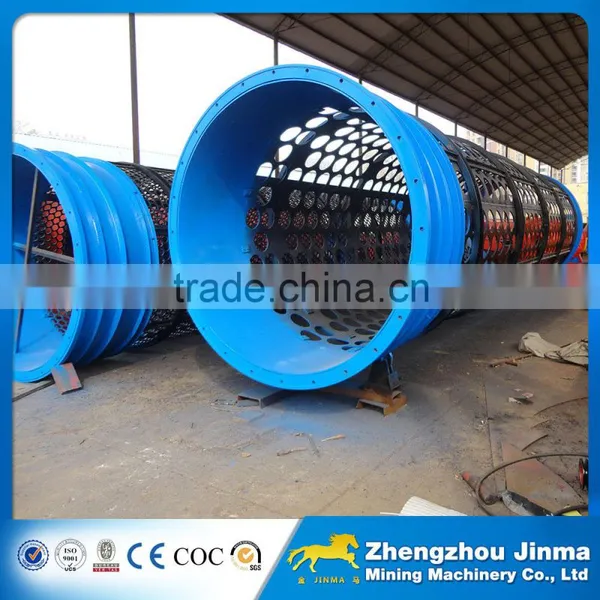

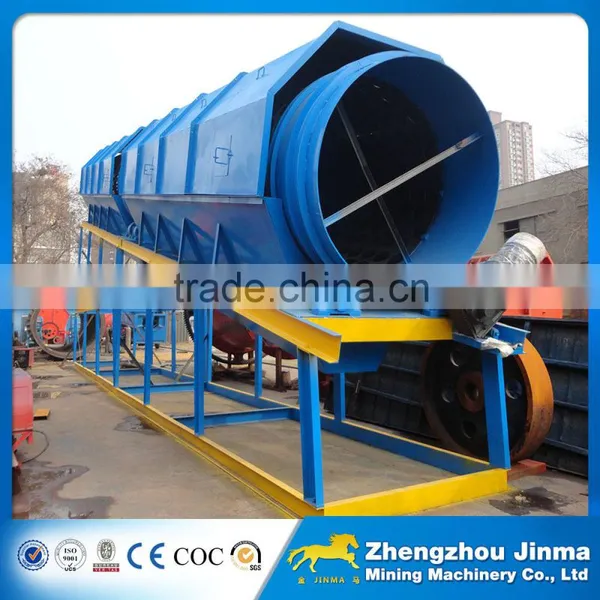

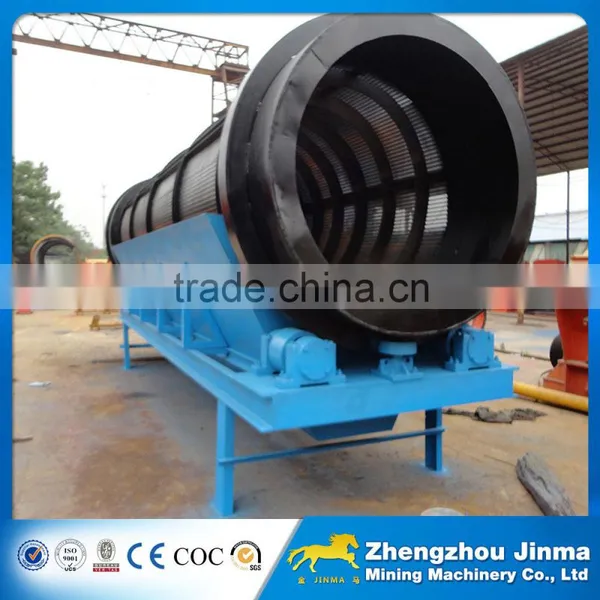

The different type of waste recycling plant trommel screen

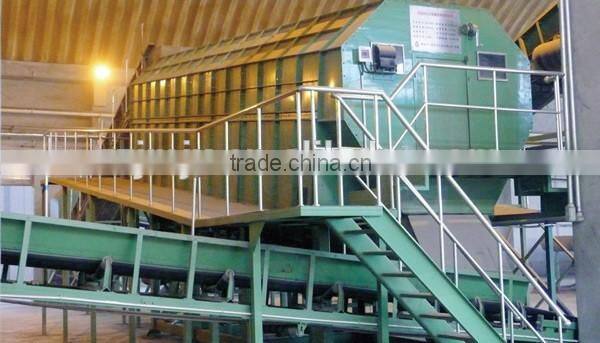

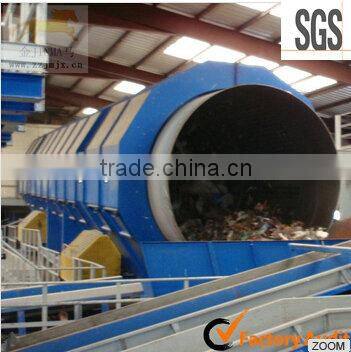

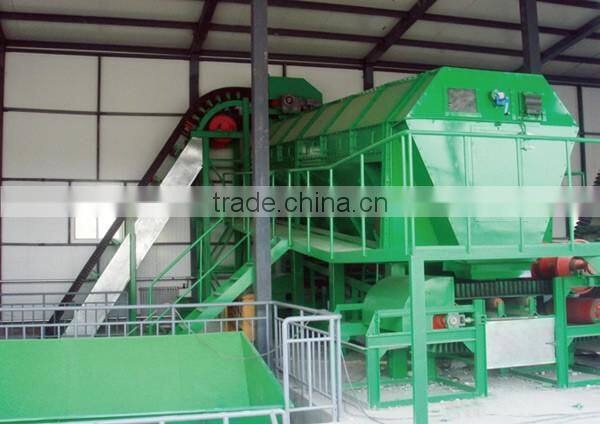

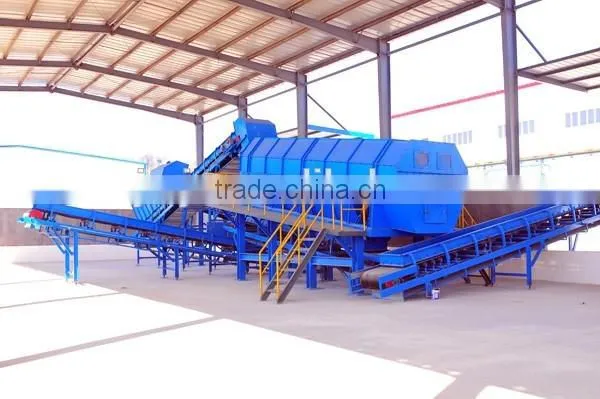

The working sites of waste recycling plant trommel screen
♦ Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976 .Our company specializes in manufacturing large and medium-size crusher sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD.
♦ Our company has passed ISO9001:2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. Our product has exporter over 50 countries, like Chile, Peru, India, Pakistan, Iran, Russia, Indonesia, South Africa, Turkey Malaysia, Tanzania, etc.
♦ With the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation.
For the more details of machine and future cooperation. Pls contact us if you feel free.
we sincerely welcome clients from all over the world to come for a visit and establish a long term win -win cooperation.
Zhengzhou Jinma Mining Machinery Co.,Ltd
Tel:+86-371-67511065
Fax:0086-371-67512579
Mobile :+86-139-3906-0840
Skype :cherish2228617703
