Garbage Sorting Trommel Screen
Garbage Disposal Trommel Screen Descriptions:
The solid waste recycling trommel provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Rotary drum screen is widely used for alluvial gold sieving and graded washing. It working principle is to enable the materials inside screen drum (passage) to move forward through the rotation around axis and the angles (6°-12°). The drum body is made of mesh grid or perforated steel plate. The motor drives the transmission system to rotate. This drum is frequently used for ore washing, sand washing, grading and desliming etc.
Garbage Garbage Sorting Trommel Screen Effects and Principles
It includes hexagon drum or round drum,rack,hopper,reducer and motor.
it depends on centrifugal force and jigging action of the drum rolling,differentsize of the crushed materials can be screened.And they will be in the respective hoppers and then take away by people or belt conveyor.
Municipal Waste → Metal Sorting → Plastic Sorting → Organic Waste → Fertilizer
This line is mainly to handle municipal life garbage. It can completely separate different components from waste and create the good condition for processing the down-stream products. The organic material can be processed into different end-uses of organic fertilizer via high temperature hydrolyze and prepare the technics. The equipment is with advanced technology, reasonable layout, low power consumption safe and durable
Export Country of waste sorting machine rotary drum screen
Greece, Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, etc.
Advantages of waste sorting machine rotary drum screen
1. The installation angle is small, easy to plug
2. Small footprint
3. Low noise and dust pollution
4. Smooth operation
5. Screening efficiency is high
6. Large output
Garbage Sorting Trommel Screen technical parameters:
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension |
Weight |
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |

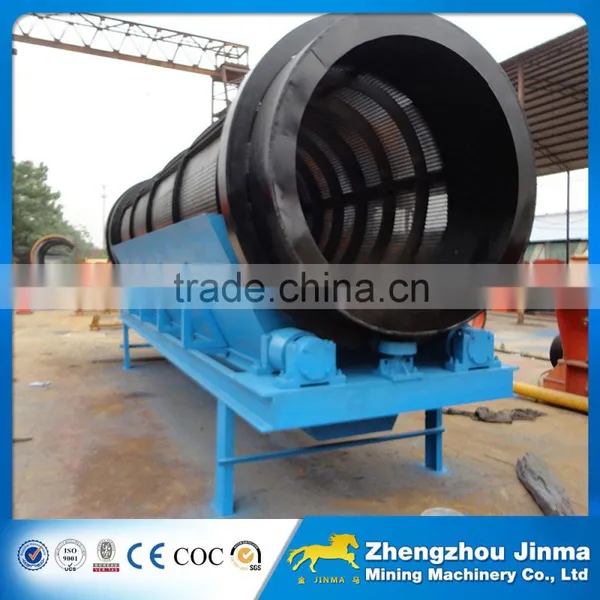

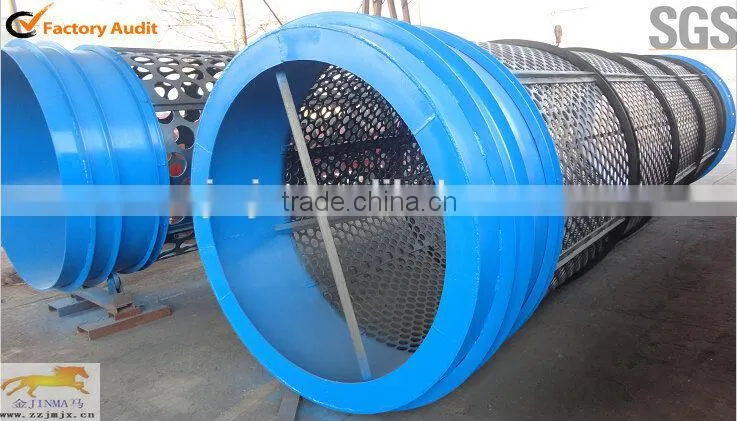

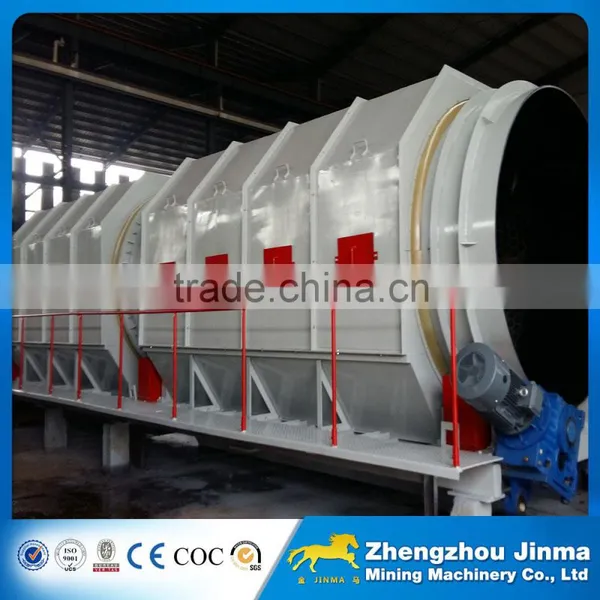

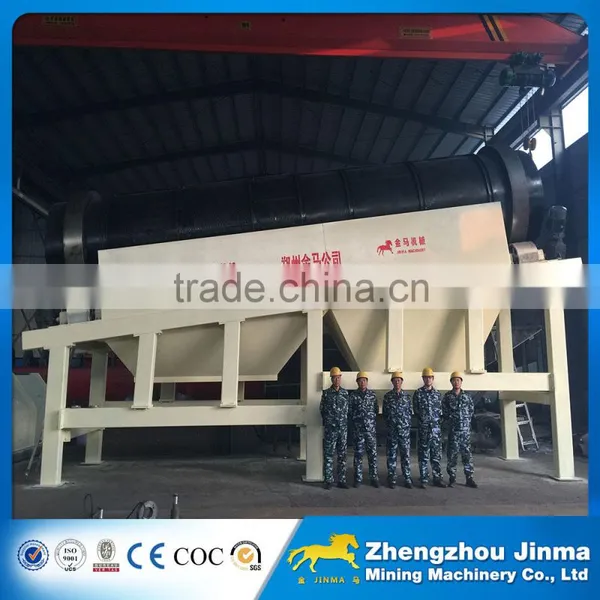

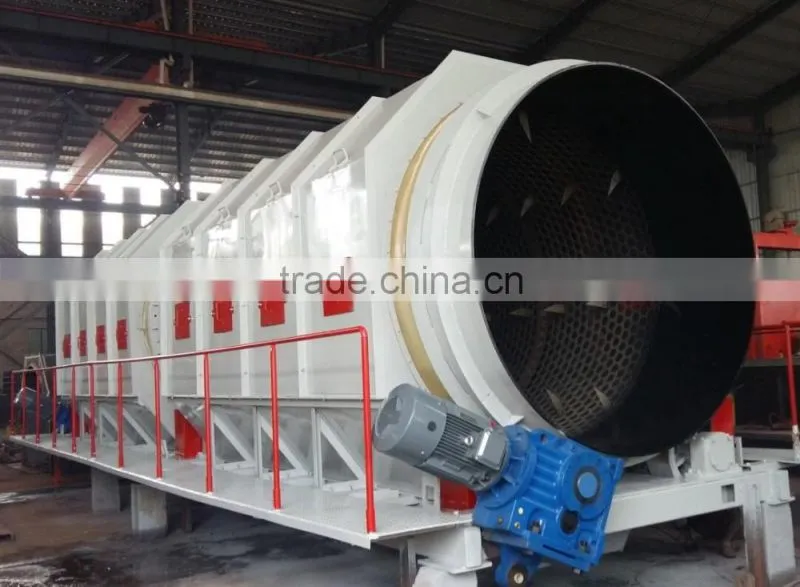

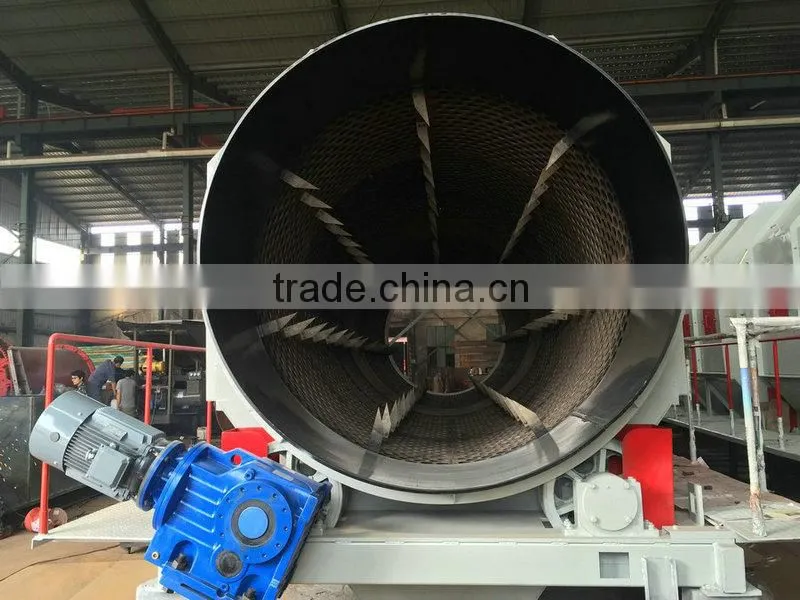

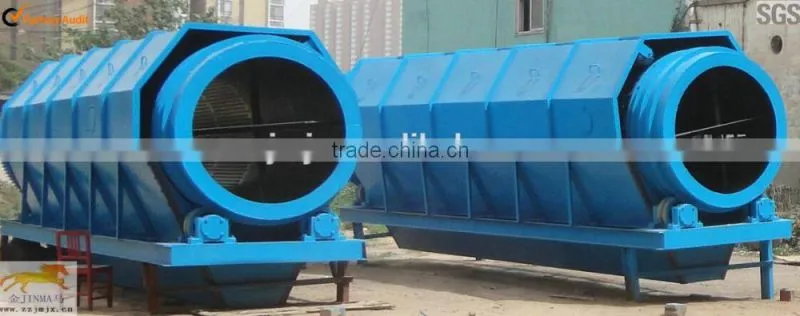

The finished Garbage Sorting Trommel Screen made by Jinma mining company

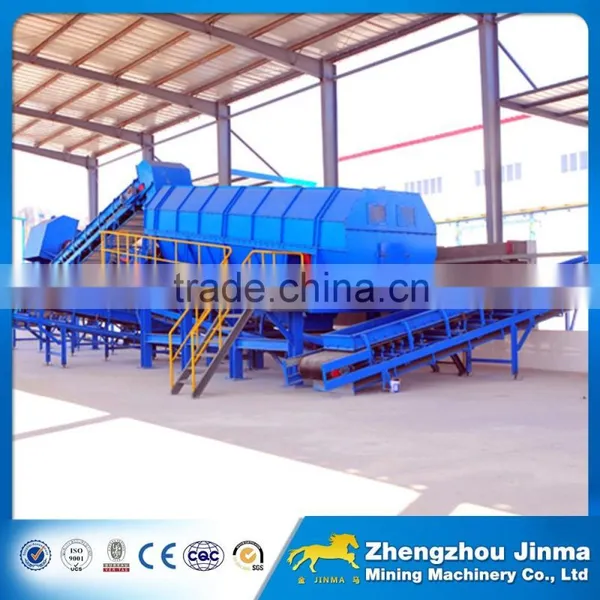

the conveyors used with the trommel screen

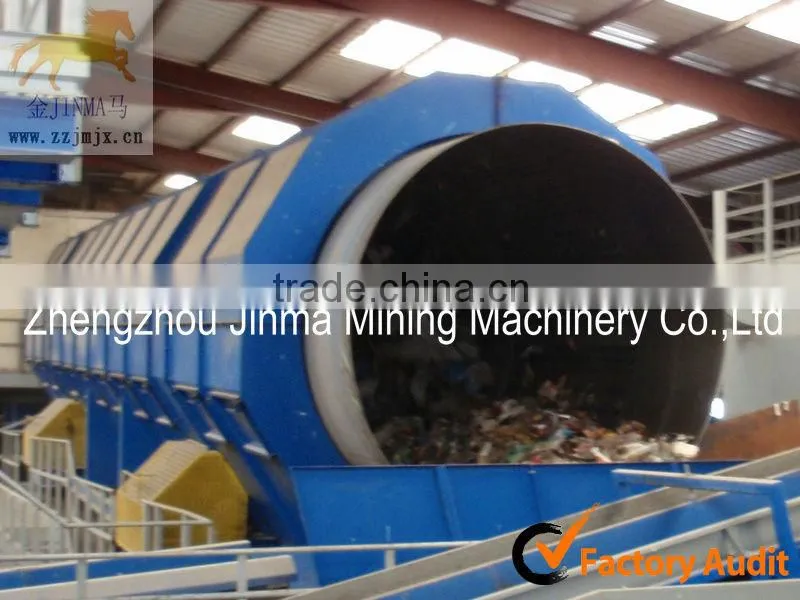

The working process of waste sorting machine trommel screen

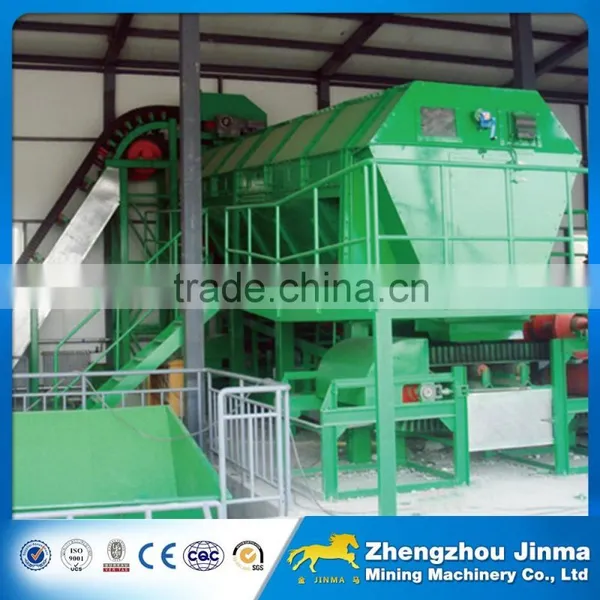

The working sites of waste sorting machine trommel screen
♦ Zhengzhou Jinma Mining Machinery Co.,Ltd was established in 1976. Our company specializes in manufacturing large and medium-size crusher sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Our company covers an area of 7000 square meters. Now, our annual export sales about six million USD
♦Our company has passed ISO9001:2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. Our product has exporter over 50 countries, like Chile, Peru, India, Pakistan, Iran, Russia, Indonesia, South Africa, Turkey Malaysia, Tanzania, etc.
Oversea customers come to visit Jinma comoany:
For the more details of machine and future cooperation. Pls contact us if you feel free.
we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation.
Zhengzhou Jinma Mining Machinery Co.,Ltd
Tel: +86-371-67511065
Fax: +86-371-67512579
Skype : cherry74120
Send Inquiry to This Supplier
