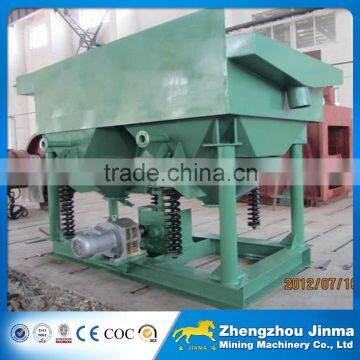

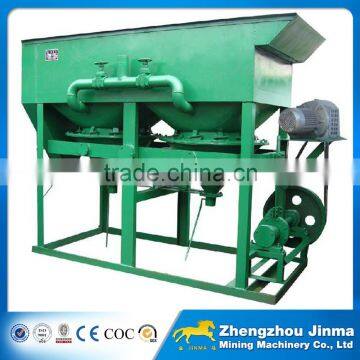

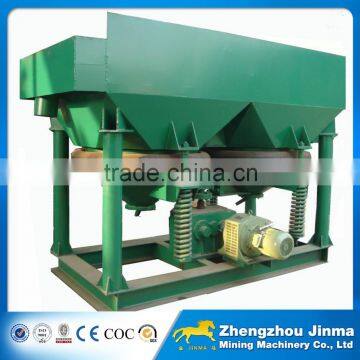

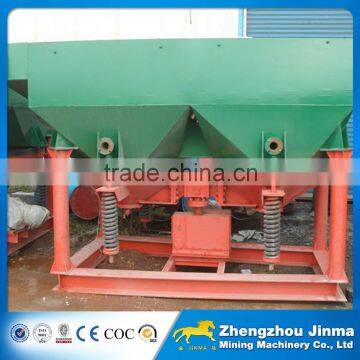

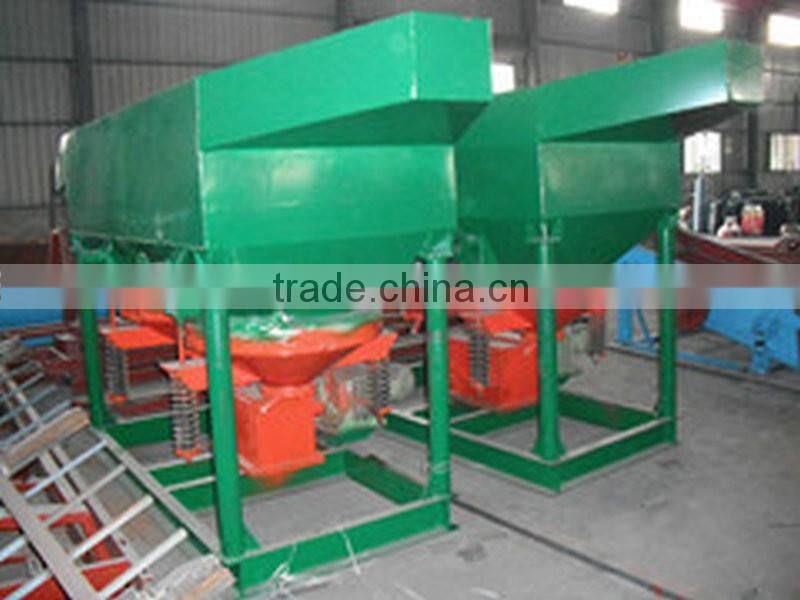

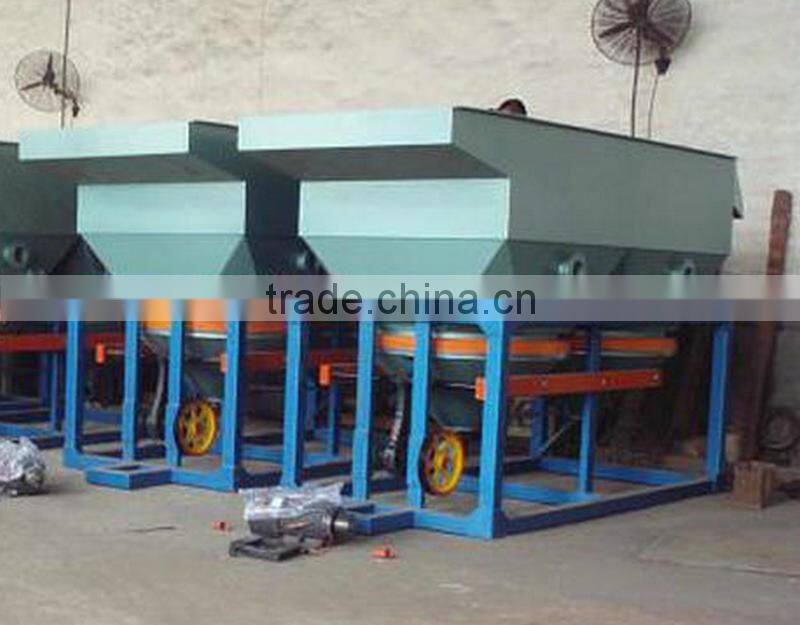

Introduction of Jigging machine
Saw-tooth wave jig Machine is a new type of gravity concentration equipment which is based on the traditional jig according to the distribution rule of jigging bed theory, its jig pulse curve likes the saw-tooth waveform which makes the upward flow faster than the downward; the upward flow time is short, the downward is long, which overcomes the shortcoming of upward flow, downward flow and action time produced by the sine-wave pulse curve, enhances the loose degree of the bed and alleviates the inhalation effects, then the heavy mineral particles in the ore are fully settlement, which enhances the sorting ratio and recovery of equipment.

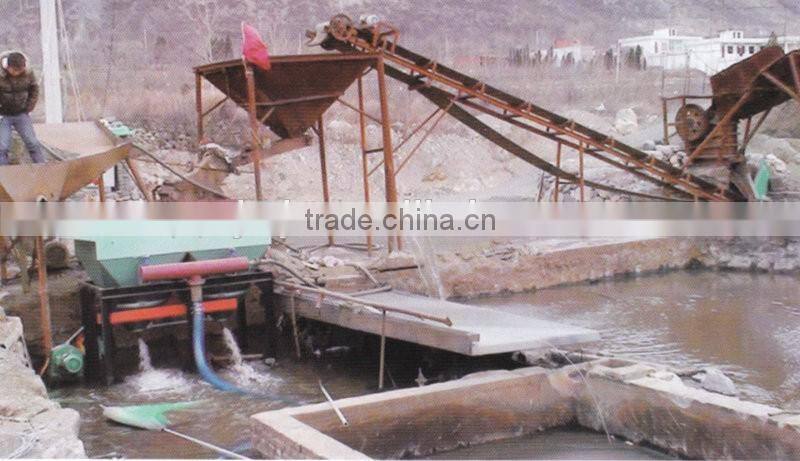

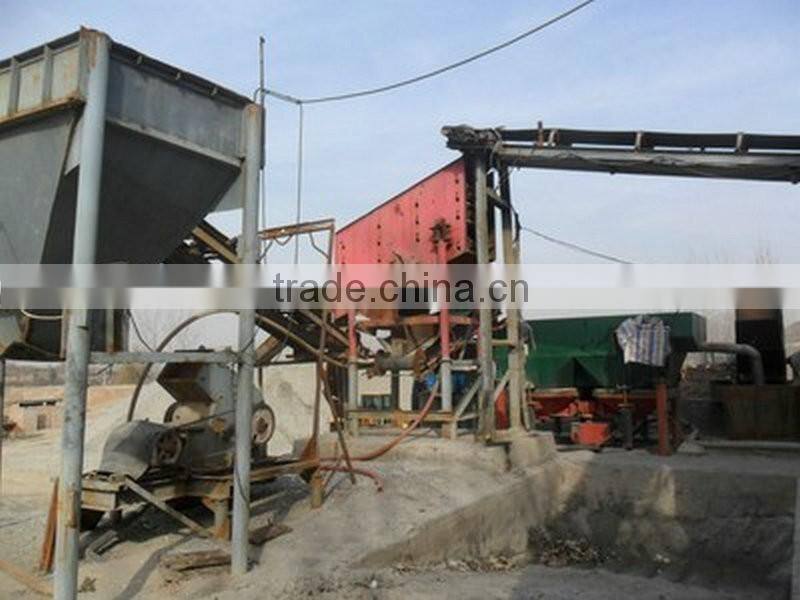

Application of Saw-tooth Wave Jig Machine
Saw-tooth wave jig Machine is a new type of energy-saving gravity concentration device. Due to its high processing capacity, large range of separation size and simplicity of operation and maintenance, It is widely used in the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals.
Jigging machine specifications:
|
Hutch |
Diaphragm |
Feeding Size (mm) |
Amount of make-up water (m3/t) |
Make-up water pressure (Mpa) |
Capacity (t/h) |
Power (kw) |
Dimensions (mm) |
Weight (Kg) |
||
|
Shape |
Area (m2) |
Stroke (mm) |
Frequency of Stroke (r/min) |
||||||||
JT0.57-1 |
Trapezoid |
0.57 |
8.5—12 10—17 12-21 |
80-180 |
<6 |
1-2 |
≥0.05 |
1.5-3 |
1.5 |
1550×780×1530 |
610 |
JT1-1 |
Trapezoid |
1.04 |
<10 |
2-3 |
2.5-5 |
2.2 |
2270×1110×1890 |
900 |
|||
JT2-2 |
Rectangle |
2.28 |
<10 |
2-4 |
5-10 |
3 |
3225×1550×2050 |
1640 |
|||
JT3-1 |
Trapezoid |
3 |
12-30 |
50-125 |
<10 |
3-6 |
7.5-15 |
5.5 |
2745×2000×3030 |
3085 |
|
JT4-2 |
Rectangle |
4 |
25-57 |
<25 |
4-8 |
8-20 |
7.5 |
4240×1990×2750 |
3098 |
||
JT4-2S |
Rectangle |
4 |
25-57 |
<25 |
4-8 |
8-20 |
4×2 |
4240×1990×2750 |
3500 |
||
JT5-2 |
ATrapezoid |
4.86 |
12-30 |
<10 |
3-6 |
12-25 |
7.5 |
3600×2000×2600 |
4500 |
||
