Description of alluvial gold concentrator for sale :
Centrifuge Gold concentrator is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
alluvial gold concentrator for sale applications:
The STL Centrifuge will separate any heavy material from any light material so long as there is sufficient difference in the densities of the individual particles in question. The Concentrator can treat particle sizes from below 10 microns up to a maximum of 6mm and is most commonly used for recovery in Gold and Platinum. Other recovery uses include Mercury, Palladium, Tantalum, Copper, Silver and Diamond Indicator Minerals.
Jinma brand alluvial gold concentrator for sale features:
Centrifugeis kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
Four models are available. Application shows that the recovery can be as high as 99%, especially for the case in recovering the natural gold in lode ore with 65% of the ore having a milling size of 0. 074mm, the recovery for the natural gold is expected up to 98%, For that natural gold of 0.004mm in particle size, the recovery is 97%. The cleaning up cycle is 1~4 hours, and the upgrade ratio is up to 1,000 times.
Rugged design and a high degree of quality manufacturing ensures that every Concentrator will provide many years of reliable, trouble-free operation in even the most severe operating environments.
alluvial gold concentrator for sale technical parameters:
Model |
STL20 |
STLB30 |
STLB60 |
STLB80 |
STLB100 |
Capacity (T/H) |
0.2-0.3 |
2-3 |
10-15 |
35-40 |
80-120 |
Particle size (mm) |
0-3 |
0-4 |
0-6 |
0-6 |
0-6 |
Feeding concentration (%) |
0-50% |
||||
Back wash water (T/H) |
1.5-2 |
4-6 |
10-15 |
17-25 |
40-60 |
Output (kg/time) |
2-3 |
10-20 |
30-40 |
60-70 |
70-80 |
Discharge cycle (H) |
1-4 |
||||
Power (kw) |
0.75 |
1.5 |
5.5 |
11 |
18.5 |
Revolution (R) |
800 |
600 |
460 |
400 |
360 |
Pressure water |
20 |
120 |
400 |
1200 |
1500 |
Weight (T) |
0.25 |
0.5 |
1.2 |
1.5 |
2 |
Approximately dimension(mm) |
790x785x790 |
1180x1140x1250 |
1970x1670x1750 |
2300x1800x2200 |
2500x2000x2400 |

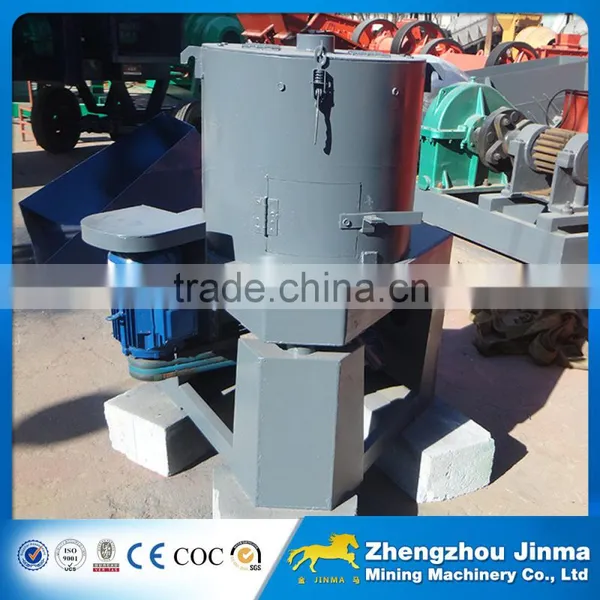

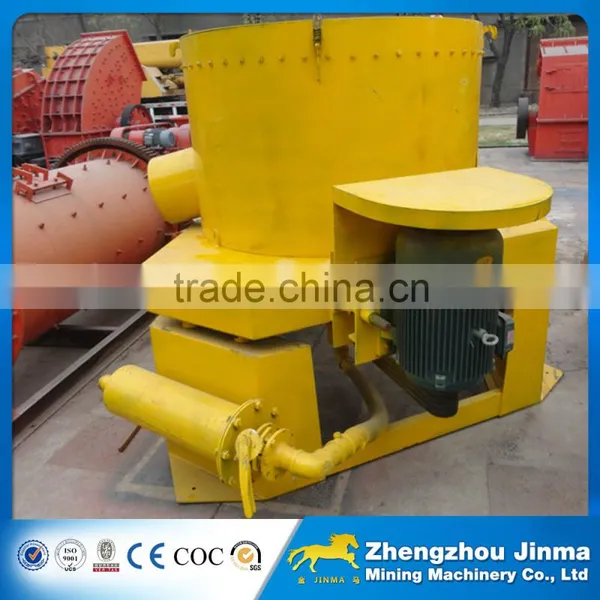

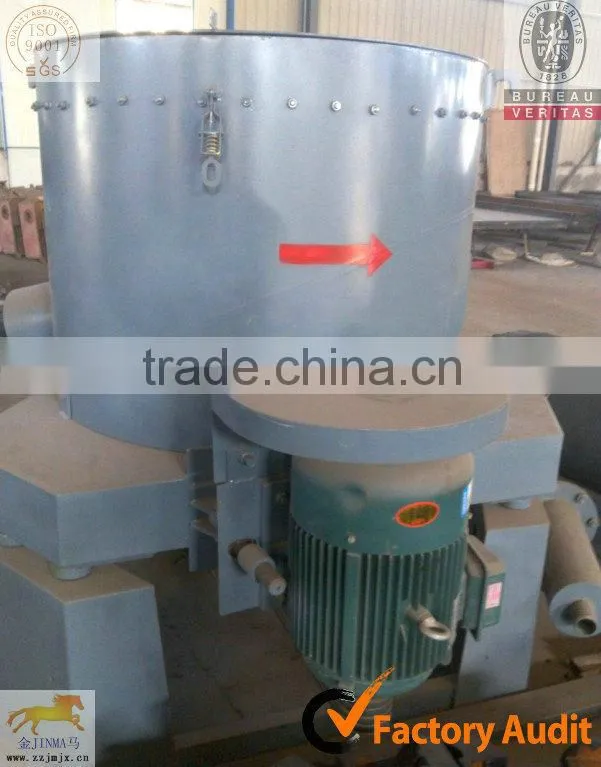

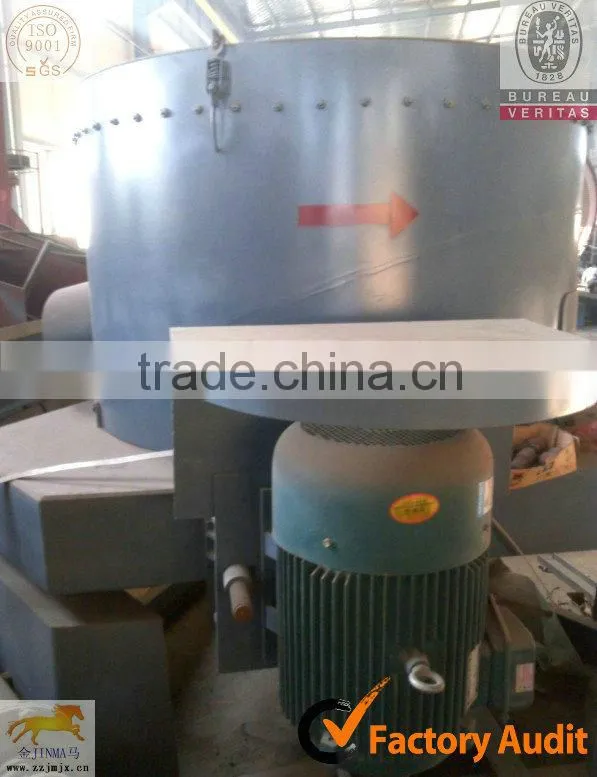

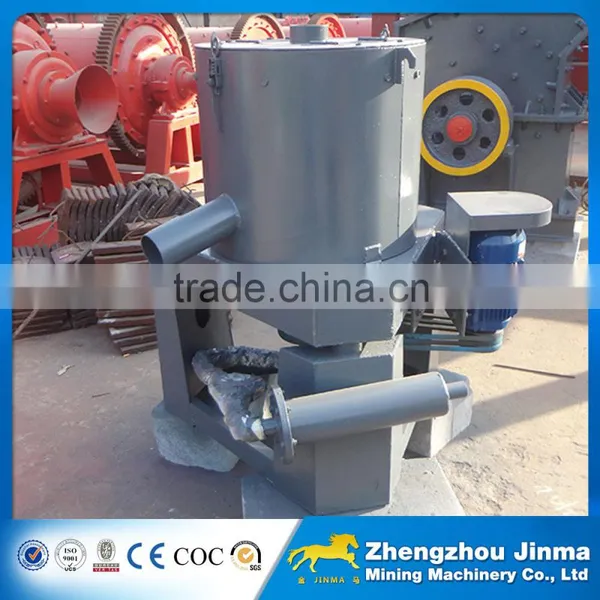

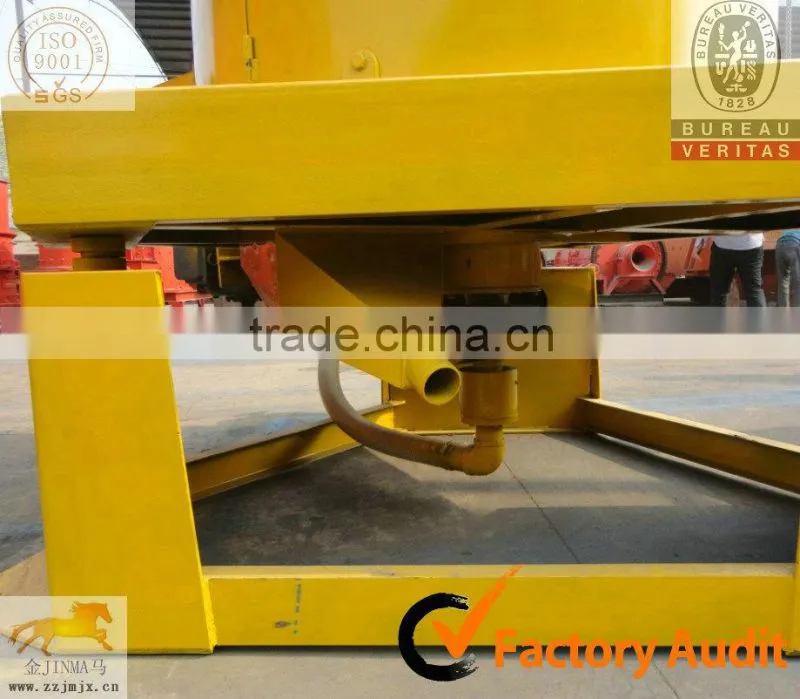

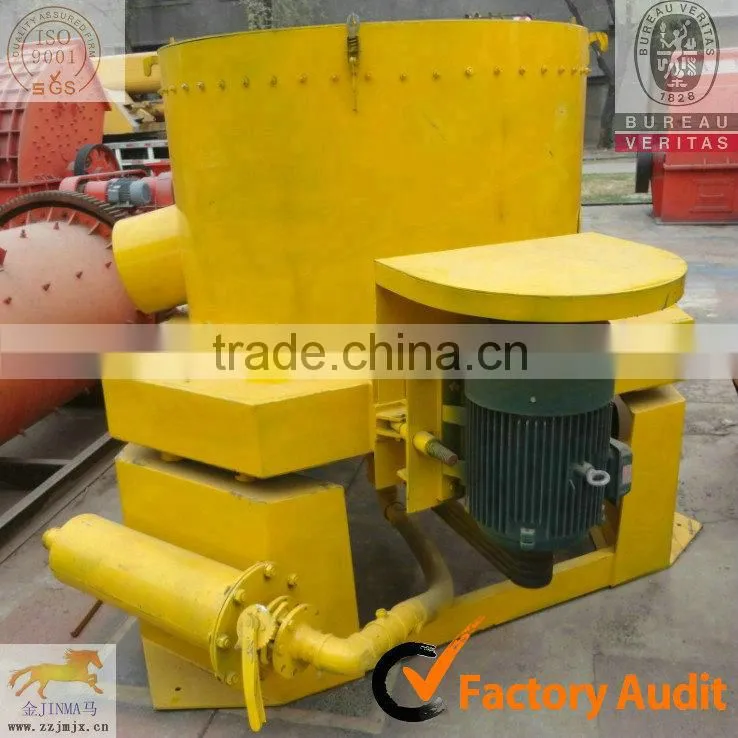

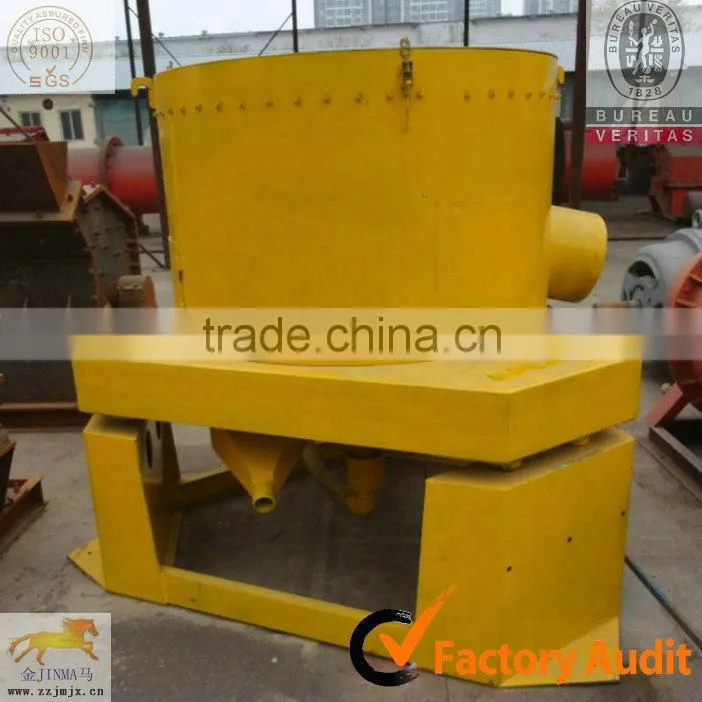

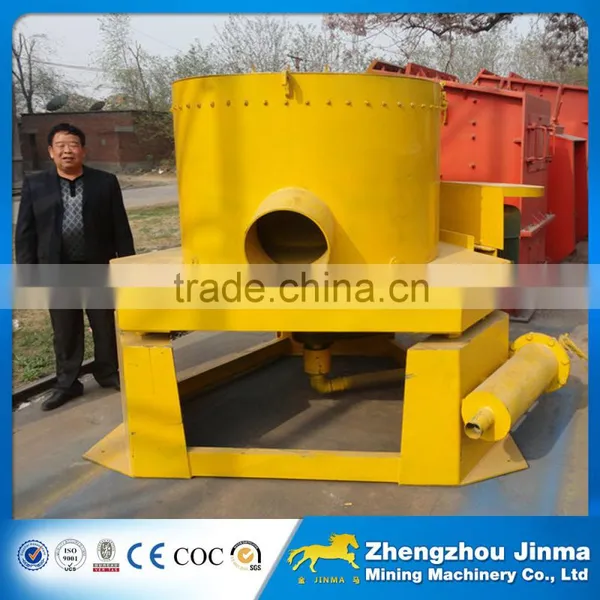

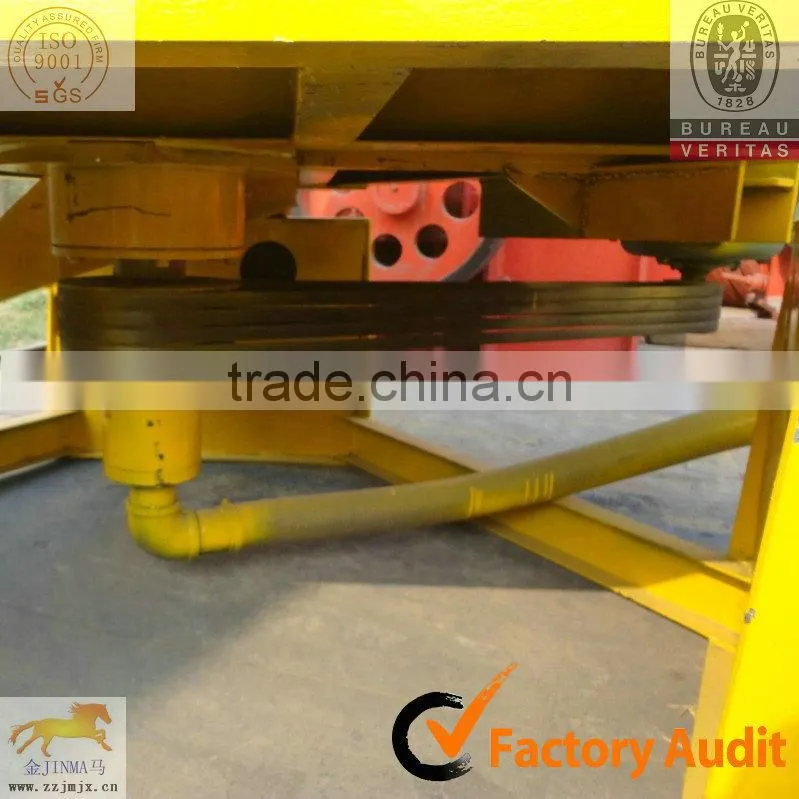

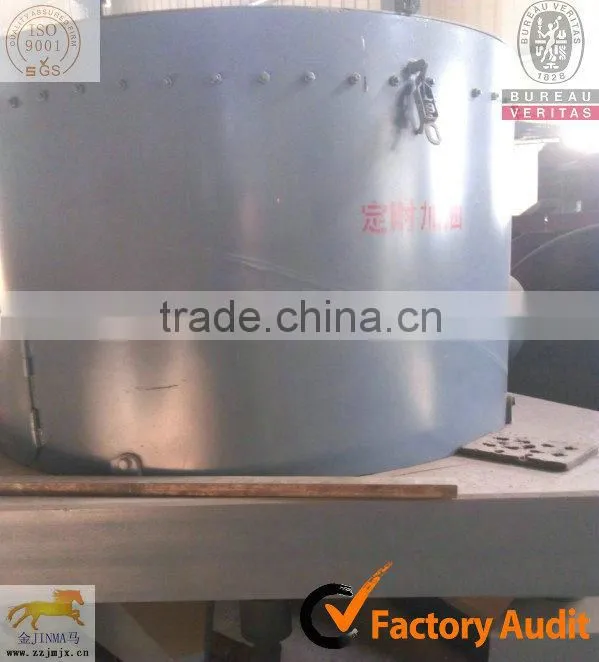

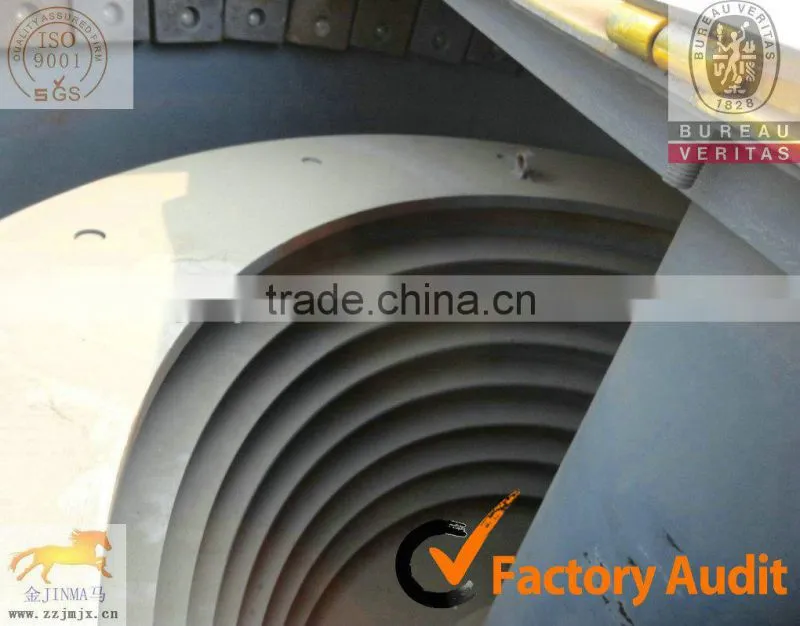

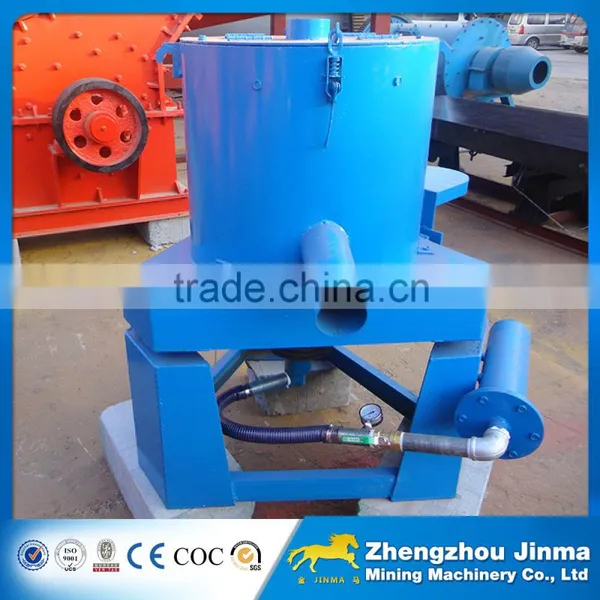

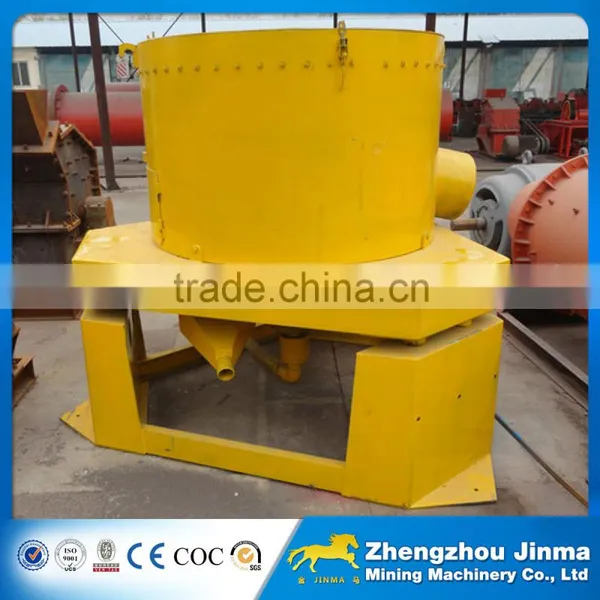

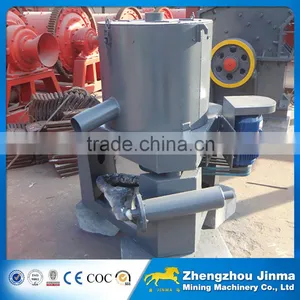

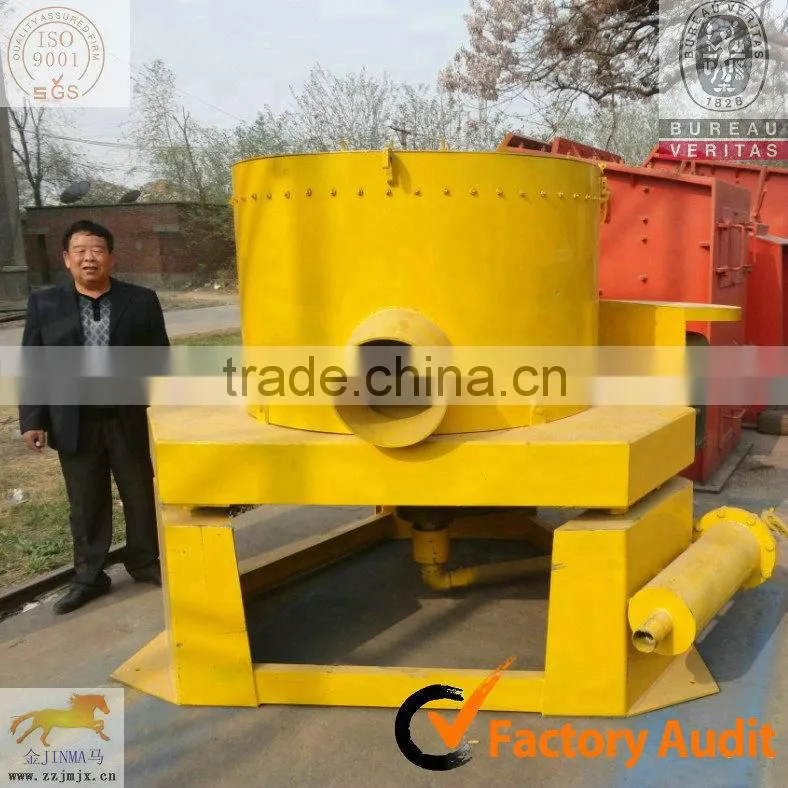

alluvial gold concentrator for sale produced by Jinma mining:
