China Energy Saving Used Ball Mill For sale
1.Application of energy saving ball mill
Energy saving ball mill is a key equipment to grind the crushed materials, and the grinding mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
2.Working principal of energy saving ball mill
The grinding mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

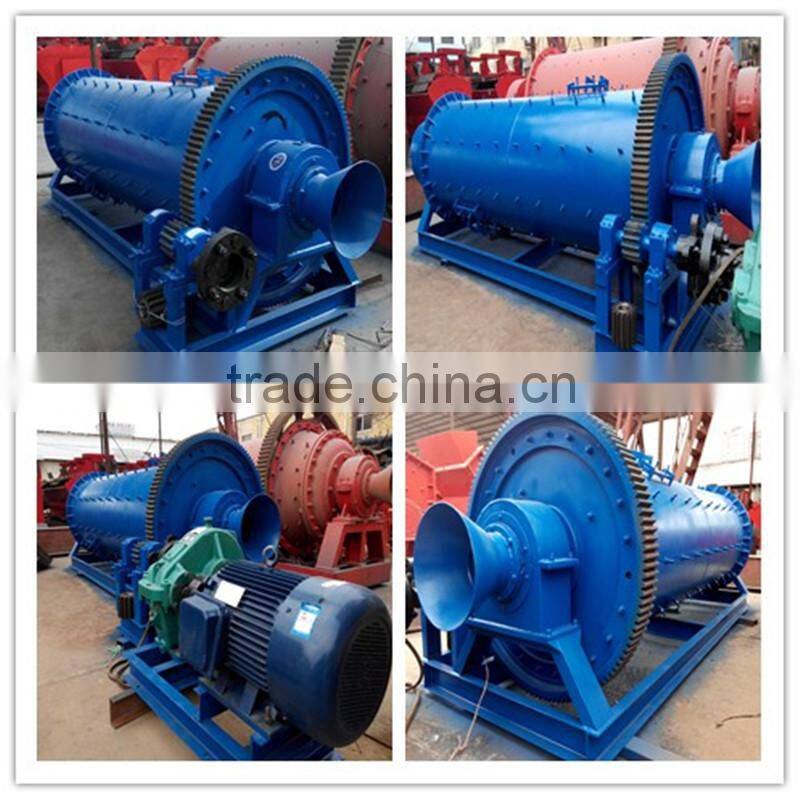

Energy saving ball mill pictures
3.Energy saving ball mill features
1>Our energy saving ball mill can be divided into dry type ball mill and wet type lattice grinding mill.
2>Our energy saving ball mill is widely used in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.
3>Reduce energy consumption, Simple structure, Processing capacity

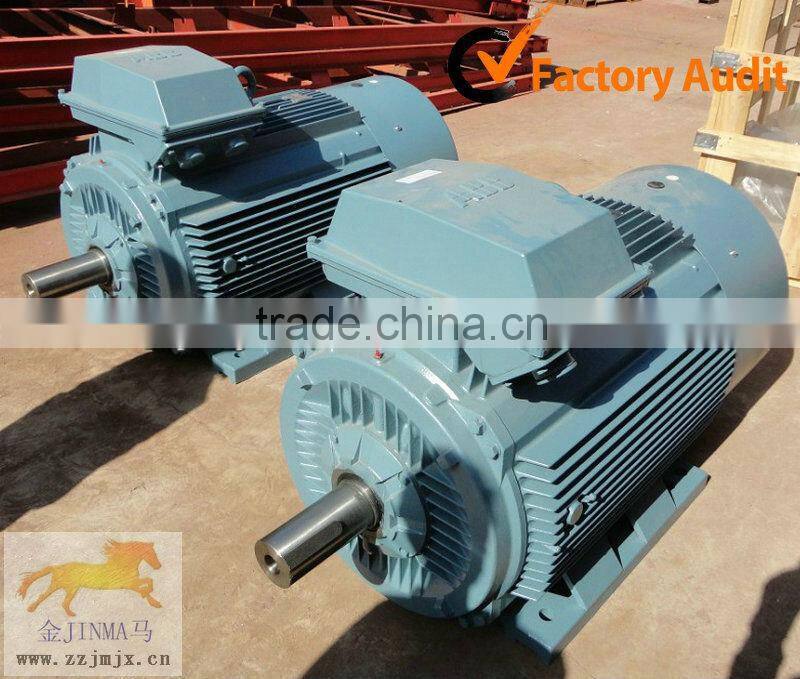

the ABB motor
4.Technical parameter of energy saving ball mill
Model |
Rotation speed (r/min) |
Grinding media loading (t) |
Feed size (mm) |
Discharge size (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
Φ900×2100 |
38 |
1.5 |
≤15 |
0.075-0.89 |
0.5-2 |
15 |
3.9 |
Φ900×2400 |
38 |
1.8 |
≤15 |
0.075-0.89 |
0.7-2.8 |
18.5 |
4.5 |
Φ900×3000 |
38 |
2.51 |
≤15 |
0.075-0.89 |
0.8-3.5 |
22 |
5.0 |
Φ1200×2400 |
32 |
3.8 |
≤20 |
0.074-0.4 |
0.9-4.8 |
30 |
9.2 |
Φ1200×2800 |
32 |
4.0 |
≤20 |
0.074-0.4 |
1.0-5.0 |
30 |
9.5 |
Φ1200×3000 |
32 |
4.5 |
≤20 |
0.074-0.4 |
1.2-5.6 |
37 |
11.5 |
Φ1200×4500 |
30 |
5.5 |
≤20 |
0.074-0.4 |
1.5-6.0 |
55 |
13.6 |
Φ1500×3000 |
27 |
7.0 |
≤25 |
0.074-0.4 |
2.5-6.5 |
75 |
15.0 |
Φ1500×3500 |
27 |
8.5 |
≤25 |
0.074-0.4 |
3.0-8.2 |
75 |
15.6 |
Φ1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
4-10 |
95 |
21 |
Φ1500×5700 |
27 |
12 |
≤25 |
0.074-0.4 |
4-13 |
110 |
23.5 |
Φ1830×3000 |
24 |
12 |
≤25 |
0.074-0.4 |
5-15 |
130 |
31 |
Φ1830×3600 |
24 |
13 |
≤25 |
0.074-0.4 |
5-16 |
130 |
32 |
Φ1830×4500 |
24 |
14 |
≤25 |
0.074-0.4 |
5-18 |
155 |
33.5 |
Φ1830×7000 |
24 |
21 |
≤25 |
0.074-0.4 |
6-20 |
210 |
36 |
Φ2100×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
7-26 |
210 |
38 |
Φ2100×3600 |
24 |
21 |
≤25 |
0.074-0.4 |
7-35 |
215 |
39.5 |
Φ2100×4500 |
24 |
26 |
≤25 |
0.074-0.4 |
8-42 |
245 |
43.5 |
Φ2200×3000 |
21 |
28 |
≤25 |
0.074-0.4 |
8-43 |
245 |
46 |
Φ2200×4800 |
21 |
35 |
≤25 |
0.074-0.4 |
9-45 |
285 |
48 |
Φ2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
8-60 |
285 |
55 |
Φ2700×4500 |
21 |
48 |
≤25 |
0.074-0.4 |
12-83 |
475 |
79 |
the gear of the ball mill
Discharge port of grinding mill
Ball Mill Grinding steel ball:
Zhengzhou Jinma mining machinery
1) our main products jaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher and so on more than 30 varieties of broken machinery.
2) 38 years year of production experience and processional Research and Development team
3)We provide competitive prices, reliable quality products and swift delivery6) the products are exported to Chile, Peru, Vietnam, Indonesia, Malaysia, India, the Philippines, Thailand, Laos, Russia, Turkey, Iran, north Korea, kazakhstan, azerbaijan, Latvia and so on ,more than 30 countries and regions.
the certificate
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
our clients
Export Country
Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.

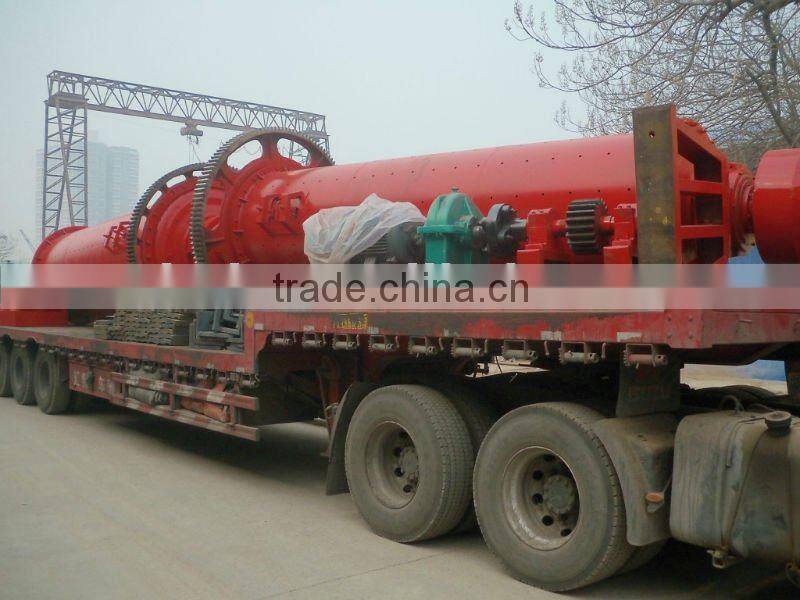

the delivery of energy saving ball mill
Notes:Our company with the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation . Believe us and choose us.We will give you the most suitable price with full specification.
