5R4121 Raymond Mill
Factory Direct Supply | 80‑325 Mesh Adjustable | Capacity:8‑15t/h | 1‑Year Warranty | Custom Voltage Available
5R4121 Raymond Mill is high-output large-sized grinding equipment upgraded from traditional Raymond mill, designed for large-scale non-metallic mineral powder processing. It adopts a 5‑roller vertical suspension grinding structure with larger grinding cavity and much higher working efficiency.
It completes feeding‑grinding‑classifying‑collecting‑dust removal automatically. Suitable for non‑flammable minerals with Mohs hardness ≤7 and moisture ≤6%, including limestone, calcite, dolomite, gypsum, talc, bentonite, barite, feldspar, quartz stone, marble, etc.
Finished fineness is adjustable from 80‑325 mesh with uniform powder. Upgraded thickened wear‑resistant parts ensure stable performance, low failure rate, energy saving, low dust and noise. Easy operation and maintenance reduce labor cost.
Widely used in large mineral powder plants, building materials factories, chemical raw material factories and heavy-duty powder projects. Factory direct supply with custom configuration and voltage, available for global delivery.
Working Principle
|
Large materials are crushed to ≤30mm, sent into storage bin by bucket elevator, then fed evenly into grinding chamber by electromagnetic feeder. Inside the main machine, 5 rollers press rings under centrifugal force to grind materials. Fine powder is classified by high‑speed analyzer and collected by cyclone collectors. Coarse powder falls back for re‑grinding to form closed‑loop production. Exhaust gas is purified by pulse dust collector. Whole dry‑type sealed operation meets strict environmental protection standards. |
Core Advantages
High Efficiency & Large Capacity: 5‑roller design expands grinding area greatly. Stable capacity 8‑15t/h with over 99% screening rate, perfect for mass large-scale powder production.
Durable & Long Service Life: Wear parts made of extra thick high‑manganese steel. Reinforced main frame supports 24‑hour continuous stable heavy load operation.
Energy‑Saving & Eco‑Friendly: Sealed dry‑type system with pulse dust collector for ultra low dust and noise. No wastewater discharge. Optimized large power motor saves over 25% power consumption.
Precise Fineness Control: 80‑325 mesh adjustable via analyzer speed. Uniform particle size and high‑purity finished powder.
Stable Operation & Low Failure Rate: Integral heavy casting structure reduces vibration and breakdowns. Strict assembly process improves overall stability.
Easy Maintenance & Low Labor Cost: Standardized universal spare parts easy to purchase. Centralized control cabinet supports single‑person simple operation.
Wide Application: Process dozens of non‑metallic minerals. Custom voltage (380V/415V/440V/60Hz) for global markets.
Factory Direct Supply & High Cost Performance: Direct manufacturer with no middlemen. Support complete production line design, sample testing and full after‑sales service.
Technical Parameters
| Item | Specification |
| Model | 5R4121 |
| Roller Quantity | 5 Pcs |
| Max Feed Size | ≤30mm |
| Fineness | 80‑325 Mesh (Adjustable) |
| Capacity | 8‑15t/h |
| Main Motor Power | 75kW |
| Fan Motor Power | 37kW |
| Analyzer Motor Power | 7.5kW |
| Standard Voltage | 380V/50Hz (Custom 415V/440V/60Hz Available) |
| Total Weight | 12.5 Ton |
| Overall Size | 4500×3800×3900mm |
| Applicable Hardness | Mohs Hardness ≤7 |
| Applicable Moisture | ≤6% |
Applicable Materials & Application Scenarios
✅ Main Applicable Materials (Mohs Hardness ≤7, Moisture ≤6%)
Building Materials: Limestone, Calcite, Marble, Dolomite, Gypsum, Sandstone
Chemical Fillers: Bentonite, Talc, Barite, Kaolin, Feldspar
Other Minerals: Quartz Stone, Fluorite, Bleaching Earth, Diatomite, Pyrophyllite
✅ Application Industries
Building Materials Industry: Mass‑produce limestone powder, gypsum powder, putty powder, cement raw materials and large batch construction fillers.
Chemical Industry: Used as chemical additives, fillers and desiccant raw materials.
Mineral Processing Industry: Deep processing, purification and large volume fine grinding of non‑metallic ores.
Coating & Rubber Industry: High‑purity calcium carbonate & talc powder for paint, rubber and plastic fillers.
Agriculture & Feed Industry: Grind mineral feed additives and soil conditioner raw materials.
Large Scale Projects: Ideal for heavy-duty powder factories & mines in Southeast Asia, Africa, Middle East, etc.
Product Display

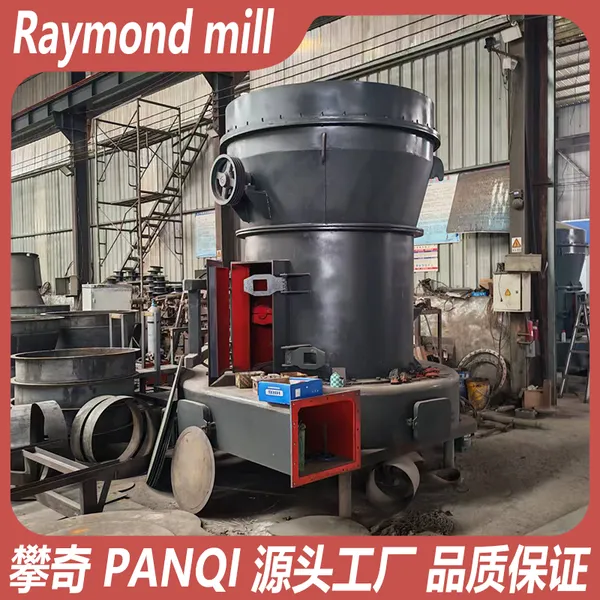

5R4121 Raymond Mill adopts upgraded 5‑roller heavy-duty structure, exquisite workmanship and super stable performance. Thickened reinforced wear‑resistant rollers, rings and shovels greatly extend service life.
Integrated electric control system is easy to operate. Complete supporting equipment forms full‑automatic production line for long time large-scale continuous production.
Real‑machine photos, workshop display and customer site cases provided. Video inspection & factory visit available.
Other Products offered
Q: Do you only supply 5R4121 Raymond Mill?
A: No. We offer full‑series grinding machines including 3R/4R/5R Raymond mills.
Standard Supporting Equipment List
Main Machine: 1 Set 5R4121 Raymond Mill
Classifying System: High‑speed adjustable analyzer for precise fineness control
Air Conveying System: High‑power centrifugal fan for stable circulation grinding
Collecting System: Double cyclone collectors with high powder recovery rate
Dust Removal System: Pulse bag dust collector for eco‑friendly emission
Auxiliary Equipment: Electromagnetic Feeder, Bucket Elevator, Electric Control Cabinet & Pipelines
Spare Parts: Rollers, Rings, Shovels (Optional)
Manufacturer Strength & Certifications
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional mining grinding equipment manufacturer with 12+ years of experience, integrating R&D, production, sales and export.
We own standardized workshops, CNC equipment and professional R&D team. Each machine is strictly tested before delivery.
Certified by ISO9001 with utility patents. Products exported to 30+ countries, well‑recognized by global clients.
Cooperation Advantages
1. Direct factory supply without middlemen, competitive price for bulk orders.
2. Support OEM customization, long‑term agency and exclusive distributor policies.
3. One‑stop service: production line design, site planning and equipment matching.
4. Familiar with export procedures, assist customs clearance & global shipping.
After‑Sales Service
Warranty Policy: 1‑year whole‑machine warranty (excluding wearing parts). Free maintenance for non‑artificial quality issues.
Technical Support: Free installation guidance, commissioning, operation training & lifelong online support.
Spare Parts Supply: Original spare parts in stock with fast global delivery.
Custom Service: Custom voltage, motor brand, capacity and production line solutions.
On‑Site Service: Factory inspection, free material testing & overseas engineer service for large projects.
Delivery Guarantee: In‑stock goods shipped within 48h; customized orders in 7‑15 days. Strict pre‑shipment inspection.
Shipping & Packaging
Packaging: Main machine, motors & electric cabinet wrapped in waterproof film & export‑standard fumigated wooden pallets. Spare parts packed in cartons, anti‑collision, moisture‑proof & rust‑proof.
Shipping: Domestic truck delivery; overseas sea/land/air transport. Full logistics tracking & one‑stop export service.
Delivery Time: In‑stock within 48h; customized within 7‑15 days. Packing list, certificate & manual provided.
Frequently Asked Questions
Q1: What is the hourly capacity of 5R4121 Raymond Mill?
A: Stable 8‑15t/h, much higher than 3R and 4R models, suitable for large-scale heavy powder production.
Q2: Can fineness be adjusted?
A: Yes, 80‑325 mesh adjustable via analyzer speed, screening rate over 99%.
Q3: Can voltage be customized?
A: Yes, support 415V/440V/60Hz for different countries.
Q4: What materials are not suitable?
A: Only for non‑metallic minerals with Mohs ≤7 & moisture ≤6%. Not for hard metal ores or sticky materials.
Q5: Do you provide operation training?
A: Free manuals, video tutorials & online guidance. On‑site training for bulk orders.
Q6: Can it form complete production line?
A: Yes, matched with crusher, elevator, feeder & dust collector for direct mass production.
Purchase Notes
Wholesale, retail & customization available. Bulk order with favorable price.
Quotation is ex‑factory price excluding freight and tax. Consult customer service for details.
Confirm material, fineness, capacity, voltage & site before order. Customized solutions provided.
Brand‑new original machines only, no refurbished ones. Factory inspection welcomed.
Professional 5R4121 Raymond Mill Manufacturer | In Stock | Welcome to Cooperate!
