New Technology Glass Ball Mill ,Silica Sand Ball Mill
China Grinding Ball Mill Grinding Price:
Ball mill grinding is the key equipment that repulverizes crushed materials. It is widely used in manufacture industries, such as cement, silicate, new building materials, refractory materials, fertilizer, and mill run of ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet pulverization for all kinds of ores and other materials.

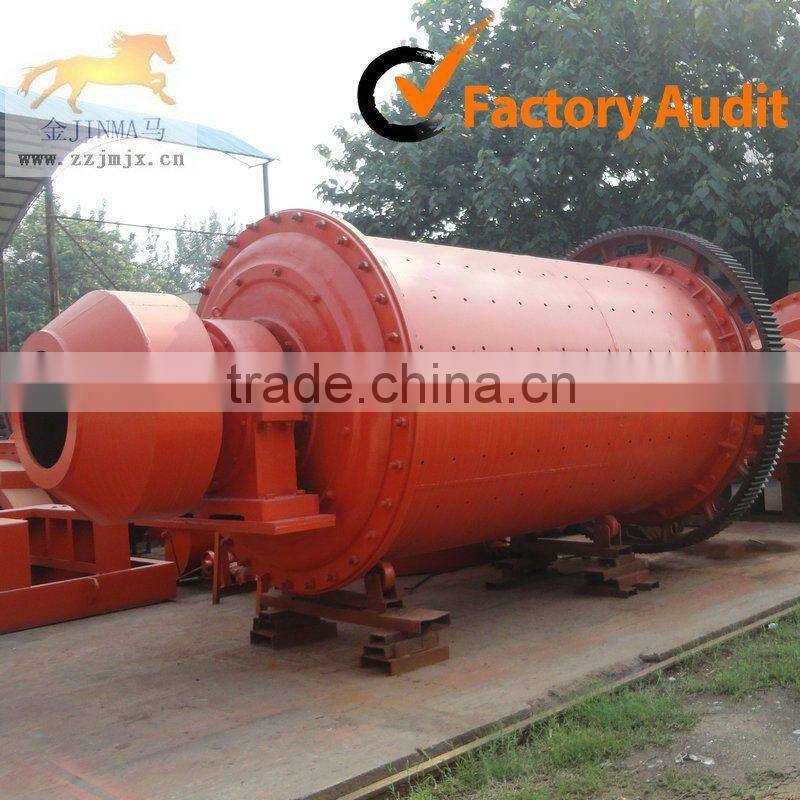

the ball mill produced by our factory
Grinding mill for Glass Working principles
Ball mill is an efficient machine for fine power grinding and key equipment for grinding after the crushing process.There are two ways of ball mill grinding,the dry way and the wet way.It is used to grind many kinds of mineral ores and other materials,or to select mine.Ball mill is also widely used in the manufacturing industries,such as cement,silicate,new building material,refractory material,fertilizer,ferrous metal,nonferrous matal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials
the structure of the ball mill
Grinding mill for glass Structures
The machine is composed by feeding part,discharging part,ratation part and driving part(reducer,small driving gear,electric motor and electric control)
Grinding mill for glass Technical parameters
Model |
Cyclinder speed( r/min ) |
Ball loading (t) |
Feed size (mm) |
Discharge size(mm) |
output( t/h ) |
Motor power (kw) |
Weight (t) |
900×2100 |
36 ~ 38 |
1.5 |
0-15 |
0.075-0.8 |
0.5-1.3 |
18.5 |
4.9 |
1200×2800 |
36 |
3.5 |
0-20 |
0.075-0.8 |
1.2-3.7 |
37 |
12.5 |
1500×3500 |
29.7 |
7.5 |
0-20 |
0.075-0.8 |
3.3-8.8 |
75 |
16.5 |
1830×3500 |
25.4 |
13 |
0-25 |
0.075-0.8 |
4-8 |
130 |
30 |
2100×3600 |
23.7 |
18 |
0-25 |
0.075-0.8 |
4.5-33 |
180 |
37 |
2700×3600 |
20.7 |
40 |
0-25 |
0.075-0.8 |
12-75 |
400 |
86 |
Note: This specification is just for reference, any changes are subject to the products.
the gear of the ball mill
Discharge port of grinding mill
the ball mill liner

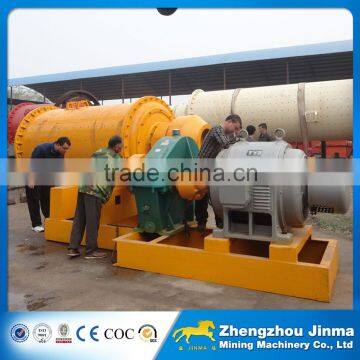

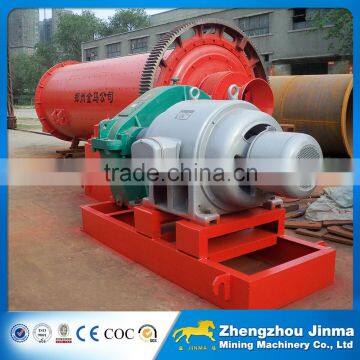

the transmission part
the locai use of the tube ball mill
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
the clients
Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
6. Offer spares for the equipment within 10 years
the certificate
Export Country
Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.
the delivery of the ball mill
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
4.Can you give me a solution and quotation?
Of course, to provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Notes:Our company with the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation . Believe us and choose us.We will give you the most suitable price with full specification.
