Home > Products > Grinding Mill > Ceramic Batch Ball Mill Machine For Quartz Intermittent Type
Ceramic Batch Ball Mill Machine For Quartz Intermittent Type
- 100 Set / Sets per Month
- Qingdao Tianjin Shanghai or as requested
- T/T L/C D/P D/A Credit Card PayPal
-
Wire Rod Rolling Mill From Jinma
-
Save 30% Electricity Super Energy Saving Ore Grinding Ball Mill Mchine
-
Lime Stone Planetary Ball Grinding Mill From China Gold Supplier
-
China Top Manufacture Small Ball Mill Price For Sale
-
TCQ Series Small Batch Ball Mill Prices
-
forged steel balls for ball mill from Jinma in China
Product Details
| Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
| Power(W): | 2.2-132kw | Capacity(t/h): | depend on the model | Place of Origin: | Henan, China |
| Brand Name: | Jinma | Model Number: | TCQ Batch Ball Mil | Dimension(L*W*H): | depend on the model |
| Weight: | 800-31500kg | Certification: | ISO9001:2008 | Warranty: | One Year Excluding Wearing Parts |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export standard packing or nude packing. Large parts: Plstic sheeting. Small parts: Wooden box. Container
Product Description
Batch ball mill
- Batch ball mill with 2 years warranty
-ISO9001:2008,BV,SGS
-Competitive price
-30 years production experience
Batch ball mill feature
Batch type ball mill is an efficient tool for fine powder grinding. Ball mill is often used for grinding silica sand. The batch type ball mill is used to grind many kinds of mine and other materials, or to select the mine. batch type ball mill is widely used in building material, chemicalindustry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine.
Batch ball mill advantages
1) Easy and safe operation
2) Stable performance
3) Even product size
4) Low energy consumption
5 Low invest, high return
the batch ball mill produced by our factory
Working Principle OF Batch Ball Mill
Our ball mill is of horizontal, cylindrical and tubular structure. It comes with two cabins and is a grate ball mill. When the cylinder rotates, the centrifugal force produced causes the steel balls to impact and grind the materials in the ball mill. The materials are then lead to the second cabin for further milling until they turn into powders and are discharged from the outle
Specifications of batch ball mill
Model | Volume (m³) | material loading per time(kg) | material: grinding media: water | rotation speed (r/min) | Power (kw) | Weight (T) |
TCQ-750×900 | 0.4 | 100 | 1:(1.5-1.8):1 | 46 | 2.2 | 1.1 |
TCQ-900×1050 | 0.67 | 200 | 1:(1.5-1.8):1 | 36 | 3 | 1.5 |
TCQ-940×1200 | 0.83 | 300 | 1:(1.5-1.8):1 | 35 | 4 | 1.8 |
TCQ-1220×1230 | 1.43 | 500 | 1:(1.5-1.8):1 | 30 | 5.5 | 2.2 |
TCQ-1600×1700 | 3.4 | 1000 | 1:1.5:0.8 | 26 | 11 | 2.6 |
TCQ-1800×2100 | 5.3 | 1500 | 1:1.5:0.8 | 23 | 15 | 3.8 |
TCQ-1900×2100 | 6 | 2000 | 1:1.5:0.8 | 22 | 18.5 | 4.6 |
TCQ-2076×2600 | 8.8 | 3000 | 1:1.5:0.8 | 22 | 30 | 6.5 |
TCQ-2500×2900 | 14.2 | 5000 | 1:1.5:0.8 | 17 | 37 | 11 |
TCQ-2800×3000 | 18.5 | 8000 | 1:1.5:0.8 | 16 | 55 | 15 |
TCQ-2800×3400 | 21 | 10000 | 1:1.5:0.8 | 16 | 55 | 15.6 |
TCQ-3200×4000 | 32.2 | 15000 | 1:1.5:0.8 | 13 | 90 | 23 |
TCQ-3200×5140 | 41.3 | 20000 | 1:1.5:0.8 | 13 | 110 | 25 |
TCQ-3400×6350 | 57.6 | 30000 | 1:1.5:0.8 | 12 | 132 | 36 |
TCQ-3600×7000 | 71.2 | 40000 | 1:1.5:0.8 | 12 | 132 | 38 |

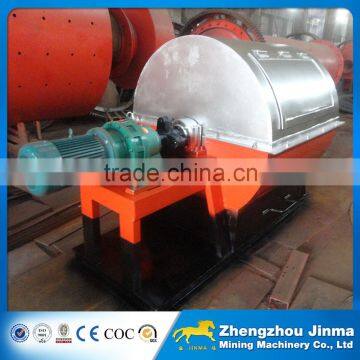

the batch ball mill show
Working site of batch ball mill
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
the shippment of the batch ball mill
We can enable them to get rich and generous returns on their investments:
1 Select equipment model;
2 Design and manufacture products according to clients' special requirement;
3 Train technical personnel for clients.
Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1 Pre-check and accept products ahead of delivery;
2 help clients to draft solving plans.
After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
Technological support
Jinma insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
our clients visit our factory
Advantages of batch ball mill
Our main products jaw crusher, hammer crusher, PCZ heavy hammer crusher, DPC fine crusher, the PXJ third create sand machine, PCH ring hammer crusher, the PC hammer crusher and so on more than 30 varieties of broken machinery.
1) 38 years year of production experience
2) Processional Research and Development team
3) Strict quality control
4) We provide competitive prices, reliable quality products and swift delivery
the certificate of our company
Q: Can I visit your factory ?
A: Of course, There are many domestic and international clients visit our factory every year
Q: How is your quality of the machine ?
A: Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
Q: How about your price ?
A: Yes, we are factory and be able to give you the lowest price than market one, and we have a principal that “ for saving time and absolutely honest business attitude,we quote you as low as possible, and discount can be given according to quantity”.
Q: Do you provide after-sales services ?
A: Sure, we have a professional technical team to slove your problem timely and thoroughly.
Q: Do you have other related products ?
A: Yes, we manufacture all types of crusher, sand making machine, ball mill, magnetic separator, flotation machine, ect
If you want to know more about the product ,please contact me ,i am cherry fan
TEL:+86-371-67511065
FAX:+86-371-67512579
SKYPE:cherry74120
Mobile Phone :+86-18239673197
WEB:
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
