Large Capacity Stone Grinding Machine Grinding Ball Mill
- 50 Set / Sets per Month
- qingdao shanghai tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Limestone batch ball mill Limestone portable ball mill
- Ceramic Batch Ball Mill Machine For Quartz Intermittent Type
- Wire Rod Rolling Mill From Jinma
- Save 30% Electricity Super Energy Saving Ore Grinding Ball Mill Mchine
- Lime Stone Planetary Ball Grinding Mill From China Gold Supplier
- China Top Manufacture Small Ball Mill Price For Sale
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 18.5-1600kw | Capacity(t/h): | 0.65-46t/h | Place of Origin: | Henan, China |
Brand Name: | jinma | Model Number: | MQG Ball Mill | Dimension(L*W*H): | depend on the model |
Weight: | 3.-218T | Certification: | ISO, SGS, BV, CE | Warranty: | 2 years(wearing parts excluded) |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
seaworthy standard packing or as required for 2015 new CE ISO SGS certificated ball grinding mill machine
Product Description
Large Capacity Stone Grinding Machine Grinding Ball Mill
Ball Mill Description:
The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
Ball Mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to acertain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

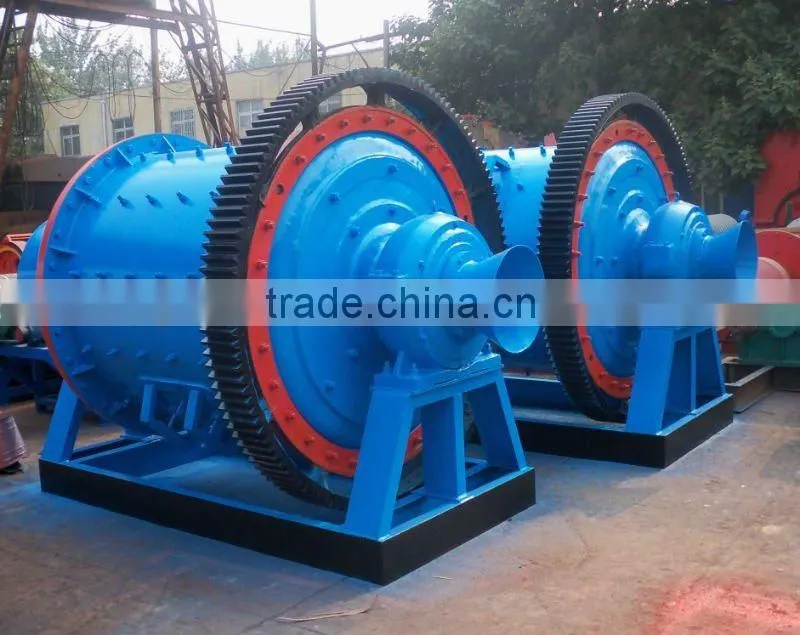

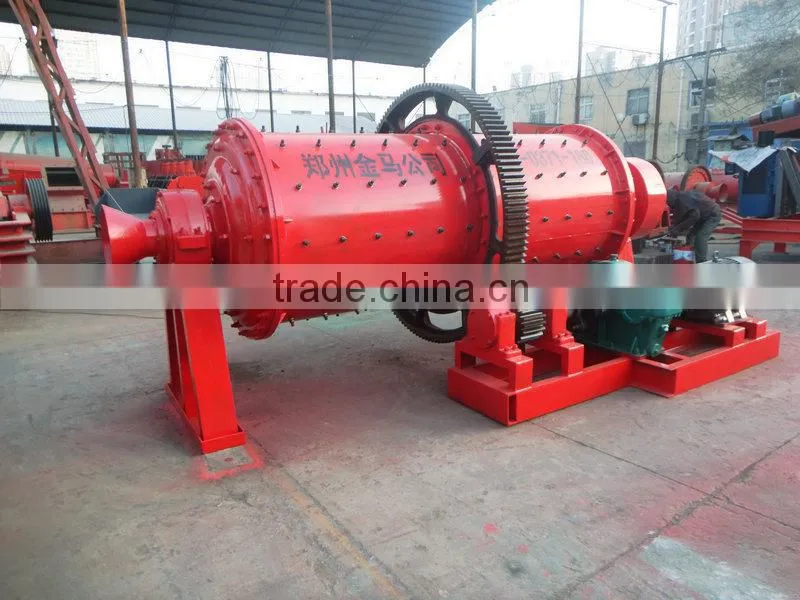

the ball mil produced by our factory
Features of Ball Mill:
(1). Ball mill is easy maintenance and operation;
(2). Big crushing ratio, uniform end product size;
(3). Simple structure;
(4). Low operating cost.
Ball Mill Technical Parameters:
Model | Rotation speed (r/min) | Grinding media loading (t) | Feed size (mm) | Discharge size(mm) | Capacity (t/h) | Power (KW) | Weight (T) |
Φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900×3000 | 38 | 2.51 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
Φ1200×3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
Φ1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
Φ1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
Φ1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6.5 | 90-110 | 21 |
Φ1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 110-132 | 24.7 |
Φ1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 132-180 | 28 |
Φ1830×6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Φ1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 210-245 | 36 |
Φ2200×5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10-22 | 370 | 48 |
Φ2200×6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 50 |
Φ2200×7500 | 21 | 33 | ≤25 | 0.074-0.4 | 15-29 | 475 | 56 |
Φ2400×7000 | 21 | 39 | ≤25 | 0.074-0.4 | 16-33 | 475 | 69 |
Φ2400×11000 | 21 | 51.5 | ≤25 | 0.04-0.08 | 16-35 | 630 | 99 |
Φ2700×3600 | 21 | 39 | ≤25 | 0.074-0.4 | 16-29 | 475 | 74 |
Φ2700×4500 | 21 | 43.5 | ≤25 | 0.074-0.4 | 20-35 | 500 | 80 |
Φ3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 25-40 | 800 | 137 |
the structure of the ball mill
NOTE: We can make the ball mill according to your requirments.
the motor of the ball mill
the ball media
the gear of the ball mill
Discharge port of grinding mill
the transmission parts

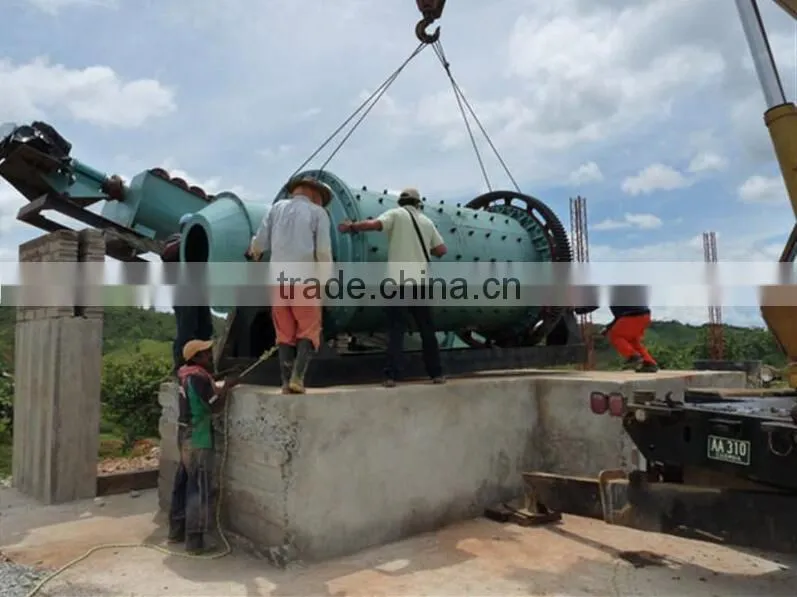

the locai use of the ball mill
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide two-year warranty to make sure your machine runs consistently.
We always offering lifelong services and provide spare parts for a long term.
the clients
Support & service from Zhengzhou Jinma Mining Machinery Co., Ltd
1. Jinma provide the design, process diagram and foundation drawings according to clients' request.
2. Clients are welcome to inspect the equipment when the equipment are ready to delivery.
3. Equipment will be delivered with English Manuals and technical drawings
4. Engineers available to service machinery overseas, to make the layout design, foundations, guide the installation, commissioning run test, training workers, etc.
5.The equipment ordered from jinma will be guaranteed within 2 years since the day of purchasing if the problem is due to the equipment’s quality. If there is big quality problem with the equipment, the seller will discuss with the buyer and offer proposals to solve the problems within 72 hours since the notice from buyer.
the certificate
Export Country
Mexico, Australia, Ghana, Qatar, Tajikistan, Azerbaijan, Vietnam, Kazakhstan, Mongolia, Ecuador, Iran, Pakistan, the Middle East and other countries and areas.
the delivery of the ball mill
1.How long is the delivery time of your equipment?
The delivery time is within 30 working days. But when the project is very big and the customers have special requirement on the equipment, the delivery could be extended.
2.How long is the equipment warranty period?
Our equipment warranty period is 1 year. Wearing parts and problem coursed by worker’s wrong operation are not included.
3.Can you provide wearing parts?
We have two casting factories that specialize in produce wearing parts for our clients. If your equipment are not manufactured by our company, please provide us the wearing parts drawing.
Notes:Our company with the goal of "The excellent, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win -win cooperation . Believe us and choose us.We will give you the most suitable price with full specification.
If you want to know more about the product ,please contact me ,i am cherry fan
TEL:+86-371-67511065
FAX:+86-371-67512579
SKYPE:cherry74120
Mobile Phone :+86-18239673197
WEB:
Company Profile
Zhengzhou Jinma Mining Machinery Co., Ltd. was established in 1976 subordinated to China CMIIC Engineering & Construction Corporation (CMIIC), the company specializes in manufacturing large and medium-size crushers, sand making machine, ball mill, magnetic separator, flotation machine, mineral processing equipments, and related machines. Located in No. 8 Dianchang Road, Zhengzhou and covers an area of 3500 square meters, the company's total annual sales reached one hundred and fifty million RMB, with annual export sales about six million USD.
Crushing equipments includes jaw crusher, impact crusher, PCZ single-stage hammer crusher, DPC single-stage fine crusher, PXJ fine crusher (Third generation sand making machine), PC hammer crusher, PCH ring hammer crusher, PCL vertical composite crusher, and roller crusher. These equipments are applicable to construction, metallurgy, building material, mineral processing, coal mine, etc.
Mineral processing equipments includes MQG ball mill, MQS ball mill, GZMY energy-saving ball mill, MQGZ super energy-saving ball mill, MQGT super energy-saving ball mill, MQGMC super energy-saving ball mill, spiral classifier, flotation machines, magnetic separator, rotary dryer, etc. All the equipments are applicable to the beneficiation of iron, copper, gold, silver, lead, zinc, tungsten, molybdenum, manganese and other non-ferrous concentrating.
The company has passed ISO9001: 2008 quality management system, CE certification, SGS and BUREAU VERITAS factory audit. It has independent Imp. & Exp. right, R&D center, production base, QC, Marketing and after-sales service department.
While expanding domestic market constantly, the products are exported to over 70 countries like Chile, Peru, Costa Rica, USA, Vietnam, Indonesia, Malaysia, India, Philippines, Pakistan, Iran, Russia, Kazakhstan, Azerbaijan, Turkey, North Korea, South Africa, Tanzania, Ghana, etc.
With the goal of "The excellence, the better" and "Satisfaction from customers" as the eternal pursuit, we sincerely welcome clients from all over the world to come for a visit, and establish long term win-win cooperation.
