Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Jinma Brand Crusher Run With Low Consumption

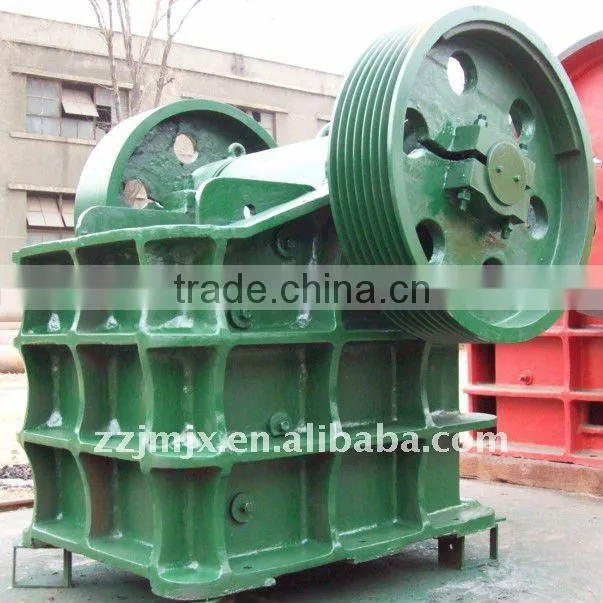

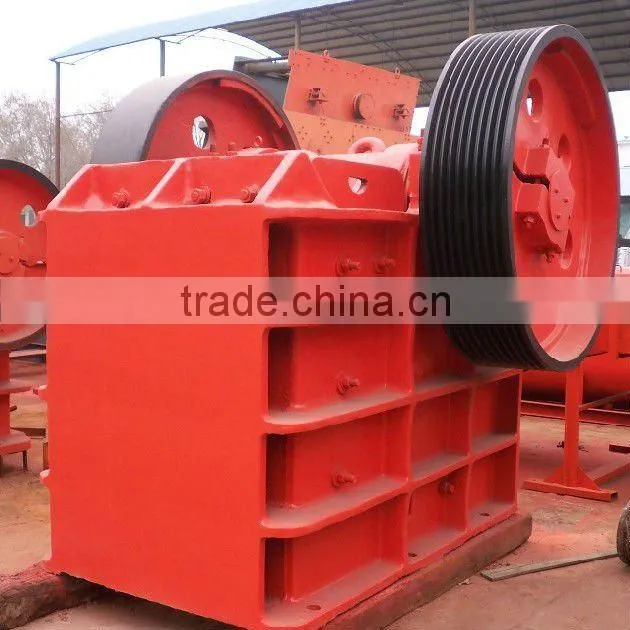

Jinma Brand Crusher Run With Low Consumption

Name: Jinma Brand Crusher Run With Low Consumption
Brand: JINMA
SKU: 104343883

US$ 1,500 - 120,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Jaw Crusher

Capacity(t/h):

1-500 TPH

Contact Supplier Request Quote Chat Now

Zhengzhou Jinma Mining Machinery Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Qingdao/shanghai or as required

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Jaw Crusher

Capacity(t/h) 1-500 TPH

Place of Origin Henan, China

Brand Name JINMA

Model Number PEX, PE series

Application Stone production, gravel production, sandstone production, etc.

Specifications

Crusher Run
1.Reasonable and multiple match
2.Easy to setup,operate
3.Best aftersale service
4.High reliability jaw crusher

Crusher working principle:

The jaw crusher squeezes rock between two surfaces, one of which opens and closes like a jaw. Rock enters the jaw crusher from the top. Pieces of rock that is larger than the opening at the bottom of the jaw lodge between the two metal plates of the jaw.

Characteristics of crusher run:

The characteristics of jaw crusher, jaw crusher in the use of building materials and mines are frequent, mainly because it is the complete model, performance is also very stable, production is also very large, so we evaluated this product are high, jaw crusher in mining, building materials and infrastructure sectors is mainly used for crushing machine and the broken machine. According to the discharge port width size, divided into large, medium and small three, to more than 600MM width of entrance and exit for the mainframe, to the discharge port 300-600MM width for medium-sized machine, to the discharge port is smaller than the width of the 300MM the minicomputer. Jaw Crusher is partly the work of two jaw plates, one fixed jaw plate (fixed jaw), vertical (or the top of the slightly extrovert) fixed to the body before the wall, and the other is the active jaw plate (moving jaw), location tilt, with the fixed jaw plate under the formation of small, big crushing chamber (the working chamber.) Activities against the fixed jaw jaw board to do the periodic reciprocating motion, sometimes separately, sometimes close. Separately, the material into the crushing chamber, finished unloading from the bottom; close, so that jaw plate mounted between the two materials are extruded, the role of bending and splitting broken.

Crusher technical parameters:

Model	Max feed size (mm)	Discharge opening (mm)	Capacity (TPH)	Power (KW)		Mainshaft speed(r/min)	Weight (T)
PEF-150×250	125	10-40	1-3	Y2-132S-4	5.5	285	0.7
PEF-200×300	180	20-70	2-8	Y2-160M-4	11	285	0.8
PEF-250×400	210	20-80	4-14	Y2-180L-6	15	310	2.8
PEF-400×600	350	40-160	20-120	Y2-250M-8	30	300	6.5
PEF-500×750	425	50-100	40-110	Y2-280M-6	55	275	11.3
PEF-600×900	480	72-200	56-192	JR117-8	75	255	17.6
PEF-750×1060	630	80-200	100-250	JR117-8	90	250	29
PEF-900×1200	750	95-200	120-280	JR117-8	110	250	50
PEF1000×1200	850	110-260	180-340	JR117-8	130	200	53
PEF1200×1500	1020	150-300	300-500	JR117-8	160	180	101
PEX-150×750	120	8-25	10-40	Y2-180L-6	15	300	3.5
PEX-250×750	210	12-35	15-50	Y2-280S-8	30	300	5.5
PEX-250×1000	210	12-50	30-95	Y2-250M-8	37	300	6.5
PEX-250×1200	210	12-50	40-100	J2-280M-8	37	300	8.8
PEX-250×1200	210	12-70	40-100	J2-280M-8	37	300	8.8
PEX-350×750	300	15-50	20-50	Y2-315M-8	30	250	6.5
PEX-300×1300	250	20-90	45-130	Y225M-6	75	250	11
