Specifications

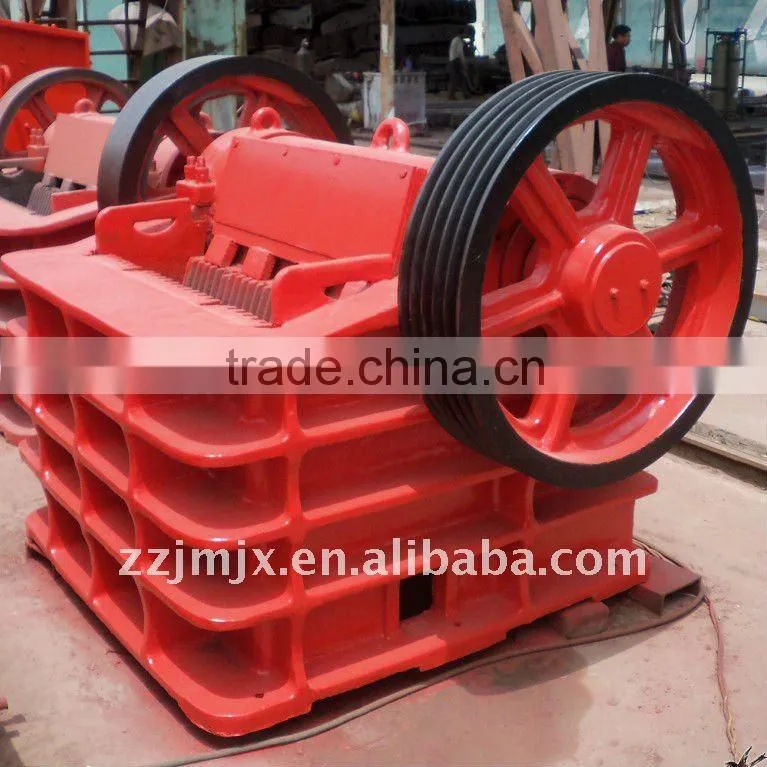

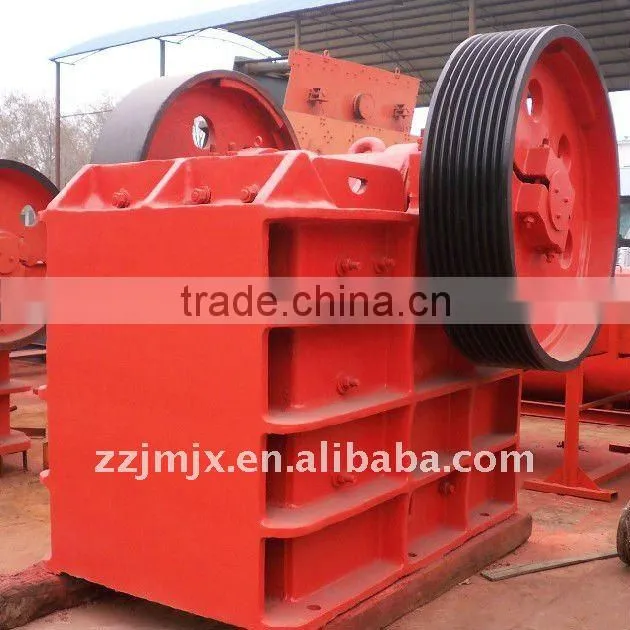

PE Series Mining Machinery1.simple structure
2.high crushing ratio
3.stable operation
4.low operation cost
Jinma Jaw Crusher series are based on years' experience and technology development. The continuous improvement and refinement has made them the preferred jaw crusher for professionals and our customers. They can meet most crushing requirements in primary and secondary crushing, and the largest compression resistance of the material is 320MPa. This series are widely used in stone mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.
Working Principle of Jaw Crusher:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Characteristics of Jaw Crusher:
-High crushing ratio
-Even product granularity
-Simple structure
-Wide ranges of choices
-Reliable working condition
-Convenient maintenance.
crusher technical parameters
|
Model
|
Max feed size (mm) |
Discharge Size(mm) |
Capacity |
Power (KW) |
mainshaft Speed(r/min) |
Weight (T) |
|
PEF150×250 |
125 |
10-40 |
1-3 |
Y2-132S-4 |
5.5 |
285 |
0.7 |
PEF200×300 |
180 |
20-70 |
2-8 |
Y2-160M-4 |
11 |
285 |
0.8 |
PEF-250×400 |
210 |
20-80 |
4-14 |
Y2-180L-6 |
15 |
310 |
2.8 |
PEF-400×600 |
350 |
40-160 |
20-120 |
Y2-250M-8 |
30 |
300 |
6.5 |
PEF500×750 |
425 |
50-100 |
40-110 |
Y2-280M-6 |
55 |
275 |
11.3 |
PEF-600×900 |
480 |
72-200 |
56-192 |
JR117-8 |
75 |
255 |
17.6 |
PEF750×1060 |
630 |
80-200 |
100-250 |
JR117-8 |
90 |
250 |
29 |
PEF900×1200 |
750 |
95-200 |
120-280 |
JR117-8 |
110 |
250 |
50 |
PEF1000×1200 |
850 |
110-260 |
180-340 |
JR117-8 |
130 |
200 |
53 |
PEF1200×1500 |
1020 |
150-300 |
300-500 |
JR117-8 |
160 |
180 |
101 |
PEX-150×750 |
120 |
8-25 |
10-40 |
Y2-180L-6 |
15 |
300 |
3.5 |
PEX-250×750 |
210 |
12-35 |
15-50 |
Y2-280S-8 |
30 |
300 |
5.5 |
PEX-250×1000 |
210 |
12-50 |
30-95 |
Y2-250M-8 |
37 |
300 |
6.5 |
PEX-250×1200 |
210 |
12-50 |
40-100 |
J2-280M-8 |
37 |
300 |
8.8 |
12-70 | |||||||
PEX-350×750 |
300 |
15-50 |
20-50 |
Y2-315M-8 |
30 |
250 |
6.5 |
PEX-300×1300 |
250 |
20-90 |
45-130 |
Y225M-6 |
75 |
250 |
11 |
For further details, please feel free to contact
Tel: 86-371-67511057 Mobile: 86-371-13523521812
Fax: 86-371-6751257
