Specifications
Mining machine35 years experience
The best mining crusher for breaking stone
China top 10 mining machine

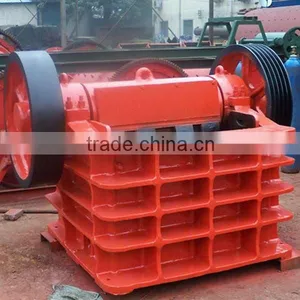

Mining machine Description
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
The motor transmits power through belt, drives the moving jaw do periodic motion to
the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Mining machine technical parameters:
|
Model
|
Max feed size (mm) |
Discharge opening (mm) |
Capacity |
Power (KW) |
Mainshaft speed(r/min) |
Weight (T) |
|
PEF-150×250 |
125 |
10-40 |
1-3 |
Y2-132S-4 |
5.5 |
285 |
0.7 |
PEF-200×300 |
180 |
20-70 |
2-8 |
Y2-160M-4 |
11 |
285 |
0.8 |
PEF-250×400 |
210 |
20-80 |
4-14 |
Y2-180L-6 |
15 |
310 |
2.8 |
PEF-400×600 |
350 |
40-160 |
20-120 |
Y2-250M-8 |
30 |
300 |
6.5 |
PEF-500×750 |
425 |
50-100 |
40-110 |
Y2-280M-6 |
55 |
275 |
11.3 |
PEF-600×900 |
480 |
72-200 |
56-192 |
JR117-8 |
75 |
255 |
17.6 |
PEF-750×1060 |
630 |
80-200 |
100-250 |
JR117-8 |
90 |
250 |
29 |
PEF-900×1200 |
750 |
95-200 |
120-280 |
JR117-8 |
110 |
250 |
50 |
PEF1000×1200 |
850 |
110-260 |
180-340 |
JR117-8 |
130 |
200 |
53 |
PEF1200×1500 |
1020 |
150-300 |
300-500 |
JR117-8 |
160 |
180 |
101 |
PEX-150×750 |
120 |
8-25 |
10-40 |
Y2-180L-6 |
15 |
300 |
3.5 |
PEX-250×750 |
210 |
12-35 |
15-50 |
Y2-280S-8 |
30 |
300 |
5.5 |
PEX-250×1000 |
210 |
12-50 |
30-95 |
Y2-250M-8 |
37 |
300 |
6.5 |
PEX-250×1200 |
210 |
12-50 |
40-100 |
J2-280M-8 |
37 |
300 |
8.8 |
12-70 | |||||||
PEX-350×750 |
300 |
15-50 |
20-50 |
Y2-315M-8 |
30 |
250 |
6.5 |
PEX-300×1300 |
250 |
20-90 |
45-130 |
Y225M-6 |
75 |
250 |
11 |
Note: This specification is just for reference, any changes are subject to the products.
For further details, please feel free to contact
Tracy Xie
Zhengzhou Jinma Mining Machinery Co., Ltd.
Tel: 86-371-67511065 Fax: 0086-371-67512579
Mobile:86-150-382-13376
